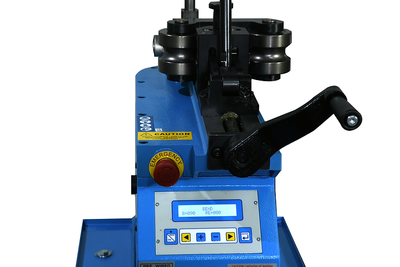

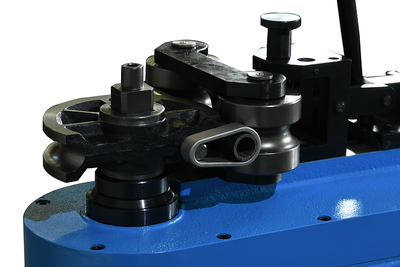

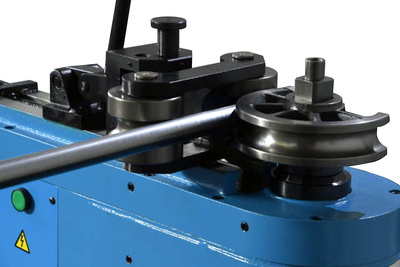

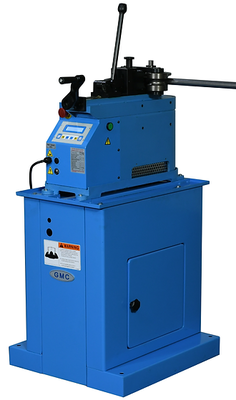

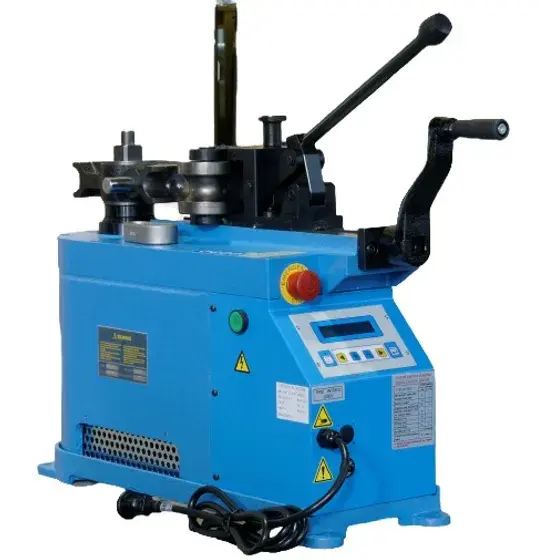

NEW GMC DB-60A

Equipped With
NEW GMC MODEL DB-60A HYDRAULIC ROTARY DRAW BENDER
STANDARD FEATURES
Taiwan Machine
ISO 9001 certified
NC-control for bending angle adjustment
LED degree indicator with automatic stop programming, to get as true reading of bending degree.
Up to 50 jobs memory; each job program contains 9 steps
Counter roller holder comes standard with quick adjustment
This easy to use hydraulic tube draw bender has an incredible capacity of 2” tube with .12” wall thickness and 1-1/2” schedule# 40 pipe
1-1/2 HP motor, 220VAC, Single Phase

Quick tooling changes
With deluxe stand
One year warranty for parts
Specifications
  GMC DB-60A
Capacity:
Minimum CLR
Minimum OD
Solid Rod, mild steel
Round Tube, mild steel (wall thickness)
Round Pipe, mild steel, schedule 40
Round Tube, SS steel (wall thickness)
Round Pipe, SS steel, schedule 40
Aluminum round Tube (wall thickness)
             ½”
            ¼”
            1”
            2” (.125”)
            1-1/2”
     1-1/2”(.125”)
         1-1/4”
        2” (3/16”)
Maximum centerline Radius
6-1/2” CRL
LED programming
   50 job memory
Main motor
1.5HP, 220V,1phase
Weight
         327 LBS
Machine dimensions, LxWxH
      27” x 9” x 51”
