Equipped With

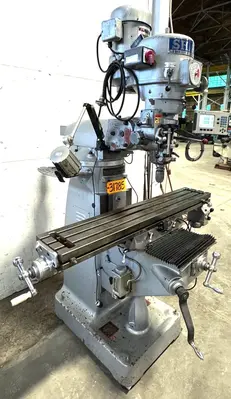

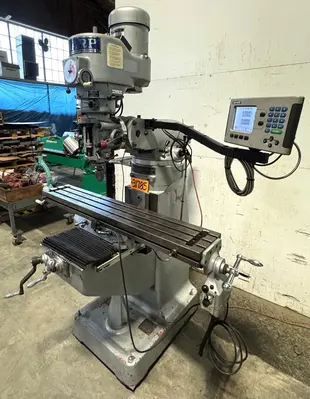

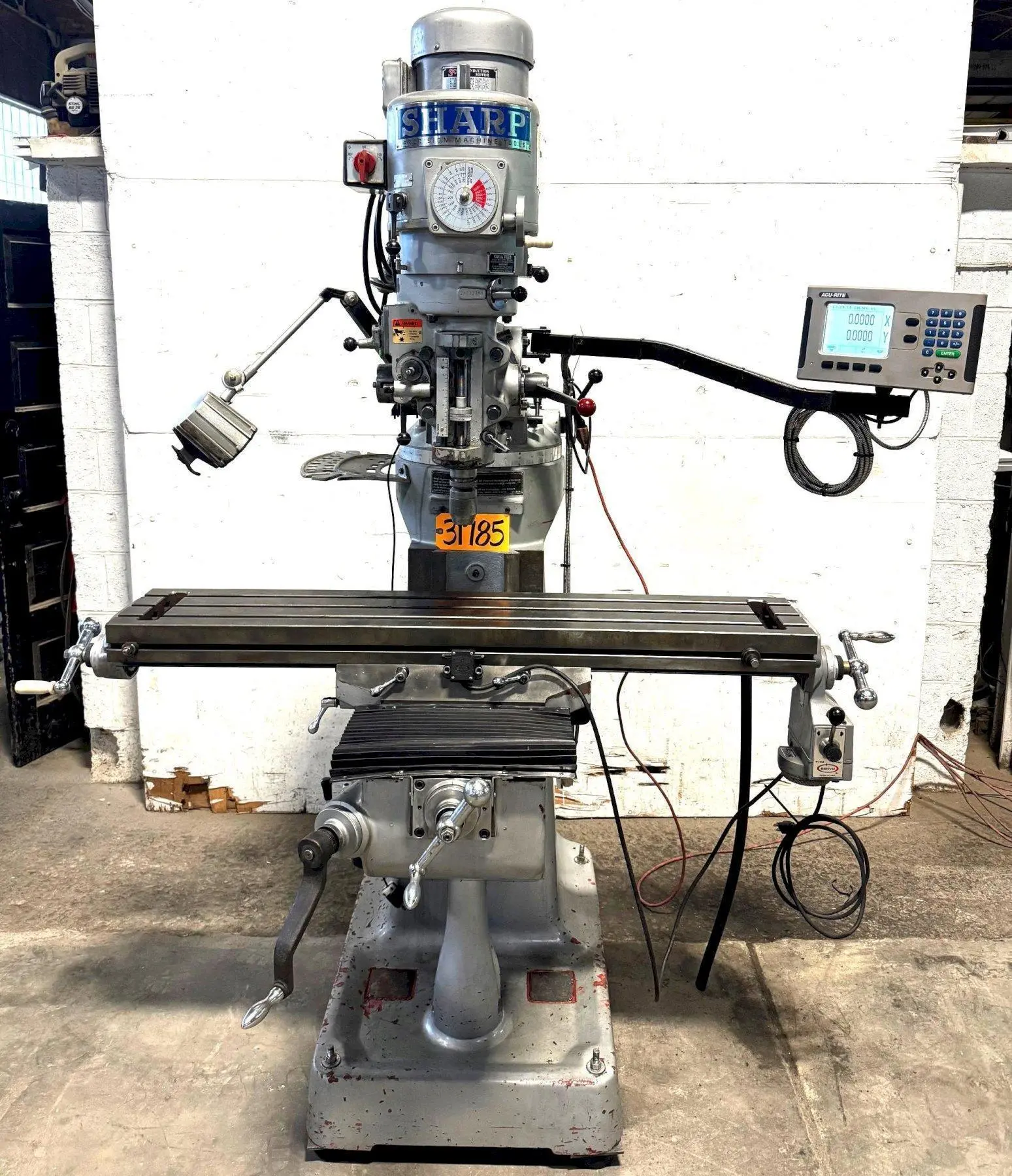

SHARP LMV-50 VERTICAL KNEE MILL
NEW 2014
GENERAL SPECIFICATIONS
Table Size: 9" x 50"
Longitudinal Travel: 37"
Cross Travel: 12"
Knee Travel: 16"
Quill Travel: 5"
Ram Travel: 12"
Spindle Taper: R-8
Spindle Speeds, Variable: 60 - 4500 RPM
Spindle Feeds: (3) .0015", .003", .006"
EQUIPPED WITH
3 HP Spindle Motor
Acu-Rite Two Axis Digital Readout
Servo Type 140 X-Axis Power Feed
One-Shot Lubrication
Work Light
Approximate Weight: 2500 Lbs.
