NEW 2025 GMC DB-60A

Equipped With

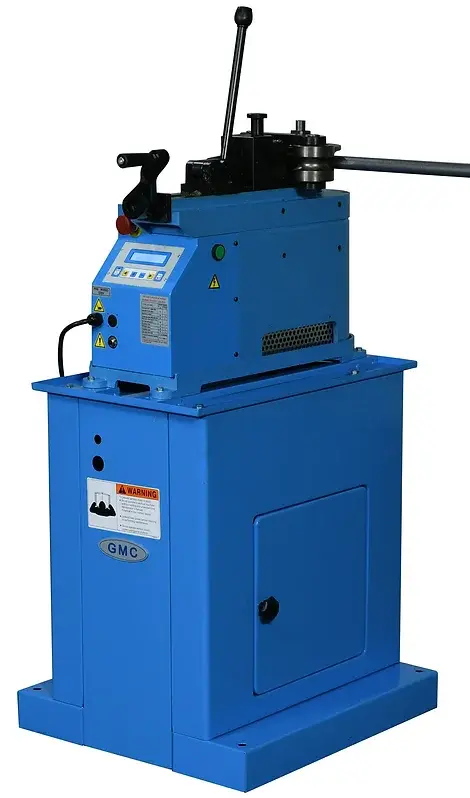

NEW GMC DB-60A 2" TUBE/ 1-1/2" PIPE DRAW BENDER
Standard Features:
·       Taiwan Machine
·       ISO 9001 certified
·       This easy to use hydraulic tube draw bender has an incredible capacity
of 2” tube with .12” wall thickness and 1-1/2” schedule# 40 pipe
·       1-1/2 HP Heavy Duty AC main motor, 220V, 1 phase
·       LED degree indicator with automatic stop programming,
Optional Die Sets:
Each Die Set includes: 2 rolls, 1 former, and 1 ring

1” Tube die set # DB-60A-1T…………...………… $495.00
1-1/4” Tube die set # DB-60A-114T ……………… $795.00
1-1/2” Tube die set # DB-60A-112T ……………… $795.00
2” Tube die set # DB-60A-2T …………………….. $1,395.00
1” Pipe die set # DB-60A-1P ……………………… $495.00

1-1/2” Pipe die set # DB-60A-112P ………………. $795.00
to get as true reading of bending degree.
·       50 jobs memory, each job program contains 9 steps
·       Quick tooling changes
·       With deluxe stand
·       One year warranty for parts
Specifications
  GMC DB-60A
Capacity:
Minimum CLR
Minimum OD
Solid Rod, mild steel
Round Tube, mild steel ( wall thickness )
Round Pipe, mild steel, schedule 40
Round Tube, SS steel ( wall thickness )
Round Pipe, SS steel, schedule 40
Aluminum round Tube ( wall thickness )

            ½”
            ¼”
            1”
            2” (.125”)
            1-1/2”
     1-1/2”(.125”)
         1-1/4”
        2” (3/16”)
Maximum centerline Radius
        8-1/2”
LED programming
   50 job memory
Main motor
1.5HP, 220V,1phase
Weight
         327 LBS
Machine dimensions, LxWxH
      27”x9”x51”
