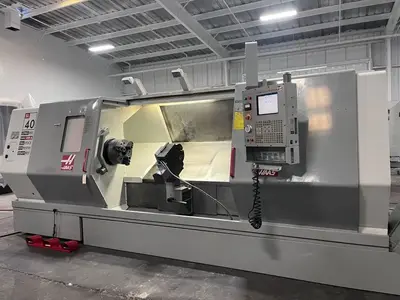

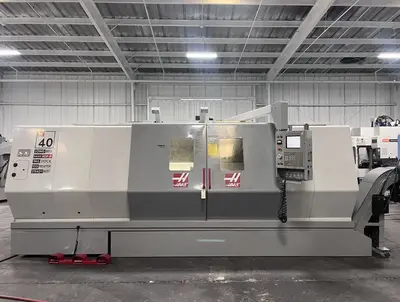

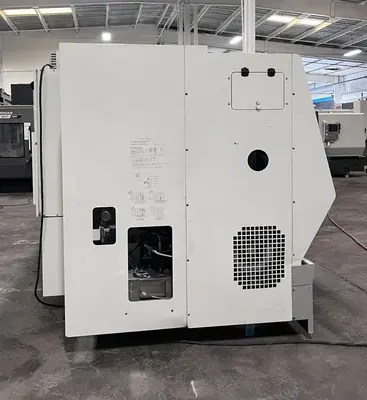

USED 2003 HAAS SL-40L

Equipped With

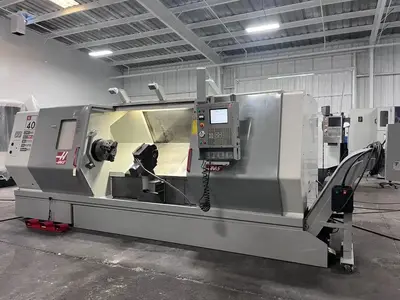

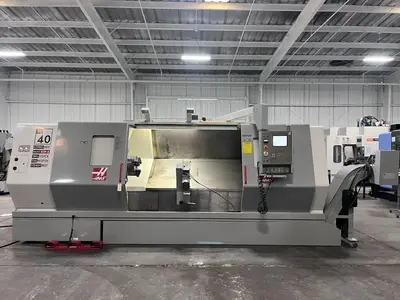

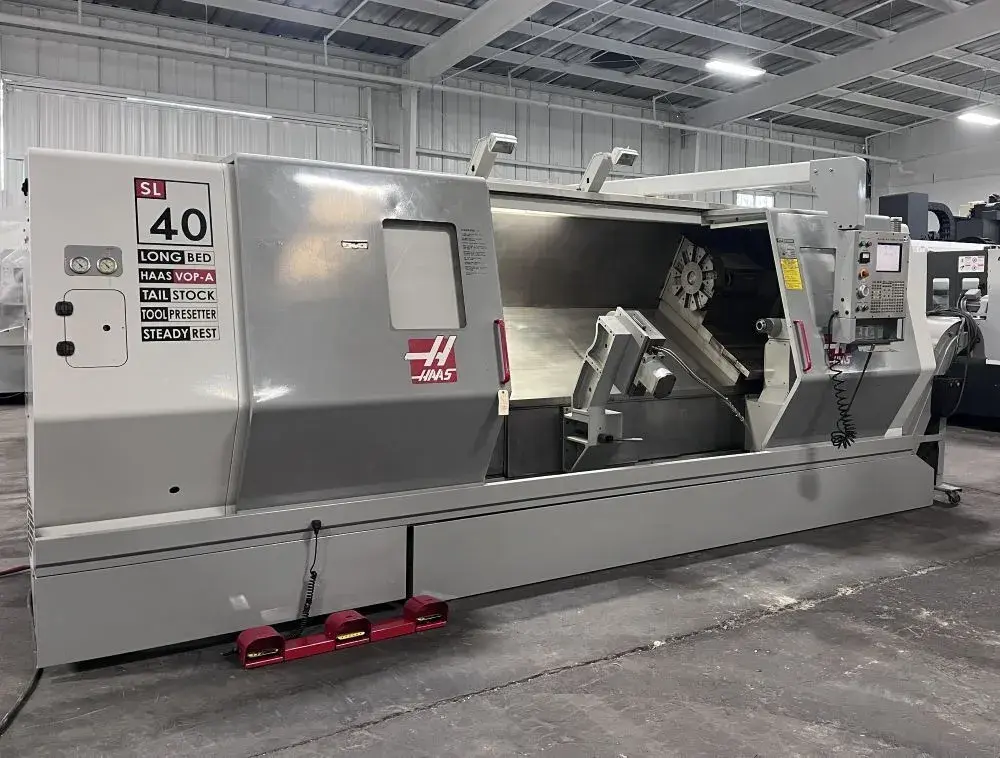

HAAS SL-40L CNC TURNING CENTER - LONG BED LATHE
NEW 2003
EQUIPPED WITH:

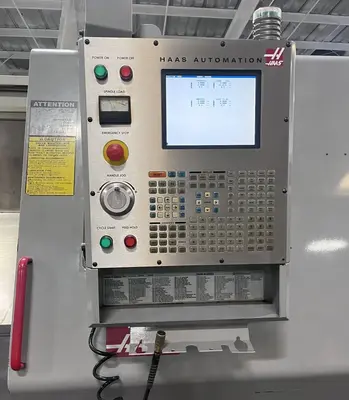

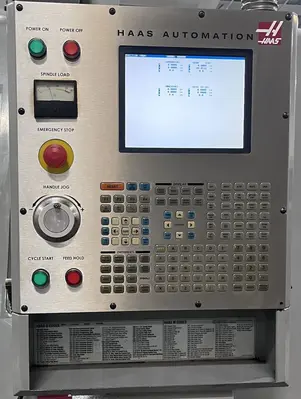

Haas CNC Control
80″ Long Bed
15″  3-Jaw Chuck
A2-8 Gear Head Spindle

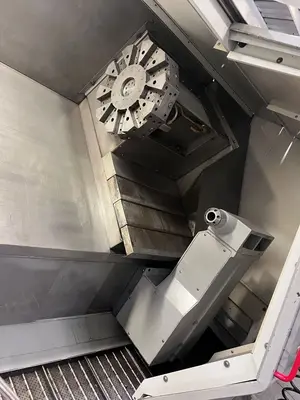

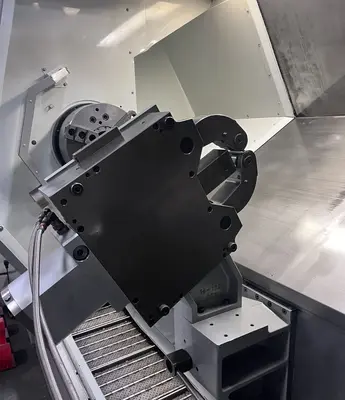

10 Station Automatic Turret

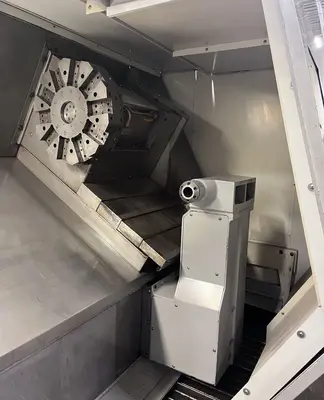

Programmable Tailstock
Remote Jog Handle
Coolant System
Automatic Lubrication system
Foot Switches
SPECIFICATIONS:
Capacity:
Max Turning Diameter : 25.5″
Max Swing Over Bed : 34.5″
Max Swing Over Cross Slide : 25.5″
Max Swing Over Tailstock : 25.5″
Max Turning Length:  80.0″
Max Bar Capacity : 4.0″
Travels:
X Axis Travel : 17.0″
Z1 Axis Travel : 80.0″
Feedrate:
Rapid Traverse X Axis: 710 IPM
Rapid Traverse Z Axis: 320 IPM
Spindle:
Spindle Nose: A2-8
Spindle Bore: 4.62″
Spindle Speed: 2400 RPM
Spindle Motor: 40 HP
Turret:
Turret Capacity: 10 Stations
Turret Index Time: 1 Second
Tool Holder Type: BMT
Tailstock:
Tailstock Type: Programmable
Tailstock Taper: MT-5
Power Source: AC 220v / 3-Phase / 60 Hz
Machine Dimensions: 254″ x 95″ x 105″ High
Machine Weight: 29,900 lbs Approx.
