USED DIACRO 100-12

Equipped With

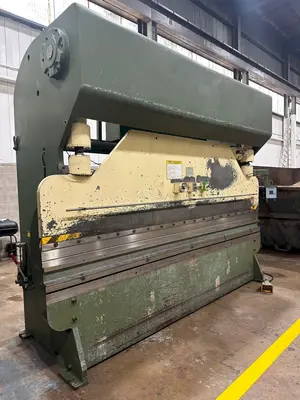

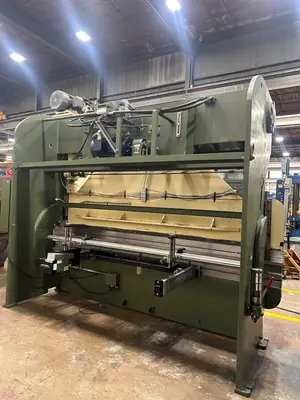

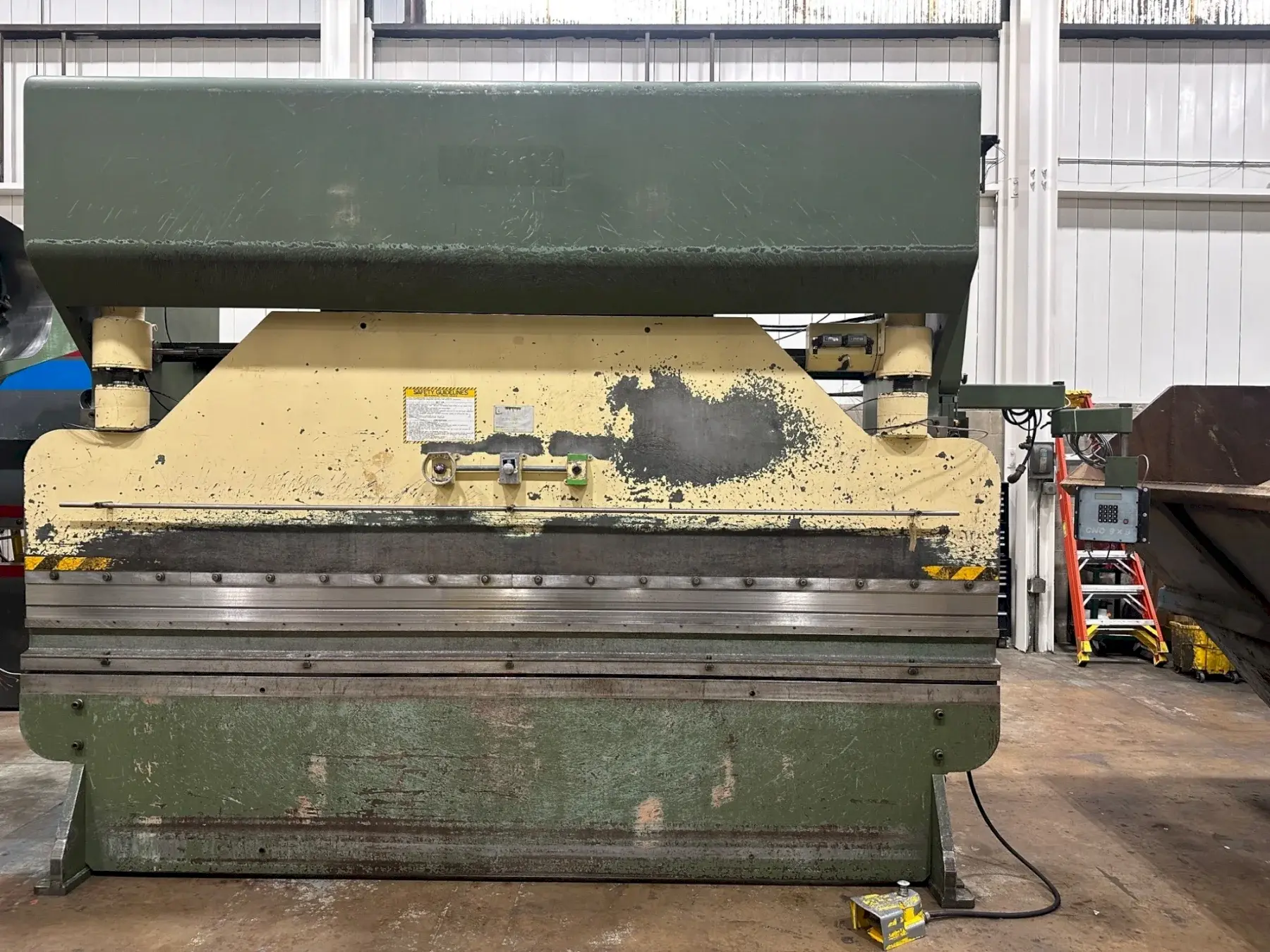

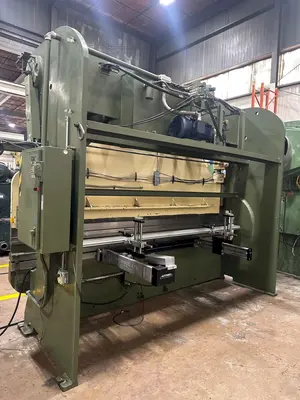

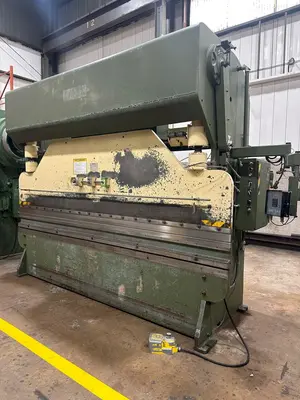

100 TON x 10' DIACRO MODEL 100-12 HYDRA-MECHANICAL PRESS BRAKE
Equipped With:

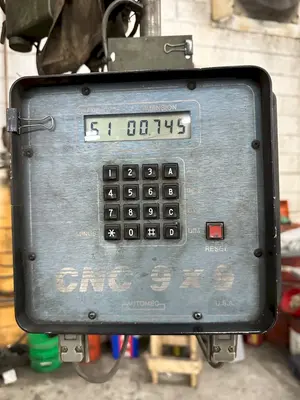

24" Automec 'CNC 9X9' single axis back gauge with
vertical adjustment & readout in inches & millimeters
5-1/2" high die rail
Dual palm buttons with emergency stop button
Electric foot switch
Pushbuttons for start – stop
Selector switches for setup – off – run; slo - hi-slo – hi-stop-slo;
key selector switch for hand – foot – off
Power ram adjustment with position indicators
Stroke length adjustment
Trabon one shot oil lubrication
Sectional ram die clamps
(5) T-slots in top of bed
Dovetail slots in front & back of bed
Hydraulic pump, driven by
15 HP 1750 RPM 208/230/460/3/60 motor
Bending capacities:                       12' x 12 ga. mild steel
                                                      10' x 10 ga. mild steel
Tonnage capacity:                         100 tons
Overall length of bed & ram:       146"
Distance between housings:         126"
Stroke:                                          3"
Ram adjustment (power):             5" (power)
Shut height S.D.A.U.:                  12"
Throat depth:                               12"
Width of bed:                              4"
Floor to top of bed:                     33"
S.P.M. approx.:                           22
Weight approx.                           22,000 lbs.
Overall dimensions approx.        162" L-R x 57" F-B x 116" H
