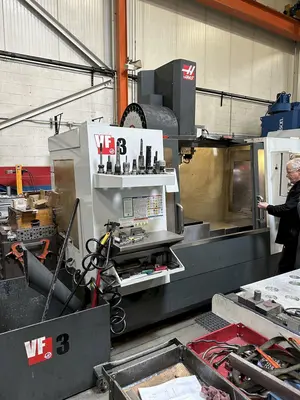

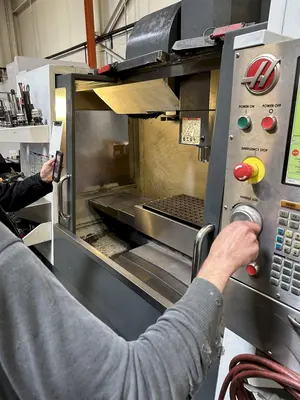

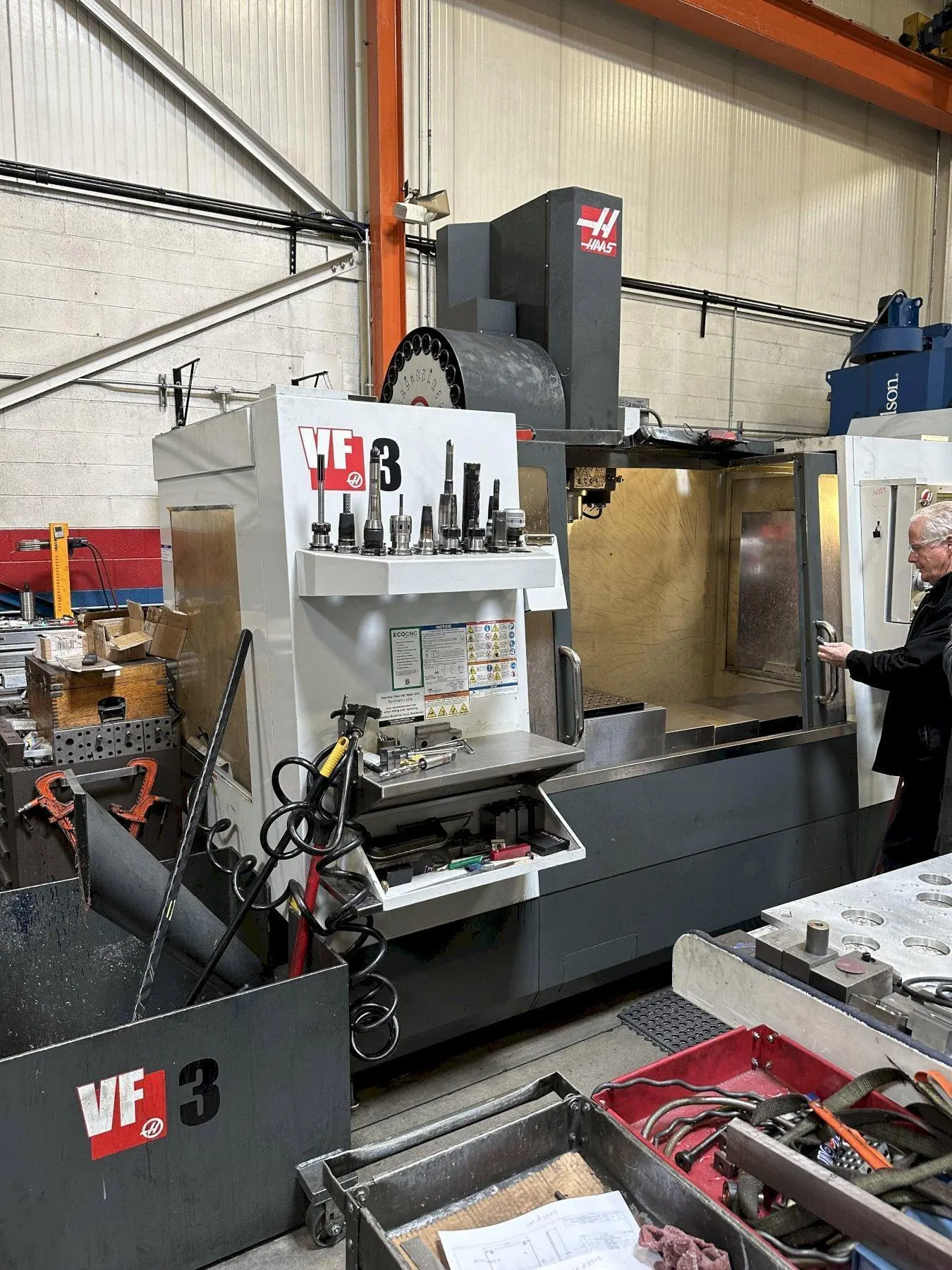

HAAS VF-3 3-AXIS VERTICAL MACHINING CENTER
New 2011
EQUIPPED WITH:
1MB Memory
Haas CNC 32-BIT CNC C;ontrols
Haas Intuitive Progamming System
High Speed Machining
Macros
Rigid Tapping
Rotational & Scaling
Software Version M17.03A
Tool Life Management
Chip Auger With Chip Chute
Side-Mount Automatic Tool Changer
High Speed Machining
SPECIFICATIONS:

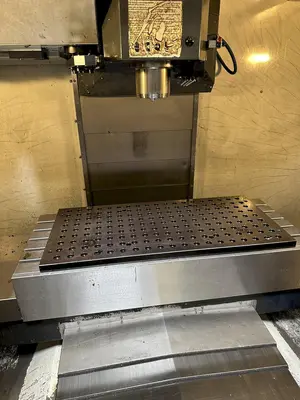

Table Size 48″ X 18″
Maximum Table Load Capacity 3500 Lbs.
Spindle Nose to Table Top 4″ – 29″
X – Axis Travel 40″
Y – Axis Travel 20″
Z – Axis Travel 25″
Spindle Nose CAT # 40
Spindle Speed 15,000 RPM
Main Motor 20 HP
Rapid Traverse Rate
X - Axis 1,000 IPM
Y - Axis 1,000 IPM
Z - Axis 1,000 IPM
Cutting Feedrate 650 IPM
Tool Magazine 24 + 1 ATC
Maximum Tool Weight 12 LBS
Maximum Tool Diameter 3.5″
Approximate Dimensions 90" x 143" x 104" High
Machine Weight 15,200 LBS.
Table Size 48" X 18"
Maximum Table Load Capacity 3500 Lbs.
Spindle Nose to Table Top 4" - 29"
X - Axis Travel 40"
Y - Axis Travel 20"
Z - Axis Travel 25"
Spindle Nose CAT # 40
Spindle Speed 15,000 RPM
Main Motor 20 HP
Rapid Traverse Rate X, Y, Z 1000, 1000, 1000 IPM
Cutting Feedrate 650 IPM
Tool Magazine 24 + 1 ATC
Maximum Tool Weight 12 LBS
Maximum Tool Diameter 3.5"
Machine Weight 12,500 LBS.
