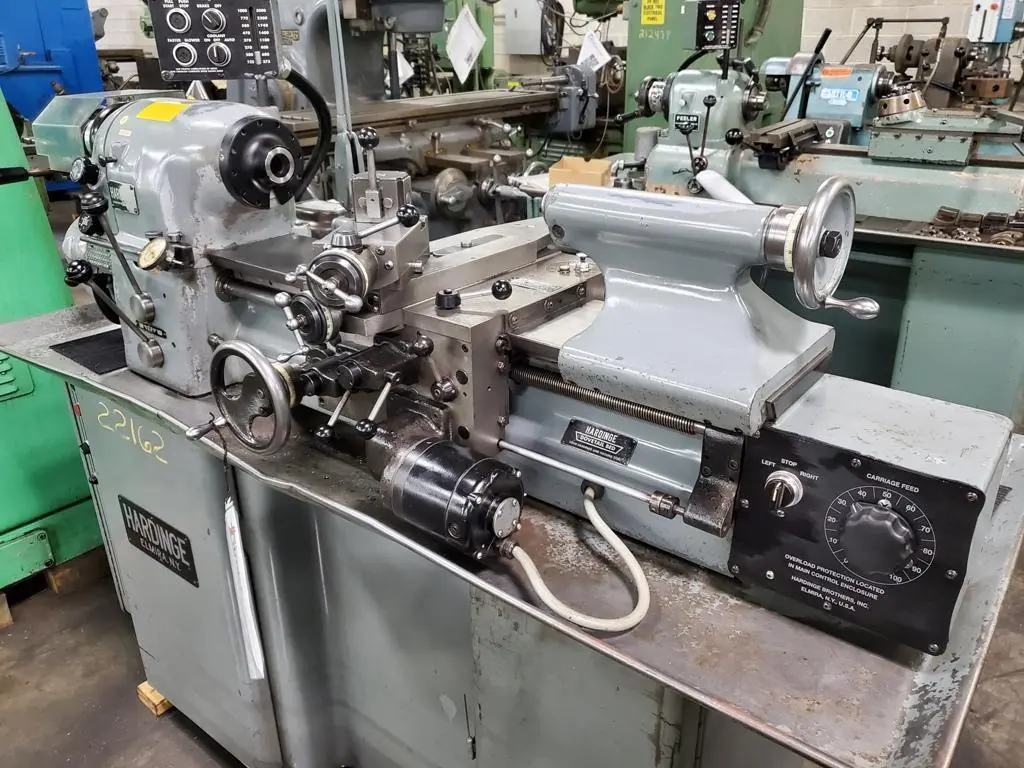

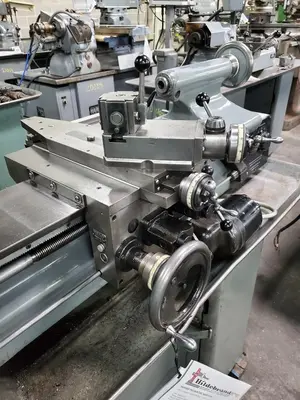

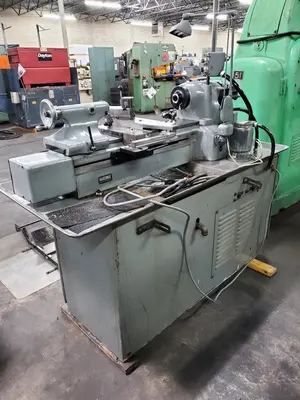

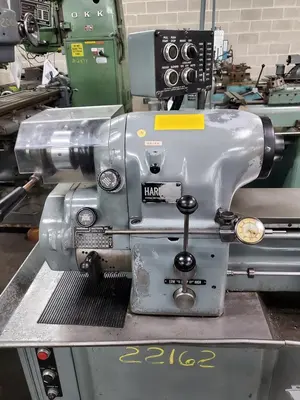

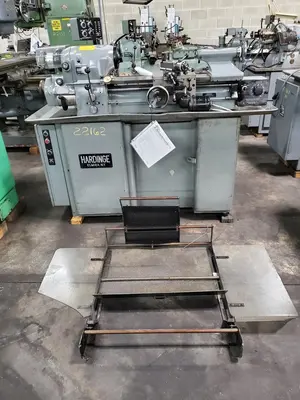

USED 1971 HARDINGE HLV-H

Equipped With
HARDINGE MODEL HLV-H PRECISION TOOL ROOM LATHE
New 1971
SPECIFICATIONS:
Swing Over Bed:  11"
Swing Over Carriage:  9"
Swing Over Cross Slide  6"
Distance Between Centers:  18"
Hole Thru Spindle:  1-1/4"
Spindle Speeds:  125 to 3,000 RPM, Variable
Spindle Nose:  External Hardinge Taper, 5C Internal Taper
Compound Slide Travel:  3"
Cross Slide Travel:  5-1/2"
Feed Range:  1/4 to 7 IPM, Variable
Collet Capacity:  1-1/16" Diameter, Round
Tailstock Quill Taper:  #2 Morse
Tailstock Quill Travel:  3-3/4"
(27) Threads:  11 to 108 TPI



EQUIPPED WITH:
FIMS Quick Change Tool Post
Assorted FIMS Quick Change Holders
Taper Attachment
Follower Rest
Standard Hardinge Gear Banjo

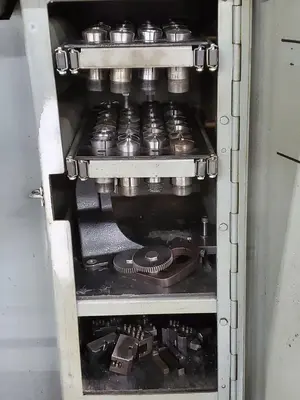

Assorted Hardinge 5C Collets
Rear Splash Guard
Work Light
Coolant Pump
1.5 HP Motor
Wired for 3 Phase, 60 Cycle, 220 Volts
Overall Size:  72" L-R x 30" F-B x 64" H x 1,875 Lbs.
