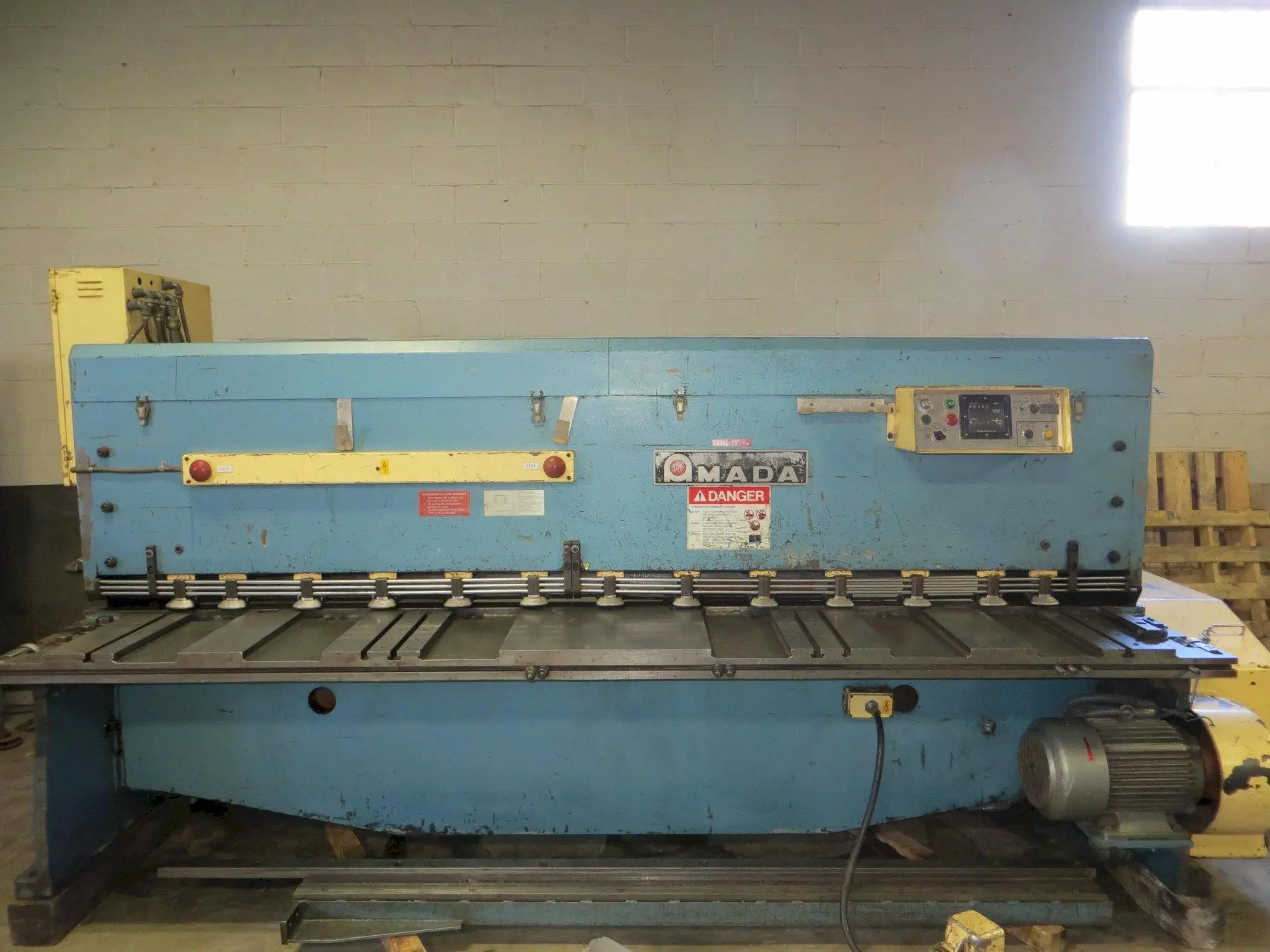

1/4" x 10' AMADA MODEL M-3060 MECHANICAL POWER SHEAR
Specifications:
CAPACITY, MILD STEEL ......................... 1/4"
SHEARING LENGTH .............................. 120"
BLADE LENGTH ................................. 133"
RAKE ANGLE ................................... 1 DEGREE 28'
SPEED ........................................ 60 SPM
BACKGAUGE RANGE .............................. .25" - 36"
NUMBER OF HOLDDOWNS .......................... 13
MOTOR SIZE ................................... 15 HP
DIMENSIONS .... L x W x H ............... 170" x 80" x 70"
WEIGHT ....................................... 18,500 LBS.
Equipped With:
36" AMADA FRONT OPERATED POWER BACKGAUGE
10' SQUARING ARM
(2) 30" FRONT SUPPORT ARMS
ELECTRIC FOOT SWITCH CONTROLS
