USED 1995 GRAY RM-48

Equipped With

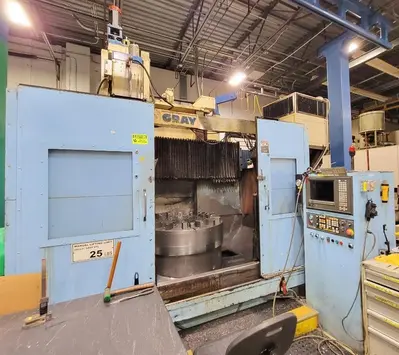

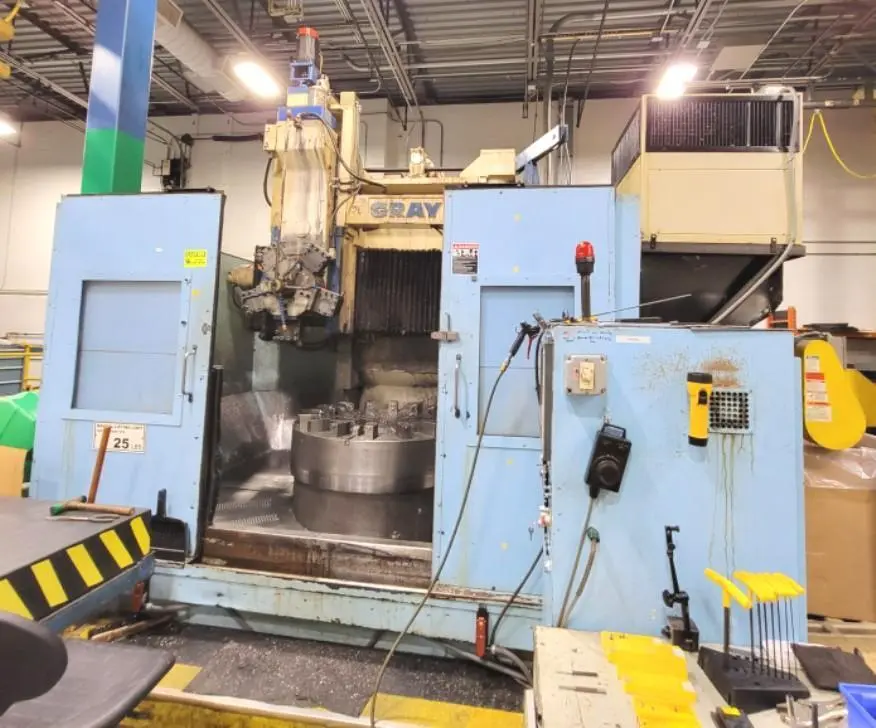

Gray, Model RM, 48” Ring Master CNC Vertical Turret Lathe
New 1995
Retrofitted in 2010
GRAY MODEL RM-48 Table 60" Swing (Ring Master) CNC VTL 75 HP. 2-Speed Transmission Geared Programmable High Low Range Fanuc 18-TT CNC Rebuilt & Retrofitted approximately in 2005. Machine Ran Very Low Hours Net Ring Application. 48" Power Chuck with Added Jaws for Round Part Applications. Excellent Upper & Lower Bearings on Turret Housing for rigidity. Under Tool Holders Cutting Applications
SPECIFICATIONS:
Table Diameter         48"
Swing 56"
Height Under Rail    48"
Table Speeds:
            High:   14.5 - 287 RPM
            Low:    4.8 - 97 RPM
Max Turning Height 54"
Feeds .01 to 120 IPM
Equipped With:
5 Sided Turret

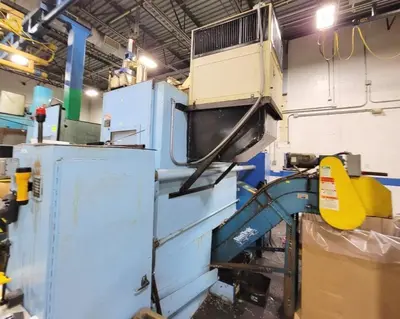

Chip Conveyor

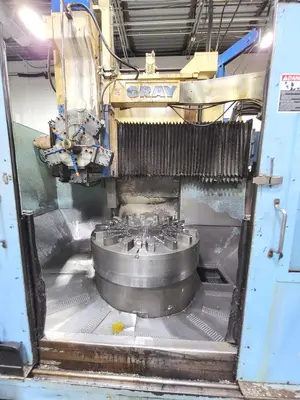

48” Hydro Chuck

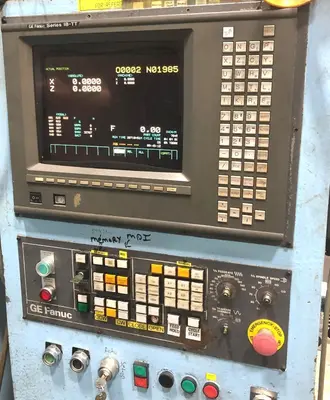

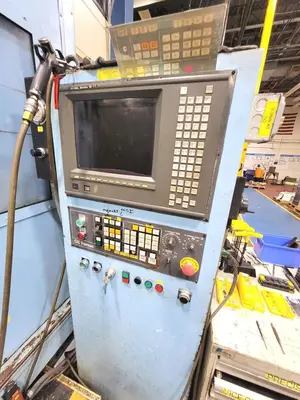

Fanuc 18-TT CNC Control (Retro Fitted 2010)
