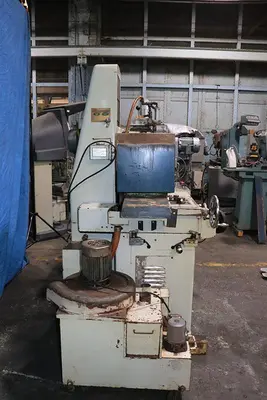

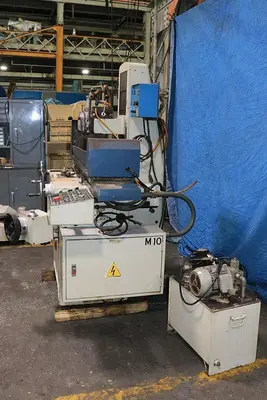

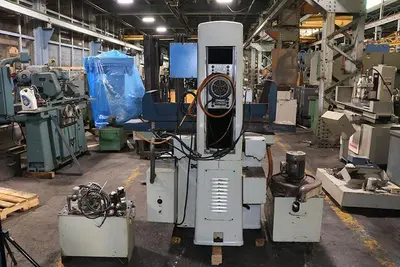

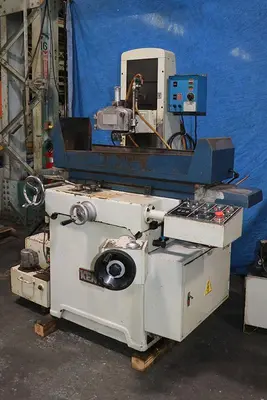

USED 1994 KENT KGS-250-AHD

Equipped With

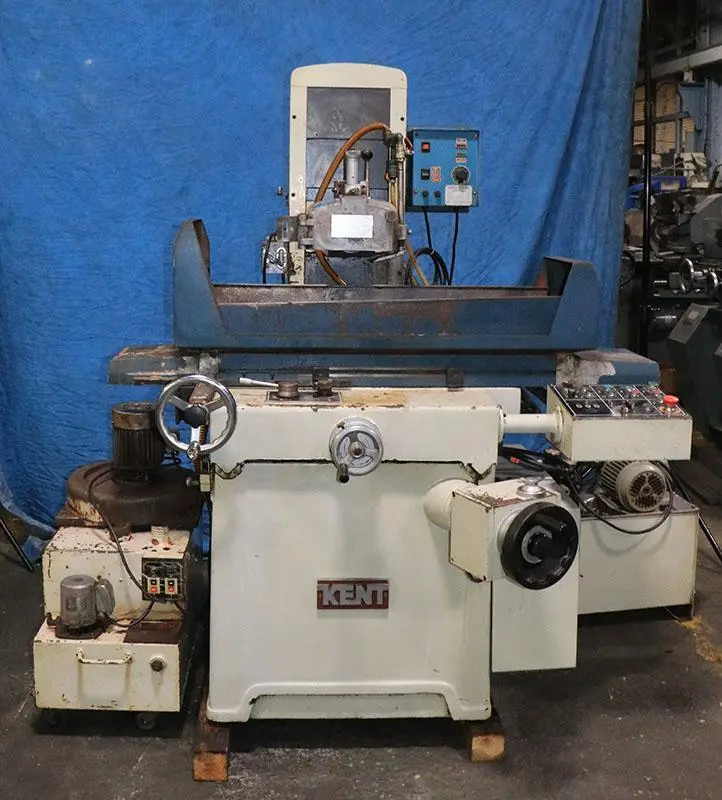

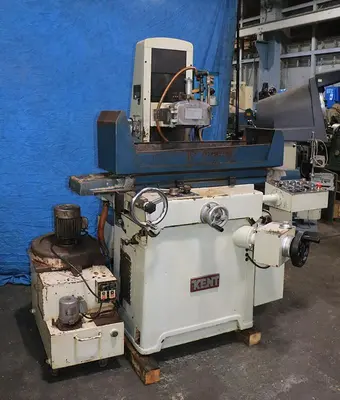

8" X 18" KENT MODEL KGS-250-AHD HYDRAULIC SURFACE GRINDER  W/AUTOMATIC INCREMENTAL DOWNFEED
NEW 1994
SPECIFICATIONS:
MAX. SURFACE GROUND ................ 10" X 20"
DIST. SPINDLE CENTER TO TABLE ...... 16"
VARIABLE TABLE SPEED, HYDRAULIC .... 16' TO 67' FPM
AUTOMATIC CROSSFEED INCREMENT ...... 0.04" TO 0.3"
CROSSFEED HANDWHEEL PER GRAD. ...... 0.001"
  PER REVOLUTION ................... 0.2"
  1 GRAD. .......................... 0.001"
  VERNIER SCALE .................... 0.0001"
AUTO INCREMENTAL DOWNFEED .......... 0.001" TO .0001"
VERTICAL RAPID POSITIONING RATE .... 35" IPM
VERTICAL DOWNFEED ON HANDWHEEL,
 1 REV. ............................ 0.1"
 1 GRAD. ........................... 0.0005"
 VERNIER SCALE ..................... 0.00005"
SPINDLE MOTOR ...................... 1.5 H.P.
STANDARD GRINDING WHEEL ............ 8"D X 1/2" X 1- 1/4"
 APPROX. WEIGHT ..................... 2,860 LBS
FLOOR SPACE REQUIRED ............... 71" X 55"W X 70"H
EQUIPPED WITH:
AUTOMATIC INCREMENTAL DOWNFEED (VARIABLE 10 STEPS)
POWER RAPID WHEELHEAD POSITIONING
HYDRAULIC TABLE TRAVERSE
POWER CROSSFEED

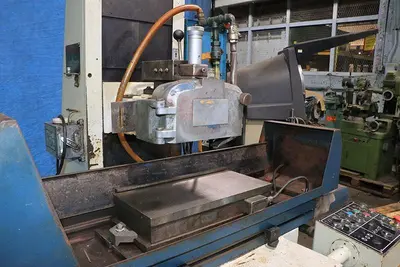

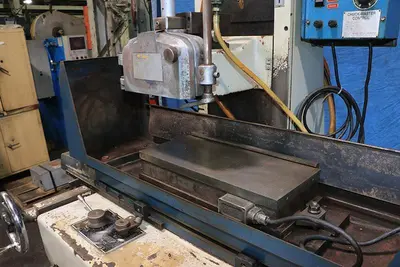

8" X 18" FINE-POLE ELECTRO-MAGNETIC CHUCK

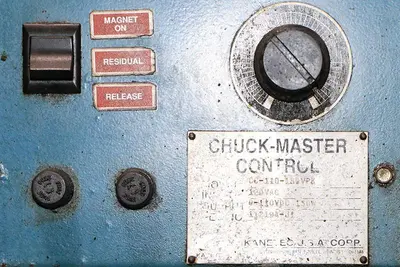

"KANETEC" VARIABLE HOLD NEUTROFIER CONTROL

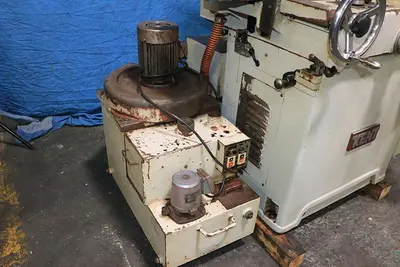

DUST COLLECTOR & COOLANT SYSTEM
OVER-THE-WHEEL DRESSER
MEEHANITE CASTING

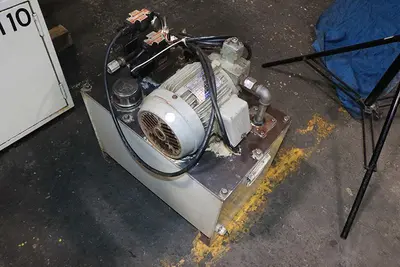

EXTERNAL HYDRAULIC SYSTEM

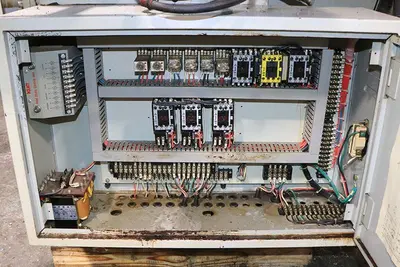

MACHINE IS PRESENTLY WIRED FOR 3/60/220 VOLTS
