USED 2012 CITIZEN A20VII

Equipped With

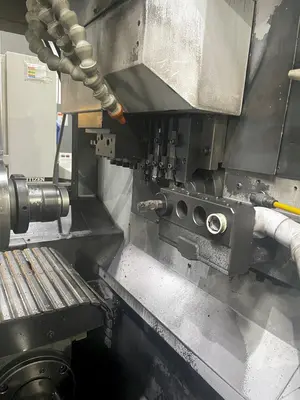

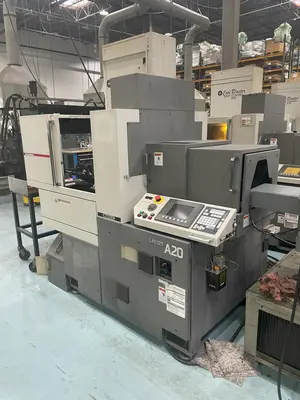

CITIZEN MODEL A20VII CNC SWISS LATHE
New 2012
EQUIPPED WITH:

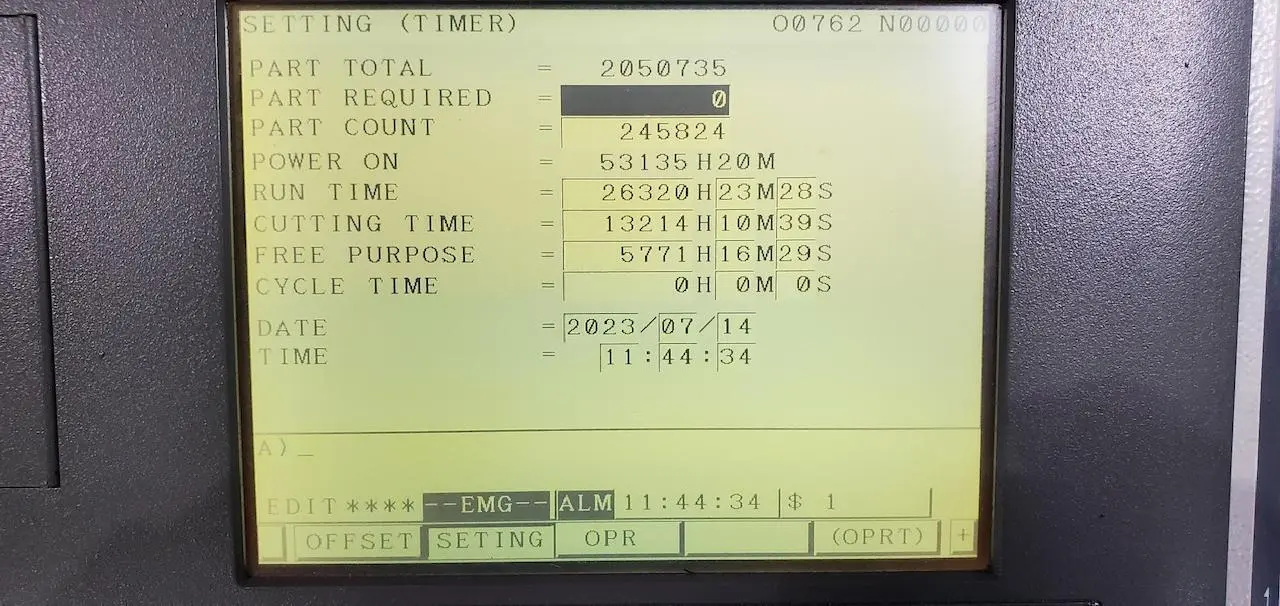

Fanuc 32i CNC Control
Cool Blaster 850 Mist Collector
Cool Blaster CB510 High Pressure Coolant System
Edge Technologies C-320 Magazine Bar Feed (2011, s/n:C4201151217)
Lubrication System
(7) Tools
Ports
General Specifications:
Machine Diameter:                              3/4" (20 mm)
Machine Length:                                6 1/2" (165 mm)
Front Drilling Diameter:                       1/4" (10 mm)
Front Tapping Diameter:                        M8
Spindle Hole:                                  1 1/4" (31 mm)
Main Spindle Speed:                            8,000 RPM
Live Tool RPM:                                 6,000 RPM
Chuck Dia (Back Spindle):                      3/4" (20 mm)
Back Spindle Speed:                            8,000 RPM
# of Tools Mounted:                            21
Turning Tools on the Gang Post:                5
Rotary Tools for Cross Machining:              4
Tools for Front Drilling:                      4
Tools for Back Drilling:                       8
Machine Dimensions:                            8.5' x 5.8' x 6'
Machine Weight:                                5,600 lbs
