Equipped With

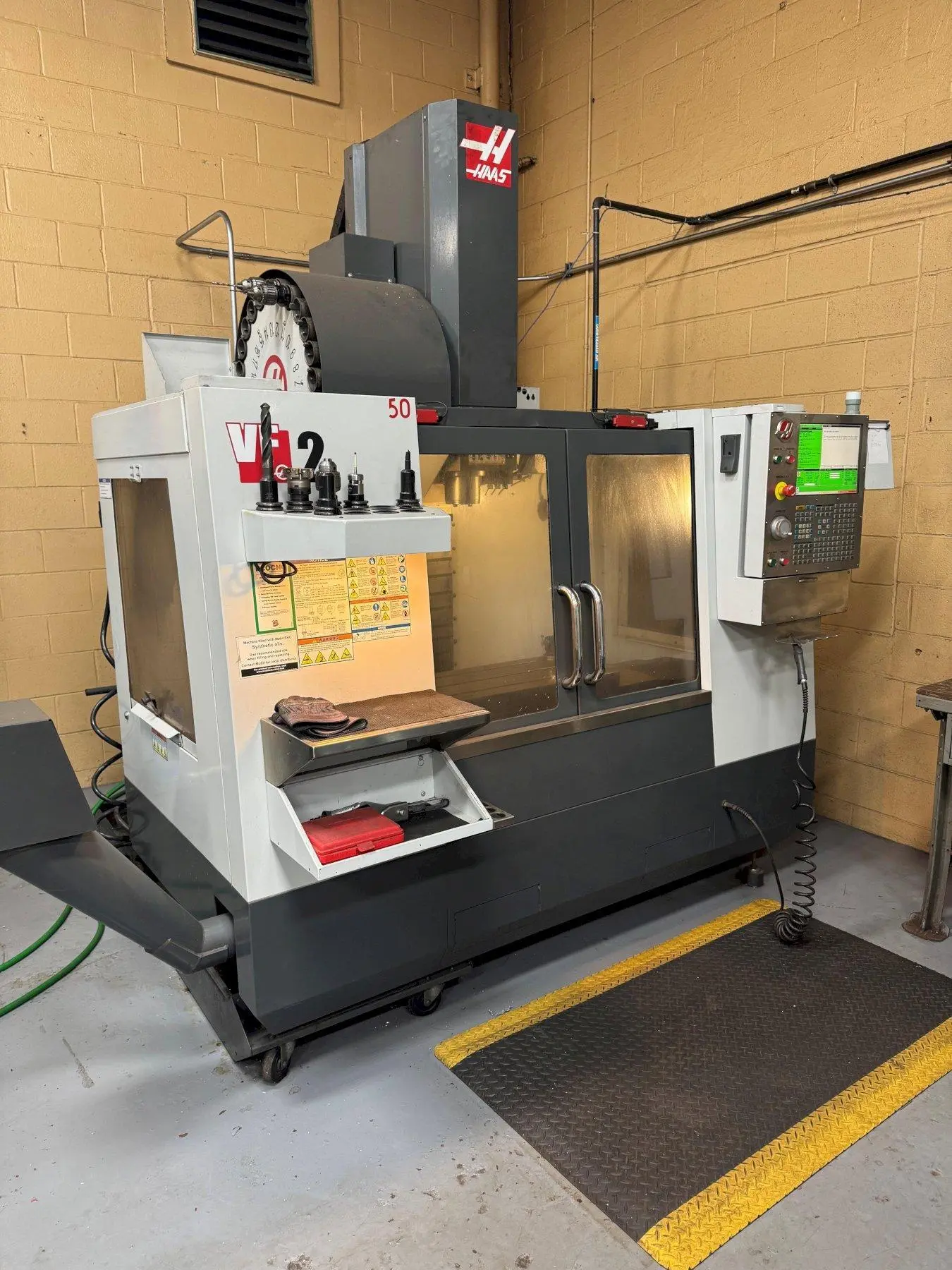

HAAS VF2 CNC VERTICAL MACHINING CENTER WITH 5th AXIS TRUNNION
New 2011
PECIFICATIONS:
Table Size.......................36" x 14"
Max Table Load...................3,000 LBS
X-Axis Travel....................30"
Y-Axis Travel....................16"
Z-Axis Travel....................20"
Spindle Motor....................30 HP
Spindle Taper....................CAT-40
Spindle Speed....................7,500 RPM
Rapid Traverse Rates.............1,000 IPM
Number of Tools..................24 ATC
Max Tool Diameter................3.5"
Max Tool Weight..................12 LBS
Dimensions.......................101" x 99" x 101"
Weight...........................7,800 LBS
EQUIPPED WITH:
Haas CNC Control
7,500 RPM, CAT-40 Spindle
Programmable Coolant
24 Station Side Mount ATC

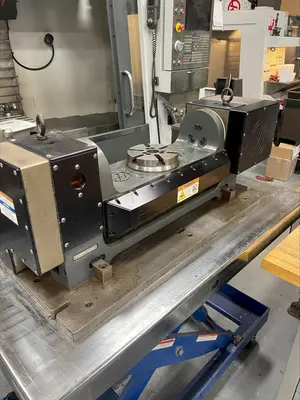

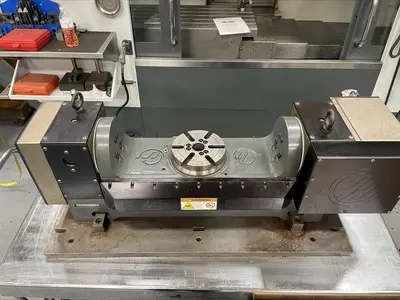

TR-160 5th Axis Trunnion Table
Chip Auger

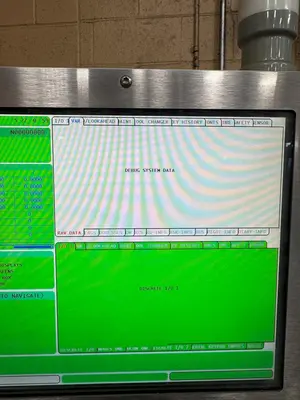

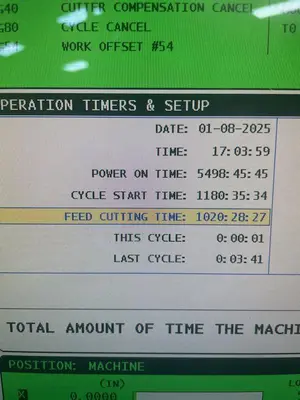

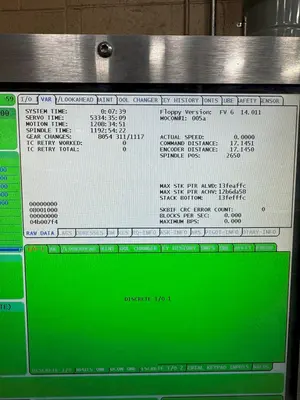

HOURS:
Servo Time........5,334
Motion Time......1,208
Spindle Time.....1,192
**PROBE NOT INCLUDED**
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
