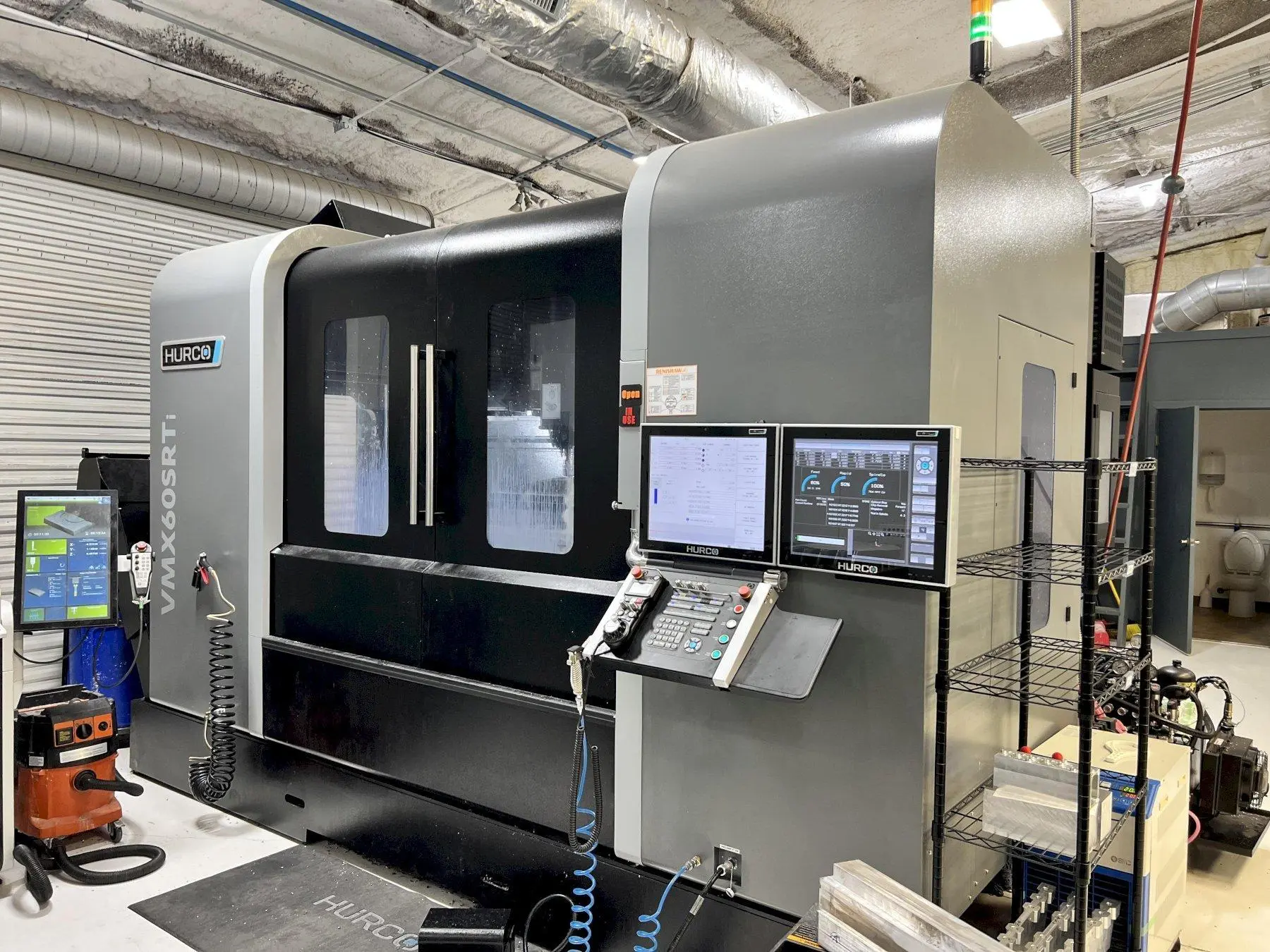

NEW 2024 HURCO VMX60-SRTI

Equipped With
HURCO MODEL VMX60-SRTi 5-AXIS CNC VERTICAL MACHINING CENTER
New 2024
EQUIPPED WITH

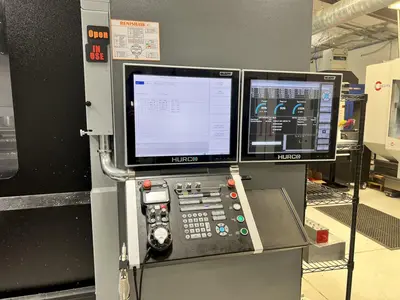

WinMax Dual Screen CNC Control
300 psi Coolant Thru Spindle
12,000 RPM spindle
3D Import includes DXF
Tool & Material Library
UltiPockets
NC/Conversational Merge
Renishaw RMP 60 Part Probe & RTS Tool Probe
Mist Collector
SPECIFICATIONS
X Axis Travel: 60″
Y Axis Travel: 26″
Z Axis Travel: 24″
B, C Axis Travel: +/- 92°, 360°
Spindle Nose to Table (Min-Max): .5 / 24.5 in
Table Size: 66″ x 26″
Table Size C: 23.6″ diameter
Max. Weight on Table: 3,000 lbs.
Max Weight on Rotary/ Trunnion Table: 1,100 lbs.
Spindle
Max. Spindle Speed: 12,000 rpm
Tool Changer: CAT-40
Number Of Tools: 40
Max Tool Diameter: 2.95″
Max Tool Length:9.8″
Max Tool Weight: 15.4 lbs.
Max. Operating Floor Space: 222.9″ x 154.4″
Machine Height: 129.8″
Machine Weight: 23,980 lbs.
