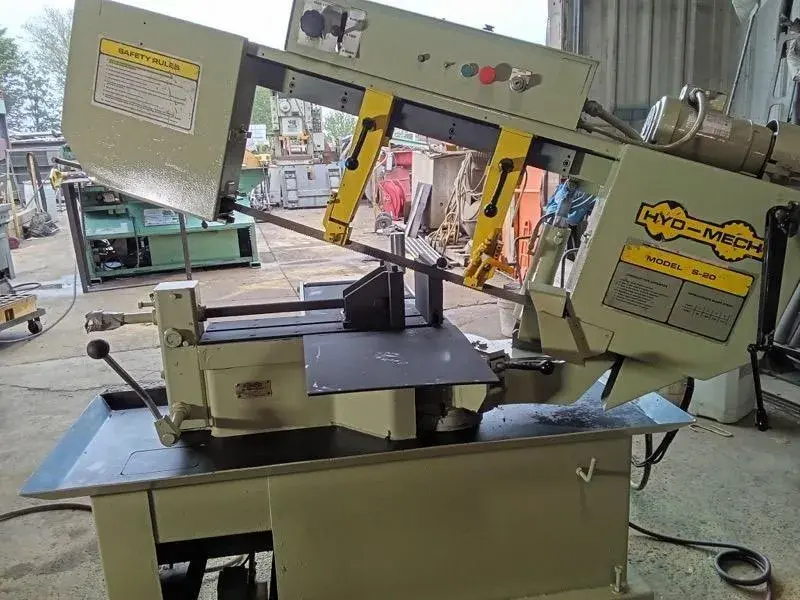

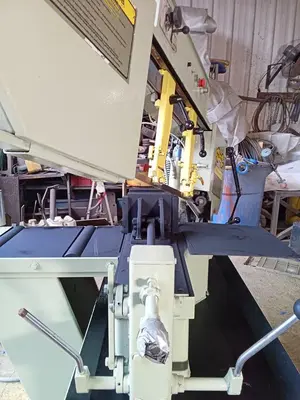

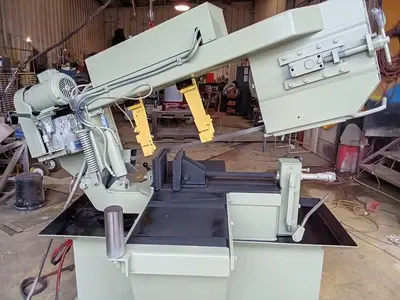

USED 1995 HYD-MECH S-20

Equipped With
13" X 18" HYD-MECH MODEL S-20 MITER HORIZONTAL BANDSAW
NEW 1995
SPECIFICATIONS:
CUTTING CAPACITY, RECTANGULAR--------13 in HIGH x 18 in WIDE
CUTTING CAPACITY, ROUND--------------12 in DIAMETER @ 45°
BLADE, LENGTH------------------------13 ft6 in
BLADE, WIDTH-------------------------1 in
BLADE, THICKNESS---------------------.032 in
BLADE SPEED (STANDARD STEP PULLEY) --90/140/220/310 SURFACE FEET/MINUTE
3 HP VARIABLE SPEED OPTION------------75-400 SURFACE FT/MIN.
BLADE GUIDES-------------------------CARBIDE
BLADE WHEEL DIAMETER-----------------16 in
MOTORS-------------------------------2 HORSEPOWER
OPTIONAL-----------------------------3 HP VARIABLE SPEED
OPTIONAL-----------------------------1/4 HP FOR HYDRAULICS
COOLANT PUMP-------------------------3.5 GALLONS PER MINUTE
COOLANT RESERVOIR--------------------6 GALLONS
TABLE HEIGHT------------------------30 in HIGH
MACHINE WEIGHT----------------------3000 POUNDS
OVERALL DIMENSIONS------------------81 in W x 71 in L x 55.5 in H
