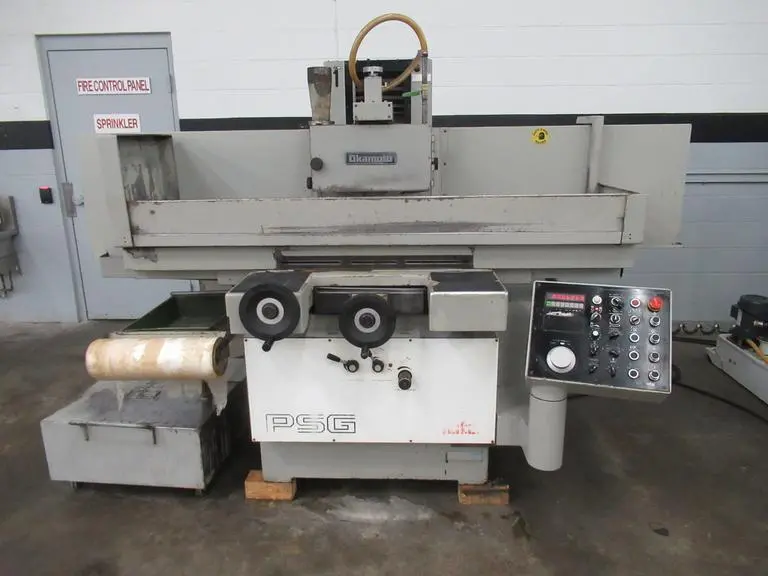

USED 1987 OKAMOTO ACC-1224DX

Equipped With
12" X 24" OKAMOTO ACC-1224DX 3-AXIS AUTOMATIC HORIZONTAL SURFACE GRINDER
New 1987
SPECIFICATIONS:
Max. Chuck Size                                           12" x 245"
Auto Longitudinal Feed Rate                       1-82 FPM
Max. Distance Spindle/Wheel to Table         .9" - 12.7"
Max. Wheel Size                                           14" Diameter x 1.5"
Auto. Wheelhead Downfeed Increments     .00005 - .0015"
Wheel Speed                                                1,800 RPM
Spindle Drive                                                5 HP
Max. Table Load (Including Check)              924 Lbs.
Approximate Dimensions                           92" x 70" x 74" H
Approximate Weight                                  5,280 Lbs.
EQUIPPED WITH:
12" x 24" Electromagnetic Chuck with Variable Control, 3-Axis Operation with Servo Incremental Downfeed, Digital Wheelhead Position Display, Manual Over-the-Wheel dresser. Coolant Tank & Pump with Magnetic Separator, Toolbox
