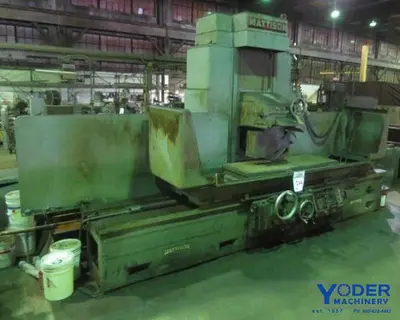

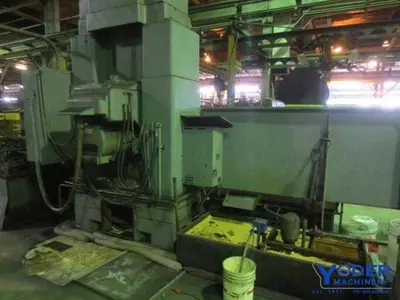

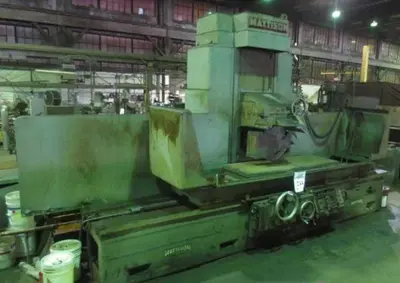

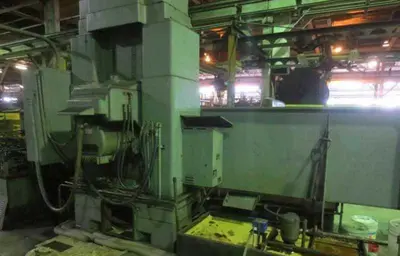

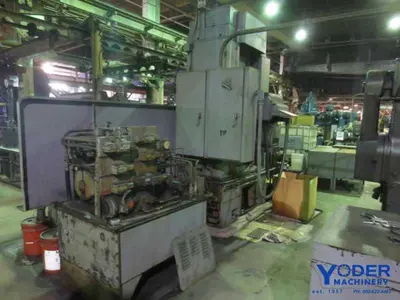

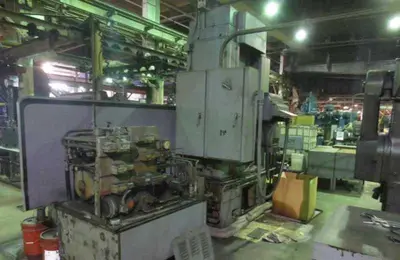

24" X 72" MATTISON MODEL G2472 HYDRAULIC SURFACE GRINDER
Motor Driven with 60 HP, 3-Phase, 60 Cycle, AC Spindle
EQUIPPED WITH:
(2) 24" X 36" Electro Magnetic Chucks
Variable Chuck Control
Over the Wheel Dresser
Splash Guards
SPECIFICATIONS:
Table Size 24" x 72"
Longitudinal Travel 84"
Cross Travel 27"
Vertical Capacity Under 20" Wheel 30"
Max. Table Speeds 125 FPM
Cross Feed (Intermittent) 1/32: to 3"
Size of Grinding Wheel 20" x 6"
