USED 2000 MARVEL SERIES 8 MARK II

Equipped With

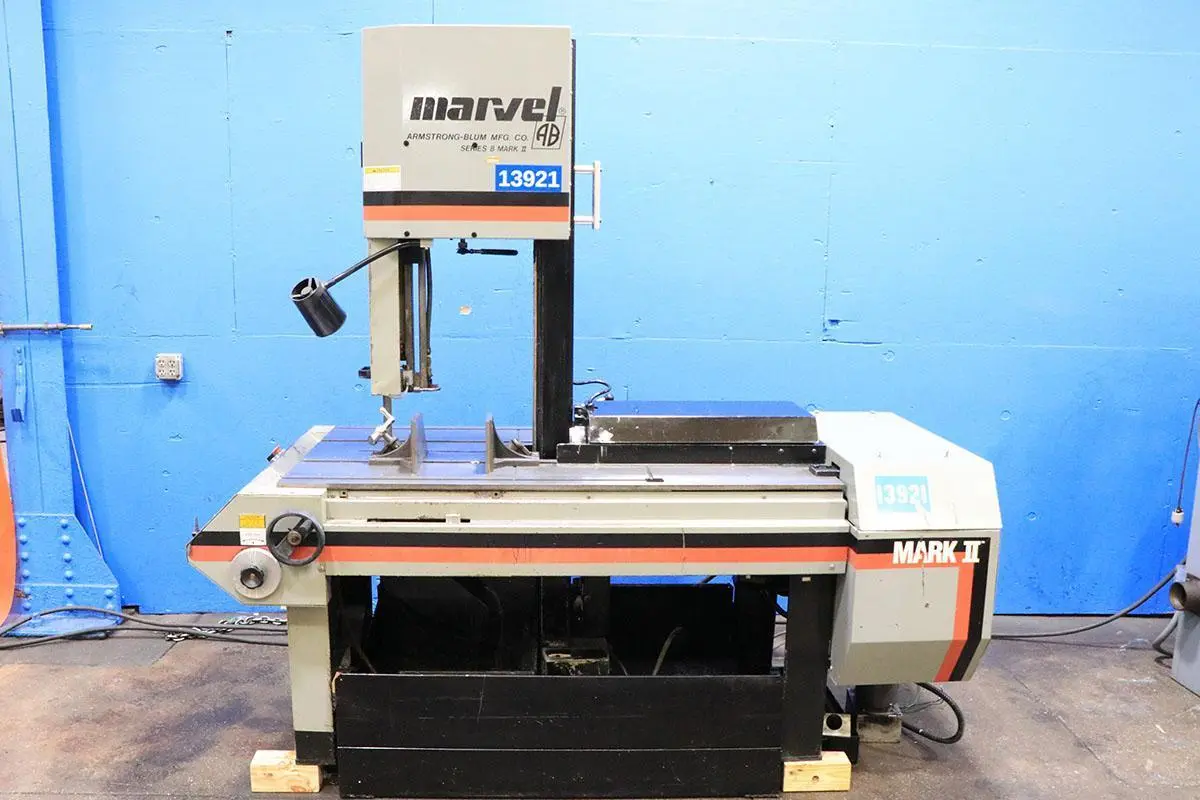

18" X 22" MARVEL MODEL SERIES 8 MARK II TILT FRAME VERTICAL BANDSAW
NEW 2000

SPECIFICATIONS:
CAPACITY:
    NOMINAL .................... 18" x 22"
    HORIZONTAL ................. 18"
    VERTICAL ................... 22"
    BLADE @ 45 deg  ............ 18" x 12-3/4"

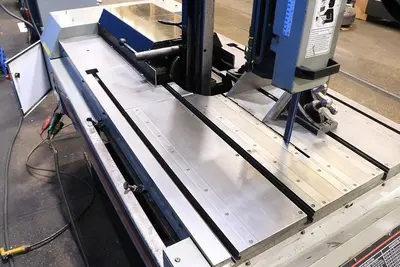

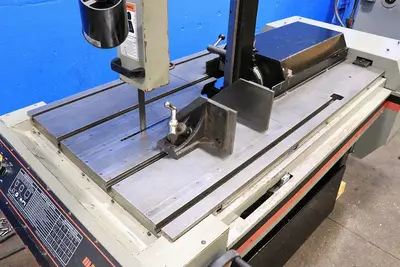

TABLE WORKING SURFACE .......... 24-1/4" X 33"
TABLE HEIGHT ................... 34-1/2"
TEE SLOTS NUMBER ............... 4
MAX VISE OPENING ............... 21"
HEIGHT OF VISE JAWS ............ 6"
FEED RANGE ..................... 0 - 140 LBS
VARIABLE SPEED RANGE ........... 50 - 450 FPM
BLADE SIZE ..................... 14'6" x 1" x .035" THICK
BLADE WHEEL DIAMETERS .......... 18"
APPROX. MACHINE DIMENSIONS ..... 54-1/2"W x 90"D x 84-1/2"H
APPROX WEIGHT .................. 2,870 LBS
EQUIPPED WITH:
- WORK VISE
- COOLANT PUMP & CHIP PAN
- VARIABLE BLADE SPEED

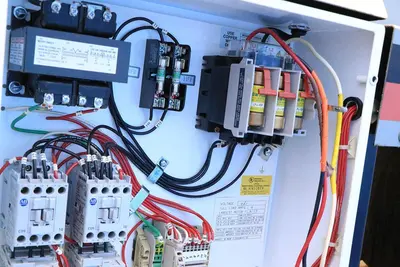

- 2 HORSE POWER 3/60/208,230,460 VOLT MOTOR AND CONTROLS

   (SET FOR 460V)
