Equipped With

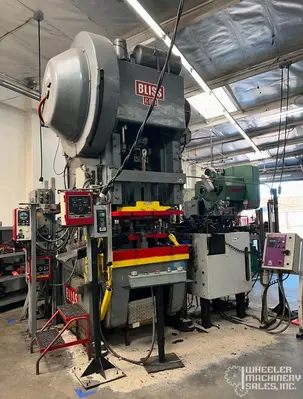

110 TON BLISS C-110 OBI PRESS
SPECIFICATIONS:
CAPACITY: 110 TONS
STROKE: 6″
MAX SHUT HEIGHT TO BED: 21″
BED AREA: 42″ X 27″ (RL X FB)
RAM AREA: 28″ x 23″ (RL X FB) – Flanged Ram
RAM ADJUSTMENT: 4″
SPEED: 40 SPM
BOLSTER PLATE 42″ X 27″ (RL X FB) X 4″ THICK T-SLOTTED BOLSTER PLATE
DISTANCE BETWEEN UPRIGHTS: 24″
FLOOR TO BED HEIGHT: 36″
PRESS CONTROLS: SQUARE D RELAY LOGIC CONTROLLER
CLUTCH: BLISS AIR CLUTCH AND BRAKE
ELECTRICAL: 10 HP, 1750 RPM MOTOR & BLISS RELAY PRESS CONTROL
APPROX. DIMENSIONS: 65″ X 104″ (RL X FB) X 148″ HIGH
APPROX. WEIGHT: 30,000 LBS.
