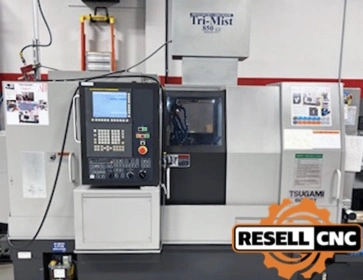

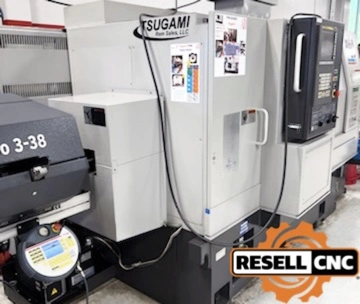

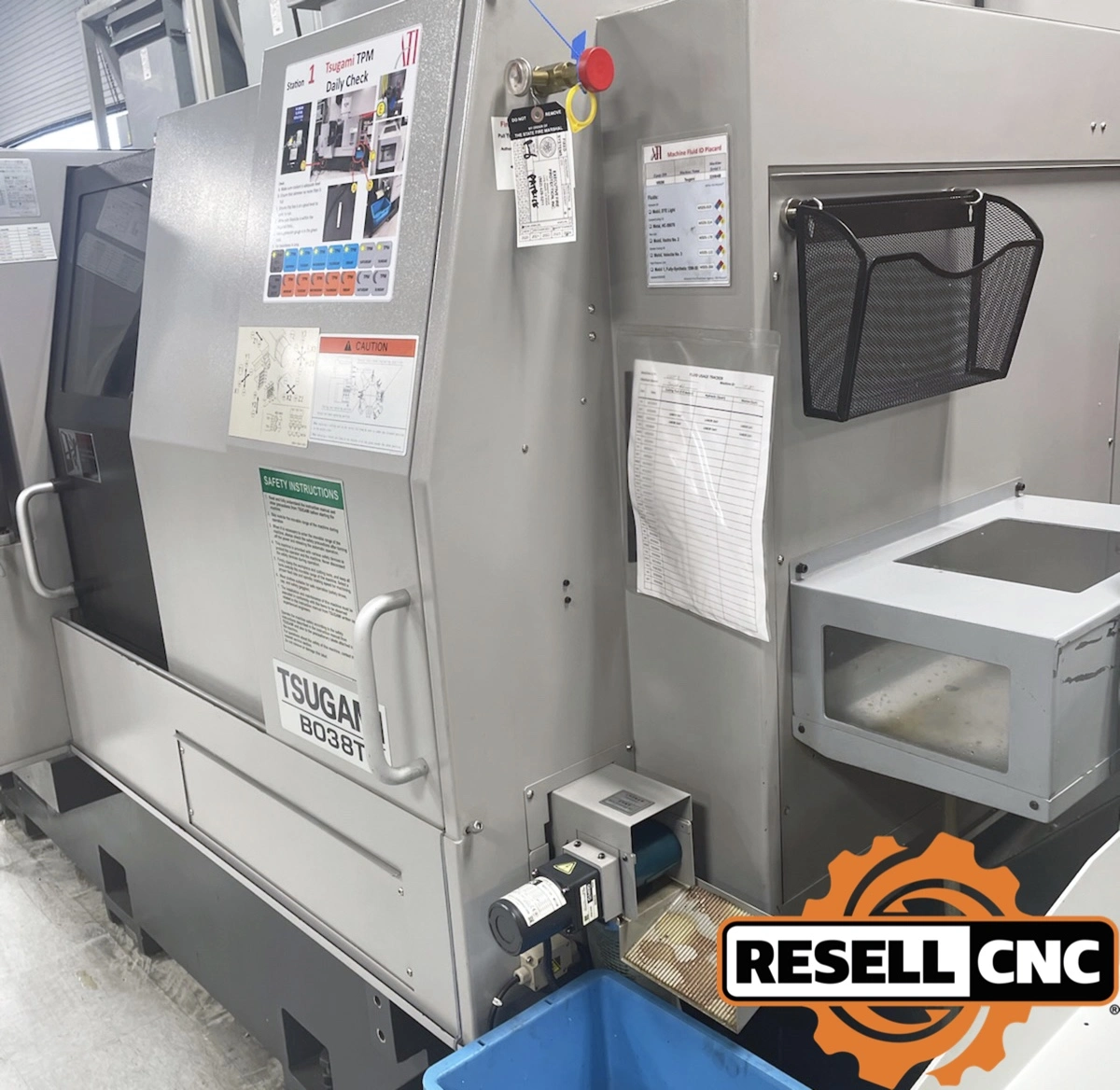

USED 2017 Tsugami BO-38T

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Machine Specs: Front Tool Size: 0.79” x 0.79” x 4.92”

Back Tool Size: 0.63” x 0.63” x 4.92”

Max Drilling (Turret): 0.63”

Max Tapping (Turret): 3/8” thread

Cross Drilling (Front Tool Post): 0.39”

Cross Tapping (Front Tool Post): 1/4” thread

Rotary Drilling (Back Tool Post): 0.39”

Rotary Tapping (Back Tool Post): 3/8” thread

Air Pressure Requirement: 72.5 PSI

Air Flow Requirement: ~3.53 CFM

Long Pusher Kit for Edge FMB Barfeeder

Microfine Chip Conveyor for B038T

S2 Chiller Pump, 2000 PSI High Pressure Coolant Pump for Oil

Mist Buster with Hepa Filter Unit for B038T

Fire Trace System

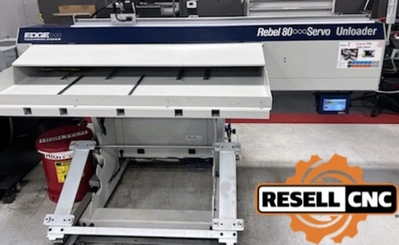

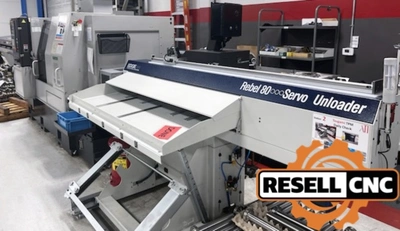

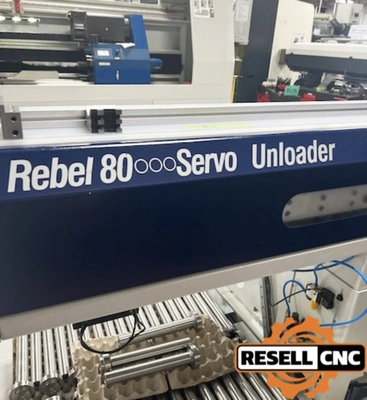

Edge Technologies Rebel 80 Unloader. Includes Sub Spindle liner, Pusher, Extended Static Liner

(1) Face Milling Unit Part# 3263-Y2331

(1) Cross Drilling Unit, Part# 3263-Y2321

(1) Double Cross Drilling Units, Part# 3262-Y2341

Bar Capacity: 1.5

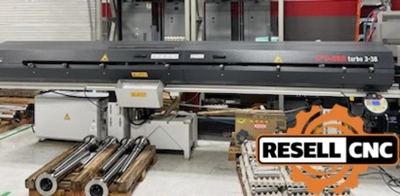

Barfeeder Make Model: Edge FMB Turbo 338 Barfeed
B Axis: false
C Axis: true
Chip Removal: Chip Conveyor

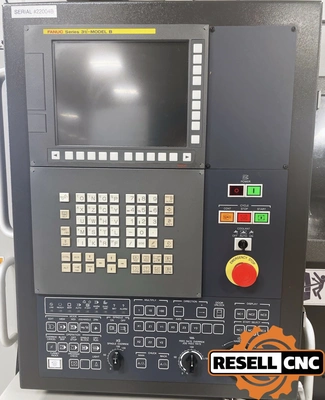

Control Make Model: Fanuc 31i-B CNC Control
Coolant Psi: 2000.0
Coolant Type S: High Pressure Coolant
Distance Between Centers: 9.84
Electrical: 45 kVa
Live Milling Max Rpm: 8000
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: true

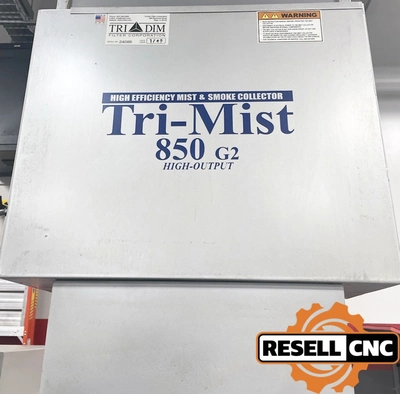

Machine Options: Mist Collector
Max Cutting Turning Diameter: 1.5
Max Swing Over Bed: 1.5
Programmable Tailstock: false
Second Spindle Motor: 7.5
Second Spindle Speed: 7000
Single Turret: false
Single Turret Live Tooling: false
Spindle Motor: 15
Spindle Speed: 5000.0
Sub Spindle: true
Tailstock: false
Tool Positions: 27.0
Total Spindles: 2
Twin Turret: false
Y Axis: true
