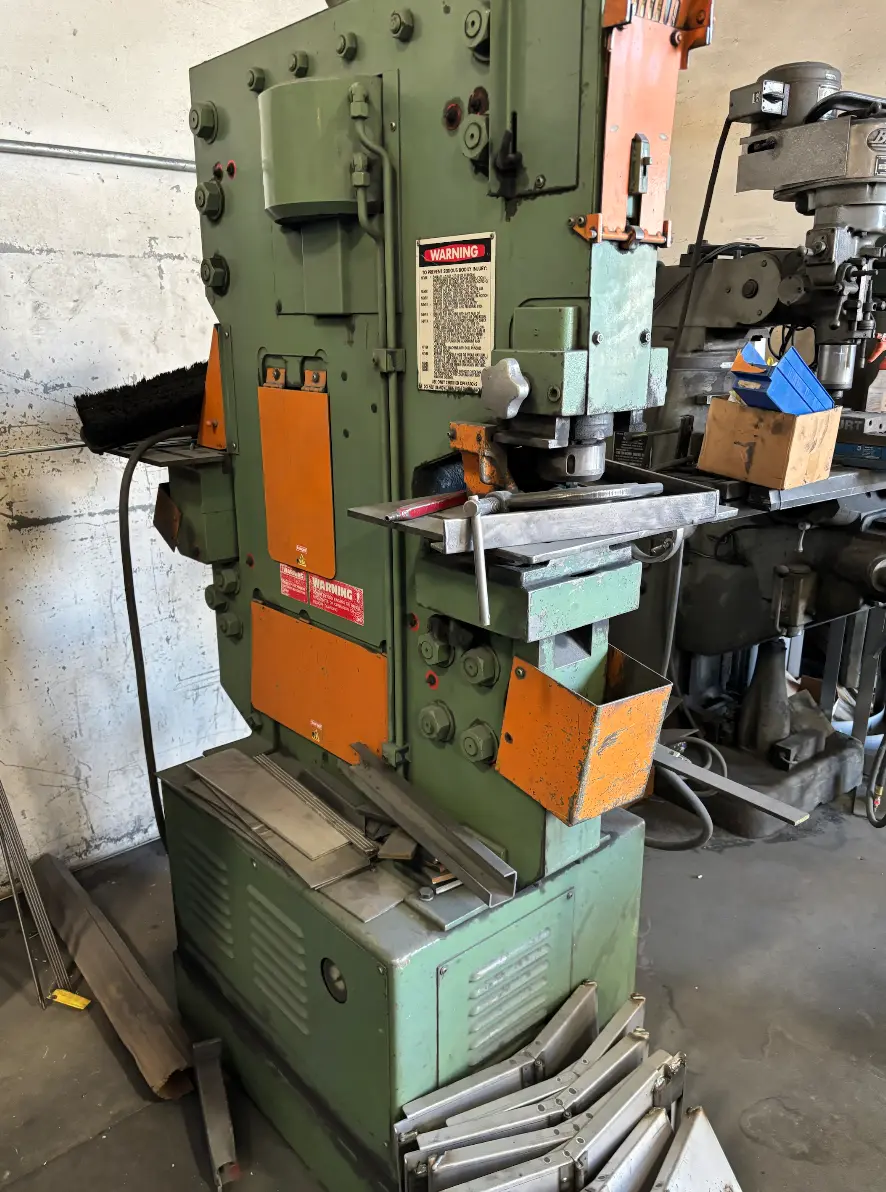

USED PEDDINGHAUS 1050

PEDDINGHAUS Peddiworker 1050 Hydraulic Ironworker #8086

SPECIFICATIONS:
PUNCH UNIT:
Tonnage – 105 ton
Throat Depth – 10″
Hole Capacity – 1-1/4″ thru 3/4″
Punch Style – 152
Die Style – 131

SHEAR SECTION:
Shear Cross Section Capacity – 3.31 sq. inches
Angles, 90 deg straight up to – 5″ x 5″ x 1/2″

BAR STOCK SHEAR:
Rounds – 3/4″ and 1-9/16″
Squares – 1″ and 1-9/16″

FLAT SHEAR:
Flat Stock – 16″ x 3/4″
Blade Length – 16-3/4″

NOTCHER (with square coper):
Flats thickness up to – 1/2″
Width of cut – 2″
Depth of cut – 2-3/4″
Angles & Tees – 3″ x 3/8″
Channels – 3″ to 5″
I-Beams – 3″ to 6″

NOTCHER (with triangular notchers):
Flats thickness up to – 1/2″
Depth of cut – 2-3/8″
Angles & Tees – 2-1/2″ x 3/8″
Channels – 3″ to 5″
I-Beams – 3″ to 6″
