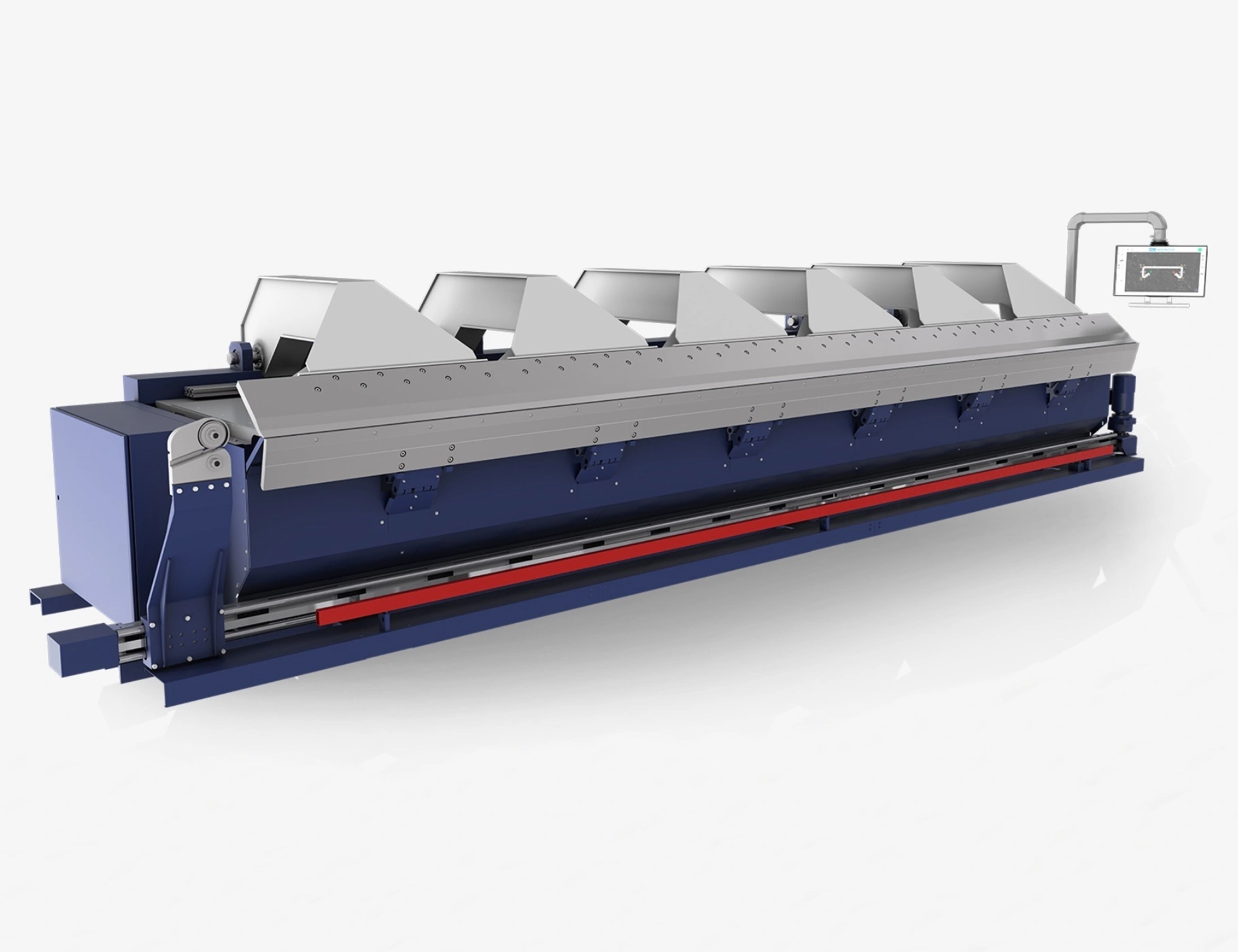

NEW BIEGEMASTER BENDTRON 6.1.50
Overview
The Bradbury Biegemaster BendTron 6.1.50 Single Bend Folder with 21' x 16 gauge capacity single bend folder, is an all electric folder with an intuitive touchscreen computer control for ease entering new parts into the controller.
Specs
Brand - Biegemaster/Bradbury
Model - BendTron 6.1.50
Type - Single Bend Long Folder
Capacity - 21' X 18 GA
Working Length - 21 ft. / 6400mm
Bending Capacity:
Carbon Steel: 0.059” thick @ 58,000 PSI Yield(1.50mm @ 400 N/mm²)
Carbon Steel: 0.027” thick @ 105,000 PSI Yield(0.70mm @ 725 N/mm²)
Stainless Steel: 0.048” thick @ 72,500 PSI Yield(1.25mm @ 500 N/mm²)
Aluminum: 0.078” thick @ 27,500 PSI Yield(2.00mm @ 190 N/mm²)
Main Frames (No.) - 6
Driven Hinges – Lower Beam (No.) - 5
Bending Beam Travel - 150°
Back Gauge Depth - 0.400-39.3” (10-1000mm) with spring steel finger
Incoming Power - 460V, 3 Phase, 60 Hertz, WYE Connection
Dimensions (Approx) - 307"W x 70"D x 79"H
Weight (Approx) - 16,000 Lbs (8 tons)
Equipped With
- BMS Multi-Touch Graphical Touchscreen Control
- Slitter on a linear rail mounted to the frame for slitting of blanks
- Foot pedal can operate the slitter
- Electro-kinematic actuation of hinges for the bending – no hydraulics
- Inclined Bending beam
- Clamping Beam is provided with a relief for hem clearance
- Removable Bending Inserts for Lower Bending Beams for thicker material
- Multi-function Foot Pedal for Clamping and Bending Control
- Back gauge is driven through an electric motor transferred through timing belts
- Five adjustable Fingers (Stops) on the back gauge along the moveable rail
- Material supports between fingers are provided with polyethylene coating
- Installation review and on-site training (3 days) * Tech Expenses eExtra
*** Formal factory quote upon request.
TERMS:
FOB Moundridge, Kansas, Includes Manufacturer’s Warranty, Full Payment due prior to shipment. Price includes machine prep and loading on buyers truck. Immediate availability, stock machines subject to prior sale. All specifications are assumed to be correct but must be confirmed by the purchasing entity.
