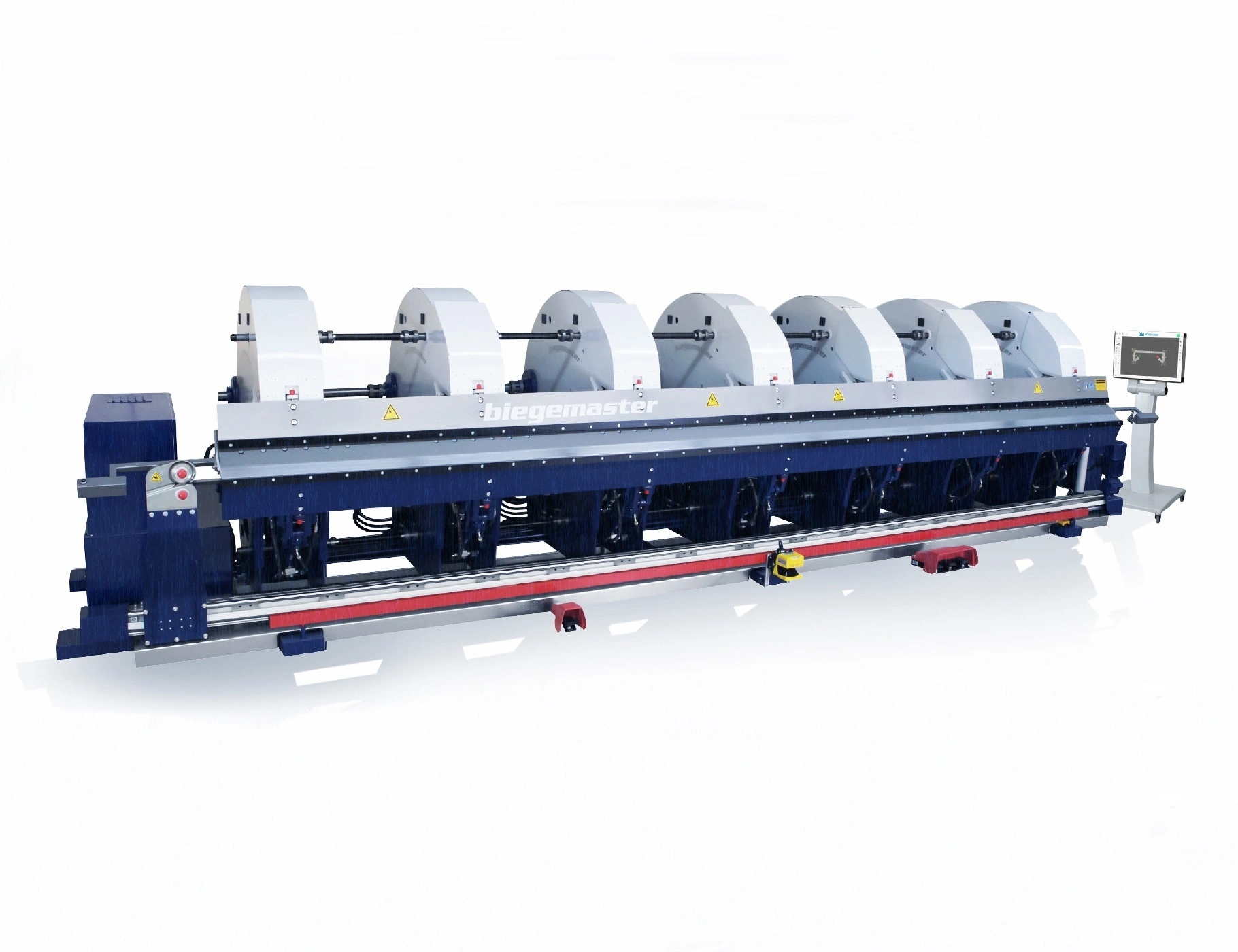

NEW BIEGEMASTER XBEND 6.1.50
Overview
Bradbury Biegemaster XBend Double Folder with 21' x 16 GA Capacity, Touchscreen Controller, part library, ability to draw profiles and modify saved or newly created parts. Includes Servo driven hydraulic pump for quick operation of the folder, angled clamping beam for forming various profiles on the folder, and Fully Automatic Back Gauge.
Specs
Brand - Biegemaster/Bradbury
Model - XBend 6.1,50 (16 gauge Capacity)
Type - Double Bend Long Folder
Capacity - 21' X 16 GA
Working Length - 21 ft. / 6400mm
Bending Capacity:
Carbon Steel - 0.059” thick @ 58,000 PSI Yield (1.50mm @ 400 N/mm²)
Stainless Steel - 0.048” thick @ 60,000 PSI Yield (1.25mm @ 415 N/mm²)
Aluminum - 0.078” thick @ 27,500 PSI Yield (2.00mm @ 190 N/mm²)
Main Frames (No.) - 5
Driven Hinges – Upper Beam (No.) - 5
Driven Hinges – Lower Beam (No.) - 5
Bending Beam Speed - 0-145° , 2.25 Seconds - approximate
Back Gauge Depth - 0.394-49.2” (10-1250mm)
Incoming Power - 460V, 3 Phase, 60 Hertz, WYE Connection
Dimensions (Approx) - 307"W x 87"D x 83"H
Weight (Approx) - 16,600 Lbs (8.3 tons)
Equipped With
- BMS Multi-Touch Graphical Touchscreen Control
- Slitter on a linear rail mounted to the frame for slitting of blanks
- Removable Bending Inserts for Upper and Lower Bending Beams for thicker material
- Hydraulic Package with Servo Bending Beam
- Multi-function Foot Pedal for Clamping and Bending Control
- Safety Scanner protects operator during machine operation
- Material Thickness Adjustment
- Fully Automatic Gripper System
- Tapered Back Gauge with Grippers
- Spare Parts
- Automatic Sheet Loading Table
- Installation review and on-site training (3 days) * Tech Expenses Extra
*** Initial pricing/Specs - Formal factory quote with options details upon request.
TERMS:
FOB Moundridge, Kansas, Includes Manufacturer’s Warranty, Full Payment due prior to shipment. Price includes machine prep and loading on buyers truck. Immediate availability, stock machines subject to prior sale. All specifications are assumed to be correct but must be confirmed by the purchasing entity.
