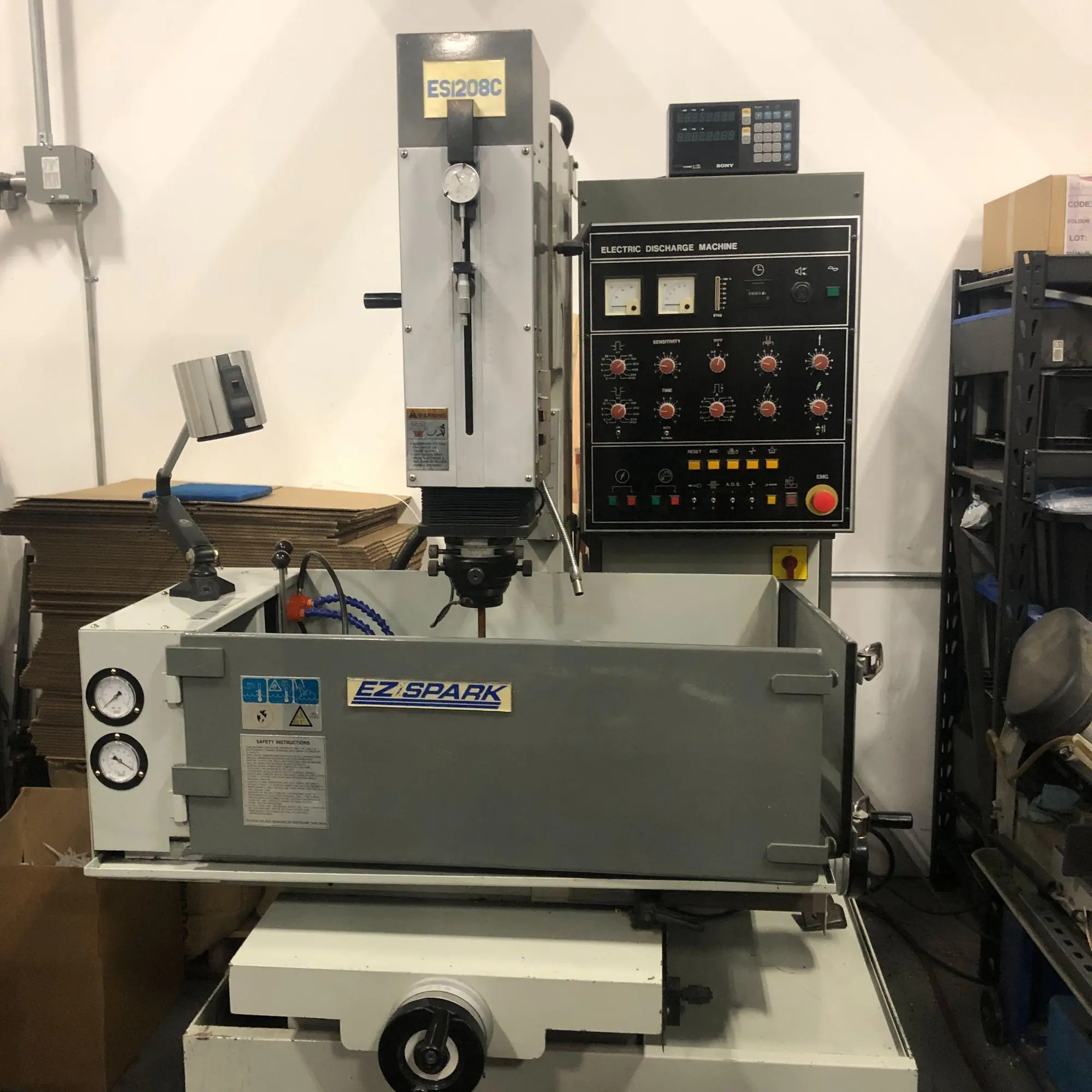

USED 1999 EZ-SPARK ES-1208C

EZ-SPARK ES-1208C Wire EDM, 1999 model in used condition. Features XYZ travel of 11.8" x 7.9" x 7.9". 2100 hours of usage. Ideal for precise machining tasks. Contact for more details.

EZ-SPARK ES-1208C EDM
S/N 9040628 YEAR: 1999

STANDARD SPECIFICATIONS
Usage………………………………………………………...2100 hrs
Control……………………………………………………….P36
X-Travel……………………………………………………..11.8”(300mm)
Y-Travel……………………………………………………..7.9”(200mm)
Z-Travel……………………………………………………...7.9”(200mm)
Table Size……………………………………………………23.6”x 11.8”(600 x 300mm)
Max Table Load……………………………………………..1200 lbs (550 kg)
Coolant Capacity…………………………………………….240 Liters
Voltage………………………………………………………220 Volts
Phase………………………………………………………....3
Frequency…………………………………………………....50/60 Hz
Power………………………………………………………...3.5 KVA
Positional Accuracy………………………………………….0.0001”

EQUIPPED WITH
Sony magnascale DH51-2 digital readout.
Turcite-B lined precision ground V & flat table ways.
Swiss linear bearing ways on Z-axis.
Clamping kit.
Leveling pads.

Specifications are deemed accurate, however, subject to verification or prior sale.
