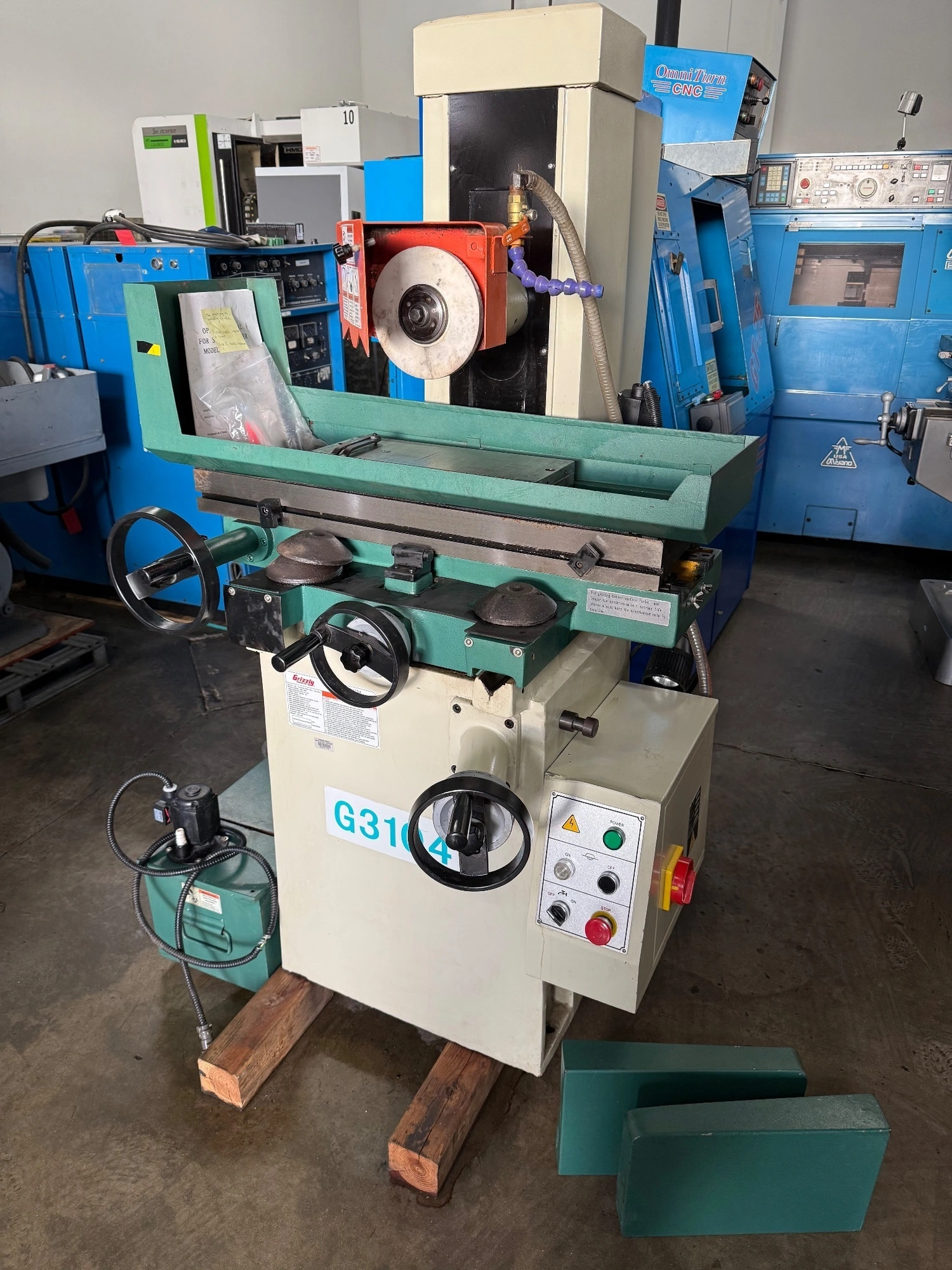

Used Grizzly G3104 Manual Surface Grinder, featuring a 6"x18" table, horizontal 2 hp power, and a 7" grinding wheel with a width of 0.75". Ideal for precise surface grinding tasks.
| Table-W | 6" | 152.4 mm |
| Table-L | 18" | 457.2 mm |
| Horz/Vert | Horz | Horz |
| Power | 2 hp | 1.5 kW |
| Grinding Wheel Width | 0.75" | 19.05 mm |
| Grinding Wheel Dia. | 7" | 177.8 mm |
GRIZZLY G3104 Manual Surface Grinder #8080 #2
SPECIFICATIONS:
Table surface: 6" x 18"
Longitudinal travel: 20-1/2"
Cross travel: 6-7/8"
Maximum distance table to wheel: 10-3/4"
T-slot and size: 1/2" stud, 7/8" head
Grinding wheel: 7" Dia. x 1-1/4" Bore x 3/4" Wide
Column size: 7-1/2" x 12"
Spindle diameter: 1-1/4"
Spindle speed: 3450 RPM
Motor: 2 HP, 110V/220V
Overall dimensions: 61" W x 42-3/4" D x 63" H
Approximate shipping weight: 1429 lbs.
