ACRA AM-3SAC vertical milling machine available. This used model offers precision for a variety of projects. Ideal for enhancing your workshop's capabilities.
| Table-W | 10" | 254 mm |
| Table-L | 54" | 1,371.6 mm |
| Travel-Long | 39.5" | 1,003.3 mm |
| Travel-Cross | 16.5" | 419.1 mm |
| Power | 5 hp | 3.7 kW |
| RPM | 4,200 RPM | 4,200 RPM |
| Taper | R8 | R8 |
| Weight | 3400 lbs | 3400 lbs |

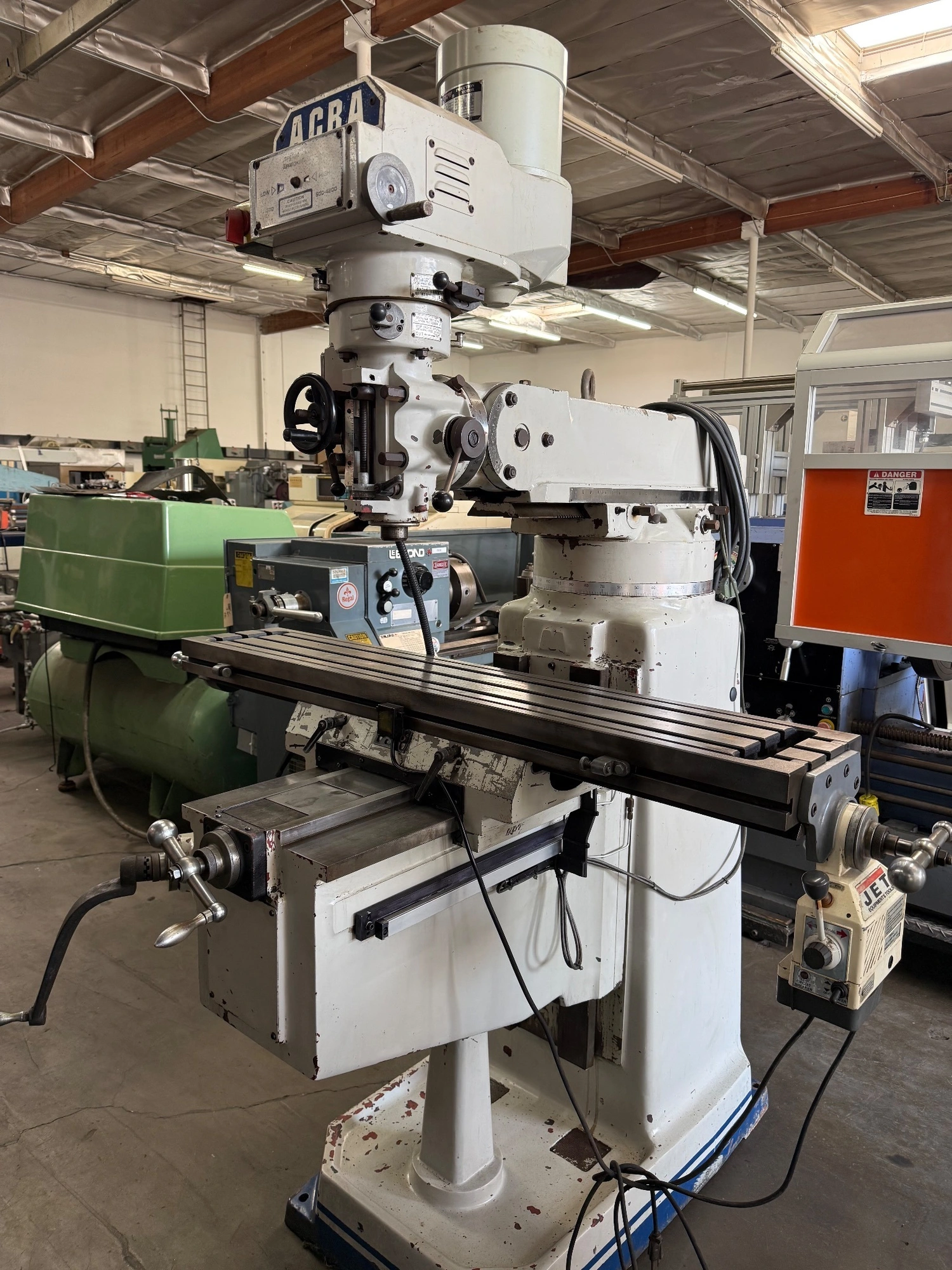

ACRA AM-3SAC Vertical Milling Machine #8075 #1
SPECIFICATIONS:
Table Size: 10" x 54"
Travels (X/Y/Z): 39.5" (Longitudinal) / 16.5" (Cross) / 16" (Knee)
Spindle Taper: R8
Spindle Speeds: Up to 4,200 RPM (variable)
Motor: 5 HP
Quill Travel: 5"
Quill Feeds: 0.0015", 0.003", 0.006"
Weight: 3,400 lbs.
EQUIPPED WITH:
X-Axis Power Feed
One Shot Lube
Variable Speed Head
