8" x 11.5" Marvel/Spartan “PA10/2” Automatic Horizontal Band Saw - Programmable Touch Screen Control - Hydraulic Blade Tensioning - Hydraulic Vises - 10" Rounds
| Rect-Cap (H) | 8" | 203.2 mm |
| Rect-Cap (W) | 11.5" | 292.1 mm |
| Rounds-Cap | 10" | 254 mm |
| Power | 5 hp | 3.7 kW |
| Type (Auto, Manual, Semi) | 'Auto' | 'Auto' |
| Blade Width | 1.25" | 31.75 mm |
| Blade Thickness | 0.45" | 11.43 mm |
| Blade Length | 138" | 3,505.2 mm |
| Dimensions | 77" x 75" | 77" x 75" |
| Weight | 3400 LBS | 3400 LBS |

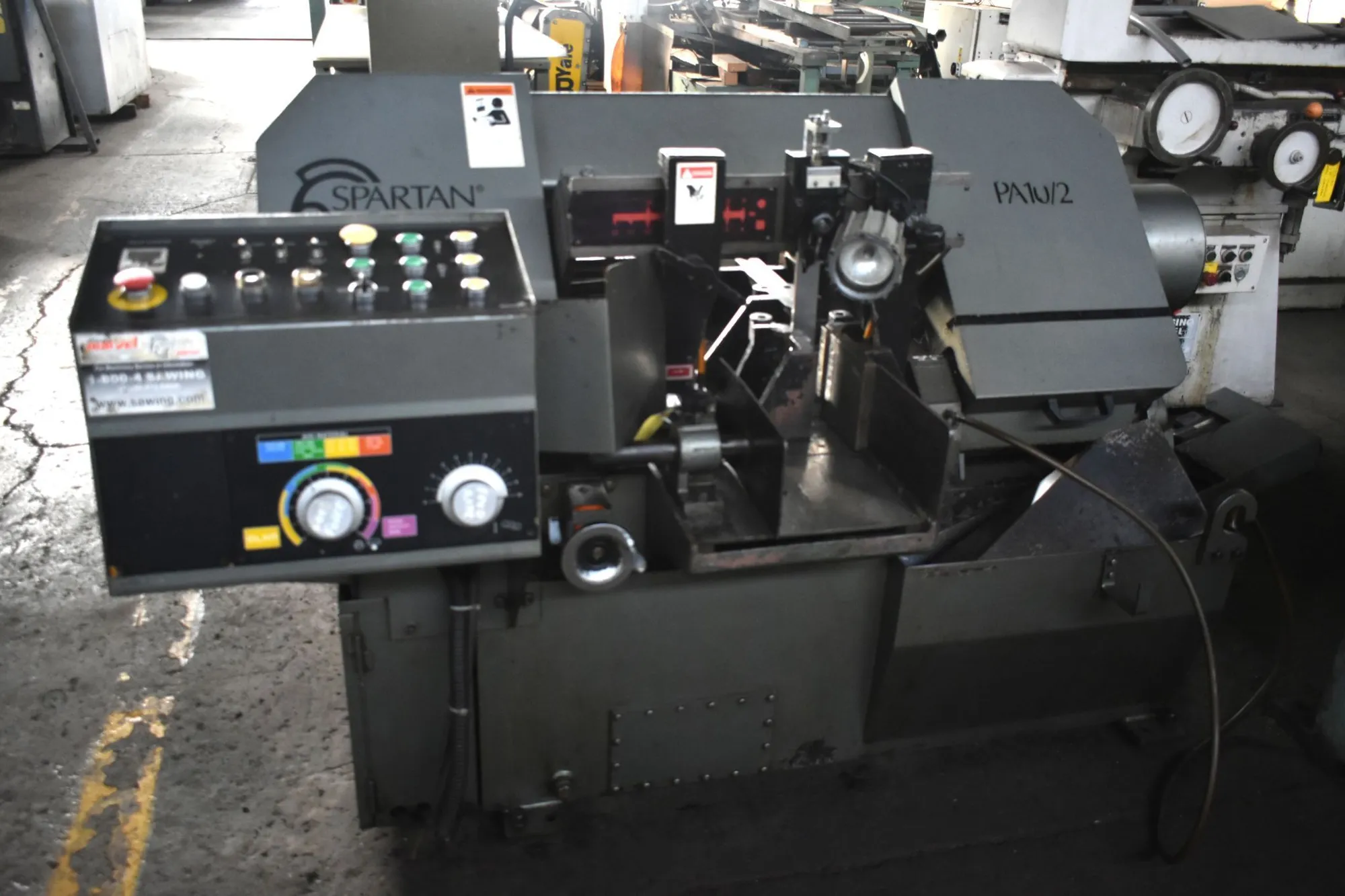

8” X 11.5” MARVEL/SPARTAN AUTOMATIC HORIZONTAL BAND SAW
Serial No DPA100643, Model PA10/2
EQUIPPED WITH:
AUTOMATIC Hydraulic-Driven Stock-Feed Table
w/MULTIPLE Indexing
Hydraulic Stock-Feeding and Clamping Vises
Hydraulic Band Saw Up-Feed and Down-Feed
Hydraulic Band Tension
60" Exit Conveyor - Support Stand
CATALOG SPECIFICATIONS:
Flat Stock Capacity, Maximum 8" x 11.5"
Round Stock Capacity, Maximum 10"
Band Length 11'6"
Band Width 1.25"
Band Thickness .045"
Index Length, Maximum 16"
Band Speeds, Variable 60 to 330 SFPM
Feed Force, Infinitely Variable 0 to 300 LBS
Load Capacity, Maximum 5600 LBS
Blade Motor, Horsepower 5 HP
Hydraulic Motor, Horsepower 1 HP
Overall Dimensions, W x D 77" x 75"
Weight, Approximately 3400 LBS
F.O.B. OUR WAREHOUSE
