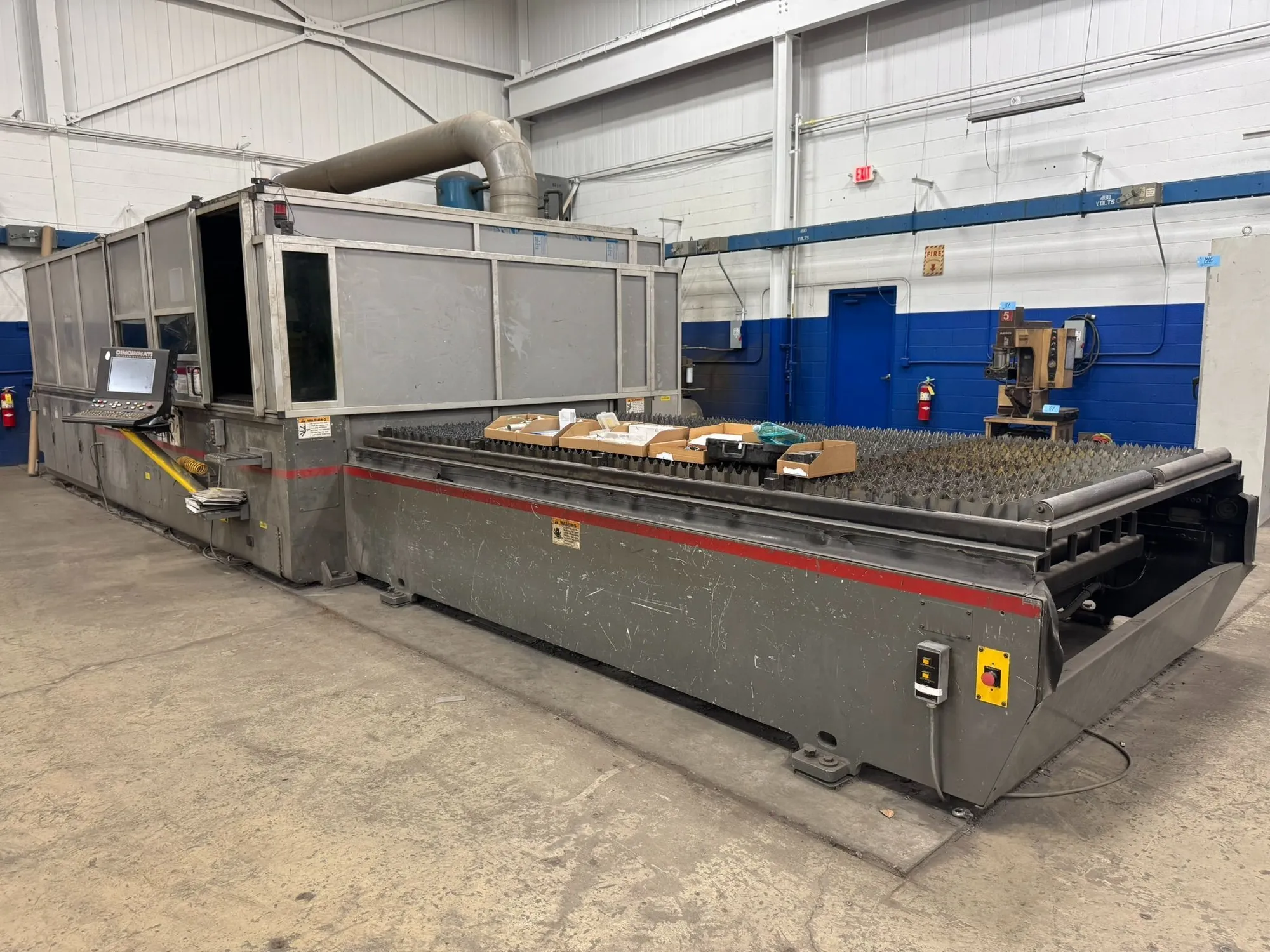

Used 2013 Cincinnati CL-940 CNC fiber laser cutting system. Features 6' x 12' table, 4,000W power, and rapid speeds up to 8,500 IPM. Includes touch screen control, dual shuttle tables, and Koolant Koolers chiller. Ideal for precision work.
| Sheet-W | 6' | 1,828.8 mm |
| Sheet-L | 12' | 3,657.6 mm |
| Wattage | 4000 w | 4,000 W |
| IPM | 8500 ipm | |
| X | 148" | 3,759.2 mm |
| Y | 74" | 1,879.6 mm |
| Z | 10" | 254 mm |
| Control | CNC (Cincinnati) | CNC (Cincinnati) |
Brand: Cincinnati
Model: CL-940
Specifications:
Table size: 6' x 12'
X-Axis Travel: 148"
Y-Axis Travel: 74"
Z-Axis Travel: 10"
Maximum workpiece weight: 2,292 Lbs.
Rapid traverse speeds: X & Y axis: 8,500 IPM, 12,020 IPM simultaneously
Z axis speed: 1,700 IPM
Acceleration X axis: 16.5 G
Acceleration Y axis: 16.5 G
Acceleration Z axis: 2 G
Cincinnati windows based 15" touch screen control
IPG Model YLS-4000 4,000 watt fiber laser generator
Dual shuttle tables
Flying Optic Positioning System
A/C brushless permanent magnet linear servo motors
Koolant Koolers Chiller Unit
34 KVA Transformer
Machine sold As-Is Where-Is
