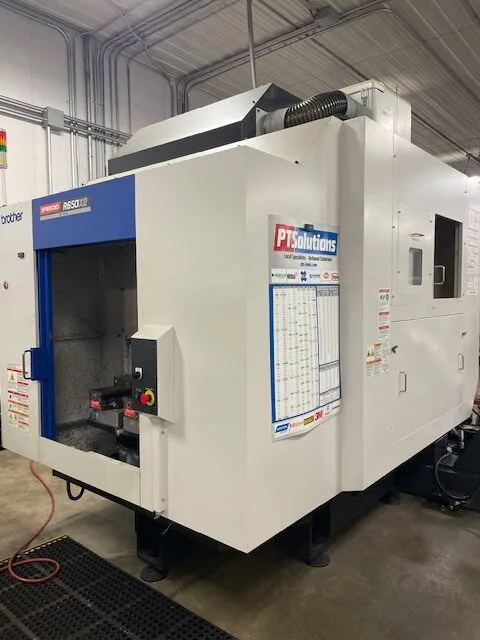

2022 BROTHER SPEEDIO R650X2
Overview
Description
CNC-C00, 16000 RPM, 10 HP, BT-30, 40 Tools, TSC, Fourth Axis Table, Tool Presetter
Specifications
X-Axis: 25.59"
Y-Axis: 15.75"
Z-Axis: 12"
Table Size: 23.6" x 11.8"
Spindle Speed: 16,000 RPM
Spindle Taper: BT 30
Spindle Motor (10 Min / Cont): 9.8 / 6.5 HP
Tools: 22
Table Load Capacity: 265 lbs.
Rapid Traverse Rates: 1969 IPM
Max Tapping Speed: 6000 RPM
Max Tool Diameter: 3.1"
Max Tool Length: 7.9"
Max Tool Weight: 6.6 lbs.
Machine Weight: 6000 lbs.
Pallet Change Time: 2.8 Seconds
Spindle Nose to Table Top: 7.9" - 19.9"
Tool Change Time (T - T / C - C): 0.8 / 1.6 Seconds
Equipped With

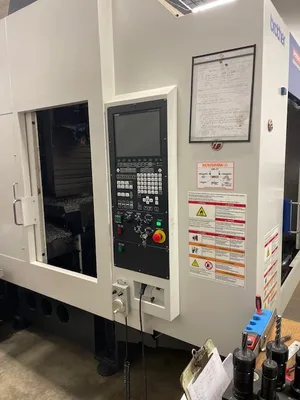

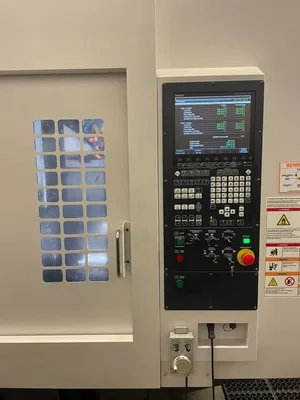

BROTHER CNC-C00 Control
12.1" Color LCD
USB Port
Ethernet Function

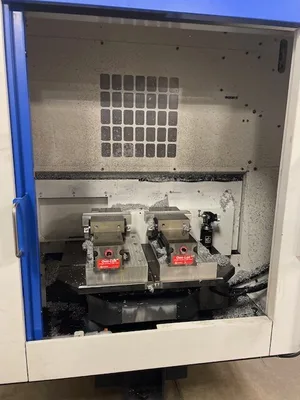

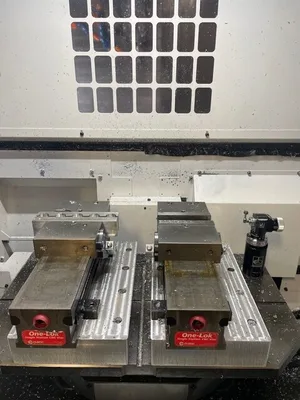

Spin-Type High Speed Two Pallet Changer

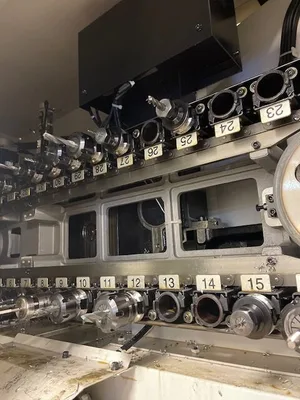

40 Position Turret
16000 RPM Spindle Speed

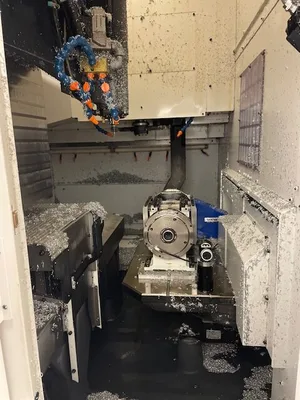

T200A Fourth Axis Rotary Table
Through Spindle Coolant (1000 PSI)
Tool Presetter
Renishaw OMP40 Probe

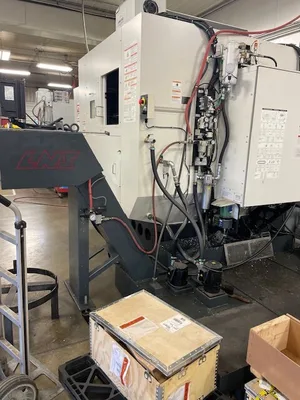

LNS Turbo MH250 Chip Conveyor
Mist Collector
Remote Jog Handle
Work Light Kit
High Capacity Coolant Tank
Manufacture Date February 2022

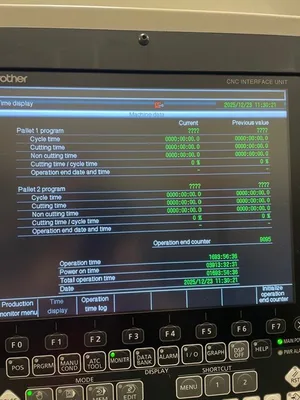

1693 Operation Time
3913 Power On Time
1693 Total Operation Time
