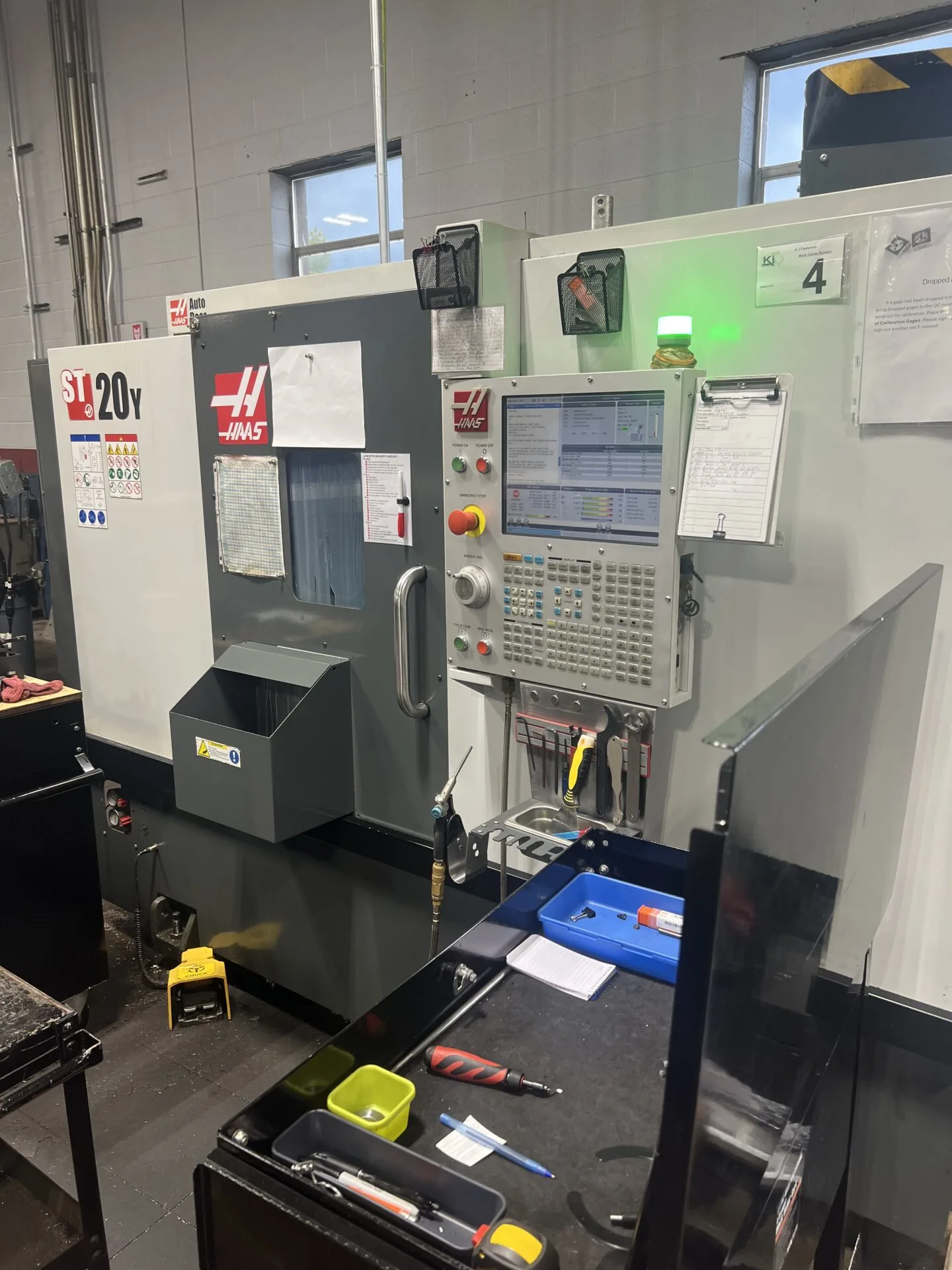

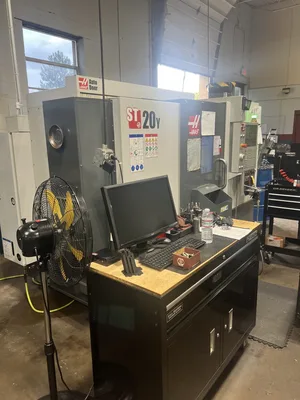

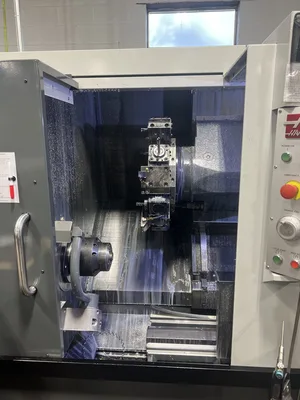

2019 HAAS ST-20Y

2.5" Bar, 8" Chk, 12" Max Dia, 21" Length, 20 HP, 4000 RPM, 24 Tools, Y-Axis, Tailstock, Tool Presetter, APC, Chip

Chuck Size: 8"
Max Diameter Bar Capacity: 2.5"
Max Swing Over Front Apron / Cross Slide: 31.75" / 20.75"
Max Machining Length: 21"
Spindle Motor: 20 HP AC
Spindle Speed: 4000 RPM
Spindle Nose: A2-6
Tools: 24
Milling Speed: 6000 RPM
X-Axis Travel: 9.3"
Z-Axis Travel: 21"
Y-Axis Travel: +/- 2.0"
Machine Dimensions (L x W x H): 142" x 90" x 89"
Machine Weight: 10,500 lbs.
Max Turning Diameter: 12"
Spindle Torque: 150 ft. lbs.
Tailstock Taper: MT#4

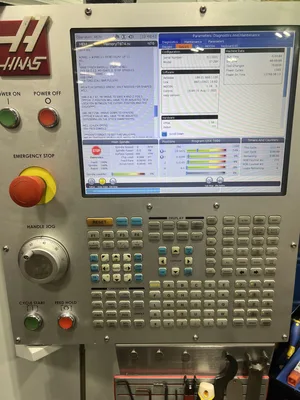

HAAS CNC Control
15" Color TFT
USB Port
Ethernet Capability
C & Y-Axis Milling Capability
6,000 RPM Milling Spindle Upgrade
8" Hydraulic Chuck

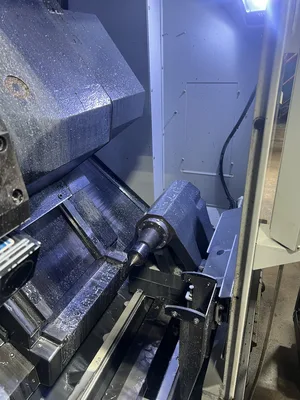

Fully Programmable Hydraulic Tailstock
Auto Parts Catcher
High Pressure Coolant (300 PSI)
Automatic Tool Presetter

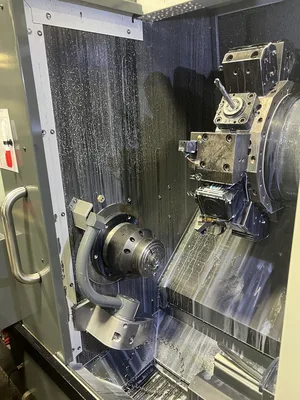

24 Position Turret
Spindle Orientation
Rigid Tapping
Chip Conveyor (Belt Type Right Side Exit)
(1) OD Live Holder
(1) Face Live Holder
(11) Spindle Liners
Manufacture Date July 2019
9059 Servo Time
4105 Motion Time
3619 Spindle Time
