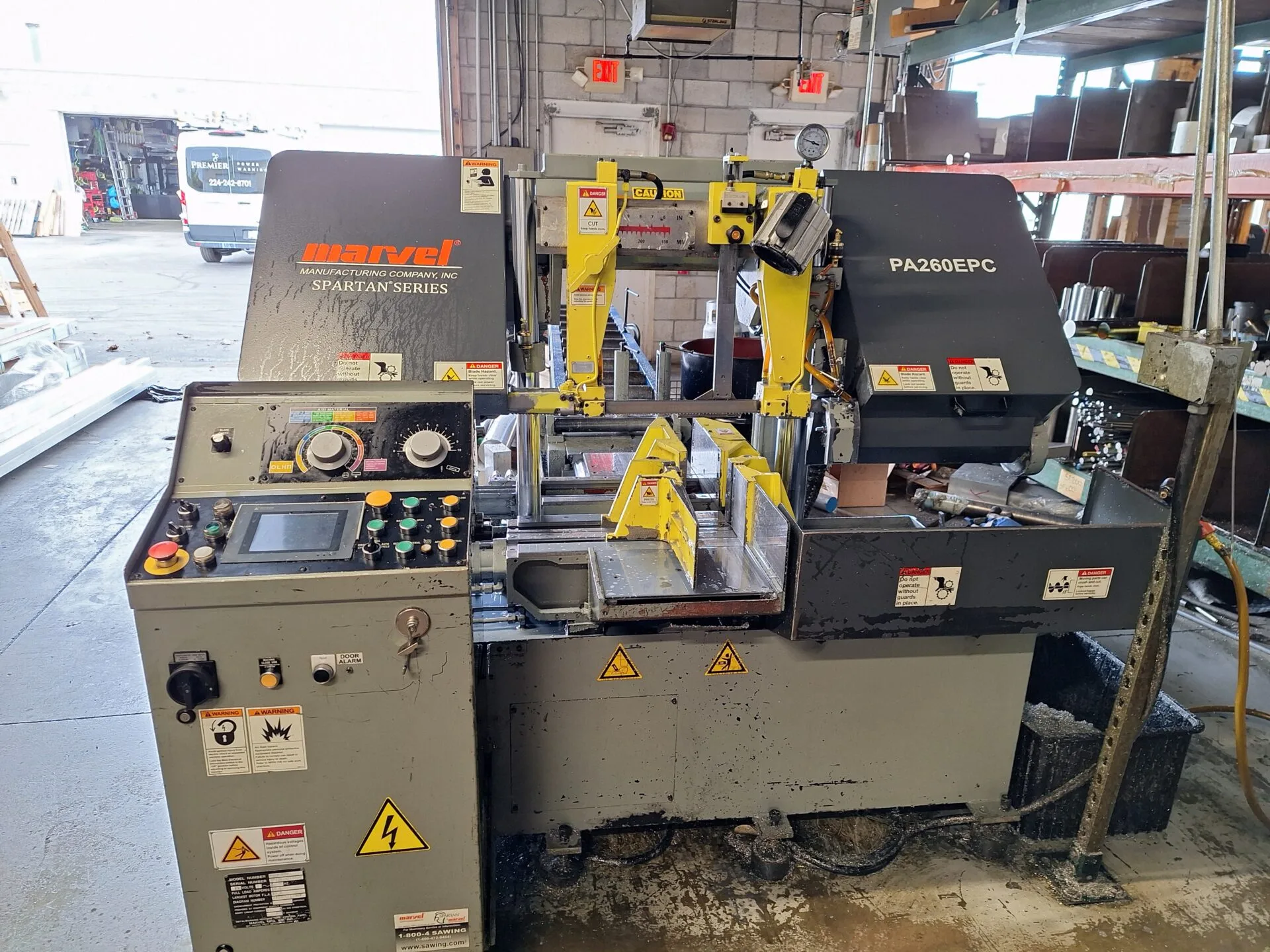

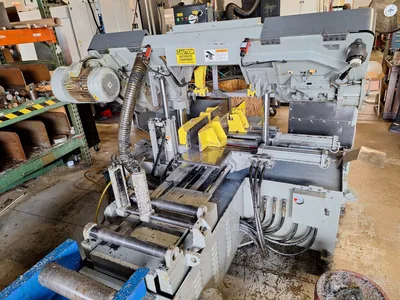

2018 AMADA MARVEL SPARTAN SERIES PA260EPC DUAL COLUMN HORIZONTAL BAND SAW

Band Saw Capacity (Rectangular): 12" x 10"
Band Saw Capacity (Round): 10" Diameter
Blade Size: 12'11" x 1.34" x 0.043"
Blade Tension: 30,000 - 32,000 PSI
Coolant Tank Capacity: 22.5 Gal.
Gage Pressure: 171 - 213 PSI
Hydraulic Pressure: 427 PSI
Main Motor: 5 HP
Shuttle Travel (Multiple): 141.7"
Shuttle Travel (Single): 15.7"
Speed: 65 - 330 SFPM

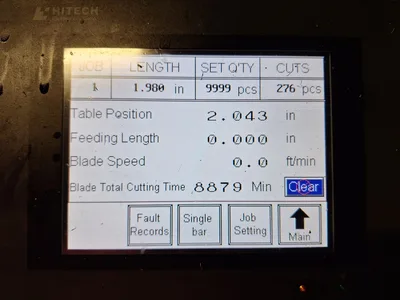

HITECH Operator Touch Panel
Hydraulic Down Feed
Hydraulic Shuttle Feed
Hydraulic Vice Jaws
Motion Detector Blade Shut Off
Automatic Chip Removal
Work Light
