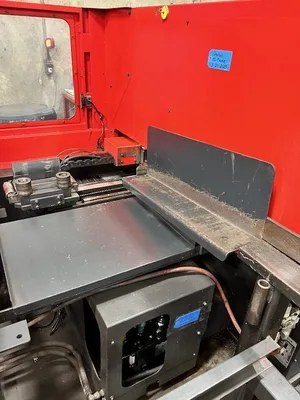

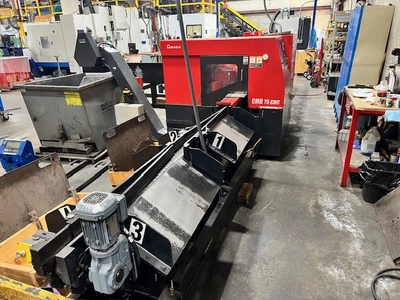

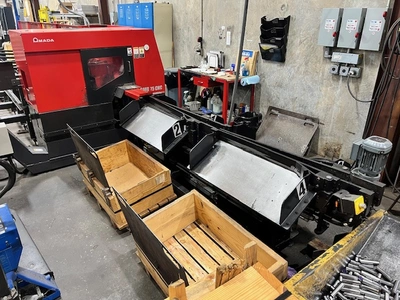

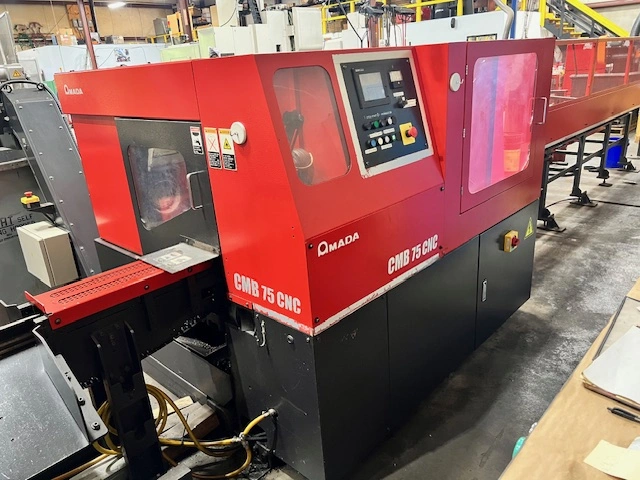

2016 AMADA CMB 75 CNC COLD SAW

CNC Cold Saw, Circular Saw Blade, Round & Rectangle Cutting, High speed, High Precision (.0004"), Automatic Bar Feed, Bar Unloader, Chip Conveyor, J.F. Berns Chamfer Machine

Blade Motor: 10 HP
Blade Speed: 56 - 225 RPM
Blade: 11.22" x 1.57" x .079"
Cut-off Length: .394" - 236.22"
End Trimming Length: .394" - 1.57"
Horizontal Clamping Pressure: 3417 LBS
Machine Dimensions (W x L x H): 65.6" x 82.7" x 62.3"
Machine Weight: 4409 LBS
Material Length: .394" - 472.44"
Rectangular Material Edge Length: .394" - 2.36"
Round Material Diameter: .394" - 3"
Stroke: 28.1"
Vertical Clamping Pressure: 876.76 LBS

Cut-In Control CNC
LCD Touch Screen

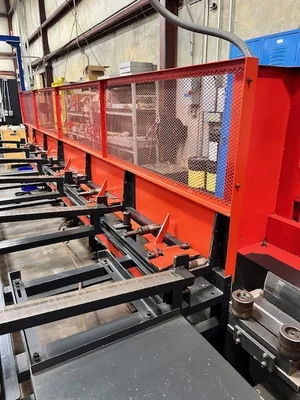

Automatic Bar Feed

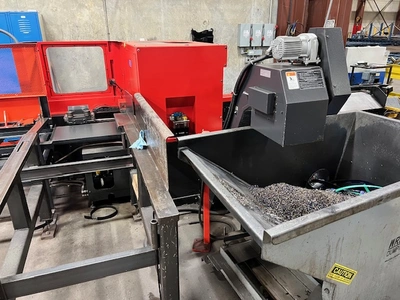

Chip Conveyor

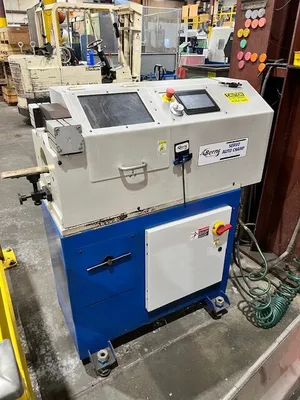

J.F. Berns Servo Auto Champ 2 Chamfering Machine
Auto Loader

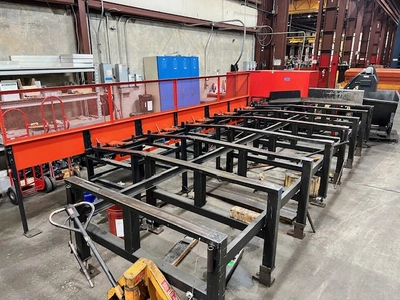

High Capacity Table
Delivery Chute
Short Cycle Time
High Precision Cutting (+/- 0.0004")
