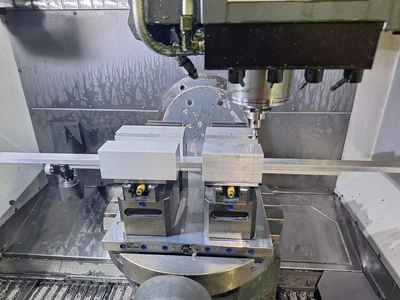

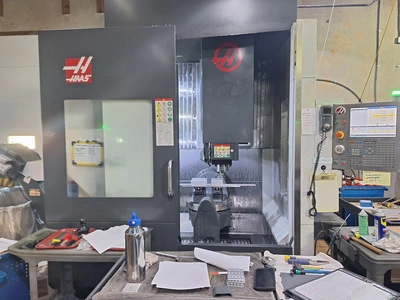

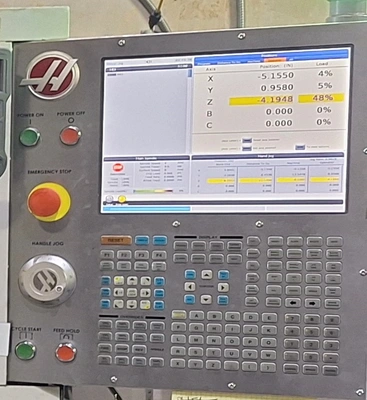

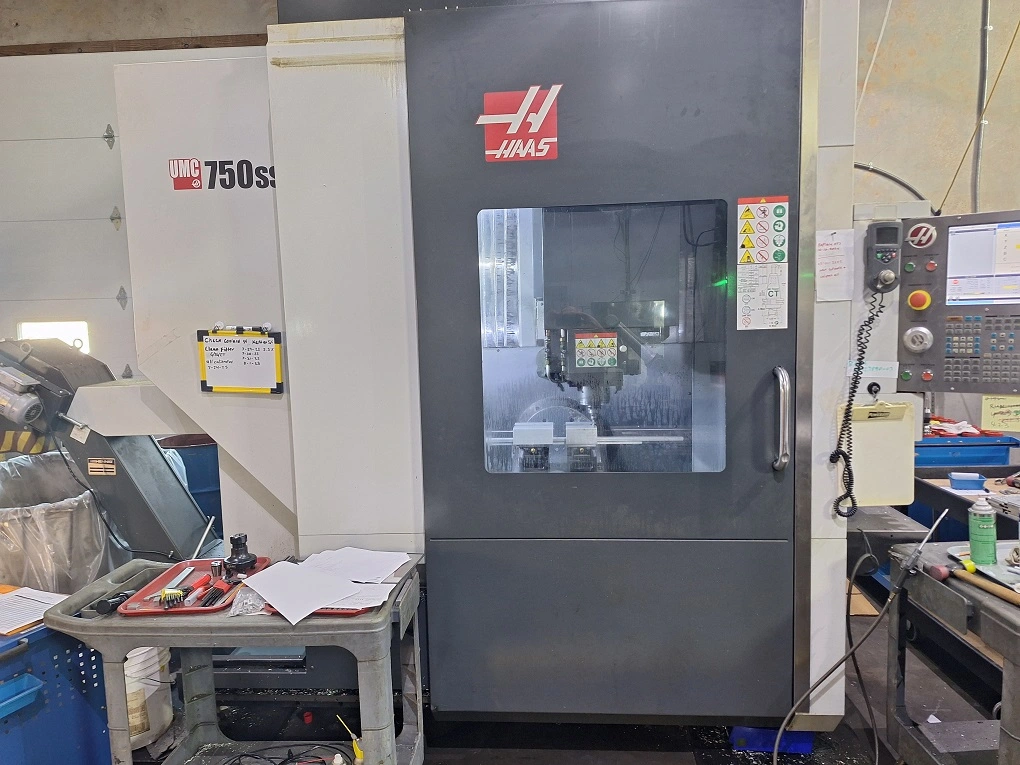

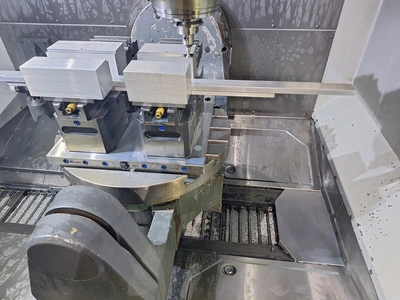

2018 HAAS UMC-750SS 5-AXIS

30.20.20", 15000 RPM, Cat 40, 40 SMTC, 30 HP, 5-Axis Trunnion, Probes, Through Spindle Coolant, Chip

X-Axis: 30"
Y-Axis: 20"
Z-Axis: 20"
B-Axis (Table Tilt): -35 to 110
C-Axis (Table Index): .001 Deg
Table Size: 24.8" x 19.7"
Spindle Speed: 15,000 RPM
Spindle Taper: CAT 40
Spindle Motor: 30 HP
Tools: 40
Table Load Capacity: 660 lbs.
Rapid Traverse Rates: 1200 IPM
Max Tool Diameter: 5" / 3"
Max Tool Length: 12"
Max Tool Weight: 12 lbs.
Machine Dimensions (L x W x H): 162" x 113" x 120"
Machine Weight: 19,200 lbs.
Spindle Nose to Table Top: 4" - 24"
Spindle Torque: 90 ft. lbs.

15000 RPM Optional Spindle Speed
40 Position Side Mount Tool Changer
Wireless Intuitive Probing System
Through Spindle Coolant
Programmable Coolant Nozzle
High Speed Machining
Remote Jog Handle
Macros
1 GB Program Memory
Media Display
Remote Jog Handle with Color LCD
TCPC and DWO
Rigid Tapping
Spindle Orientation
Wireless Networking
Compensation Tables
Visual Programming System
Chip Conveyor
Manufacture Date January 2018
24,621 Power On Time
15,195 Servo Time
8435 Feed Time
3195 Spindle Time
