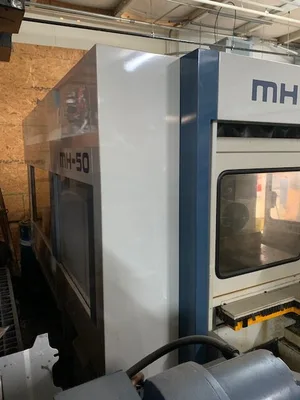

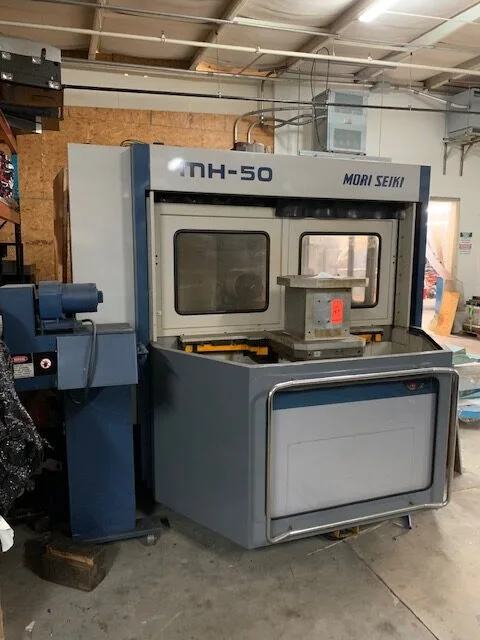

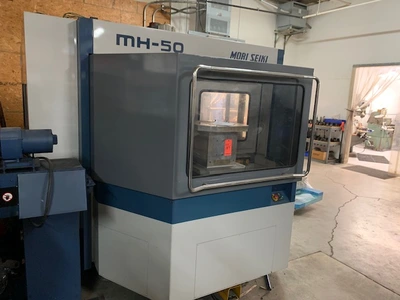

1992 MORI SEIKI MH-50

Fanuc 16MC, 19.7" Plt, 31.26.30", Fourth Axis, 60 Tools, Cat 50, 6000 RPM, 25 HP, TSC, Probe, Chip Conveyor, Box Ways

Pallet Change Time: 9 Seconds
Pallet Load Capacity: 2200 lbs.
Pallet Size: 19.7" (2)
X-Axis: 31.5"
Y-Axis: 25.6"
Z-Axis: 29.5"
Pallet Index: .001 Degree
Spindle Speed: 6000 RPM

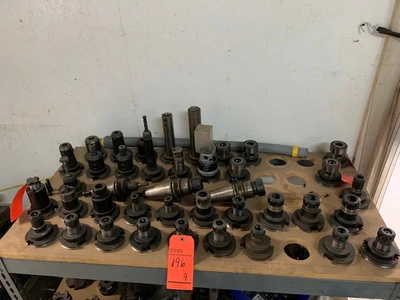

Spindle Taper: Cat 50
Spindle Motor: 25 / 20 HP
Spindle Center to Table Top: 2" - 27.6"
Spindle Nose to Table Center: 5.9" - 35.4"
Tools: 60
Rapid Traverse Rates: 787 IPM
Max Tool Diameter: 4.7" / 9.4"
Max Tool Length: 19.7"
Max Tool Weight: 66 lbs.
Machine Dimensions (L x W x H): 184.1" x 104.7" x 106.3"
Machine Weight: 30,000
Spindle Torque: 352.2 ft. lbs.

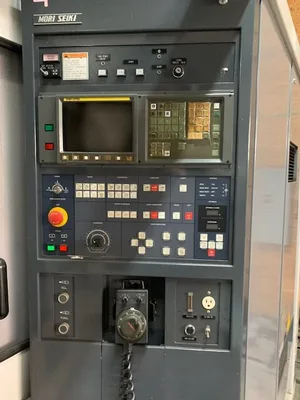

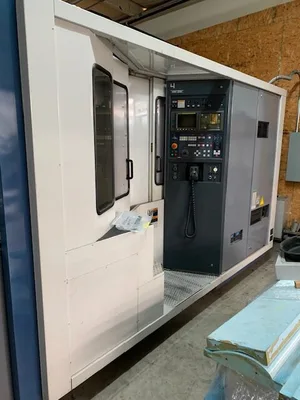

MORIC MF-M5 (Fanuc 15M) CNC Control
9" Monochrome CRT
Through Spindle Coolant

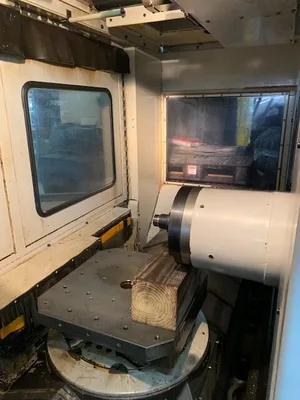

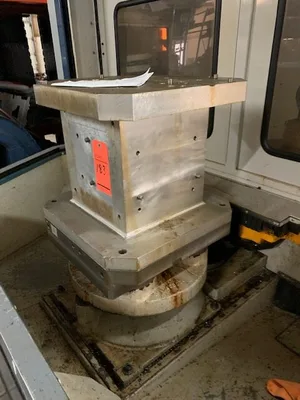

Fourth Axis Rotary Table
Renishaw Touch Probe

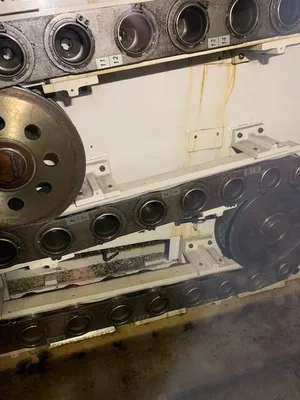

60 Tool Magazine
Turbo Chip Conveyor (Hinge Type Front Left Exit)
Remote Jog Handle

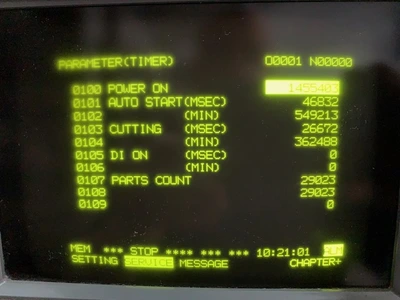

24,256 Power On Hours
9153 Operating Hours
6041 Cutting Hours
Two Speed Gearbox
Heavy Duty Box Way Construction
