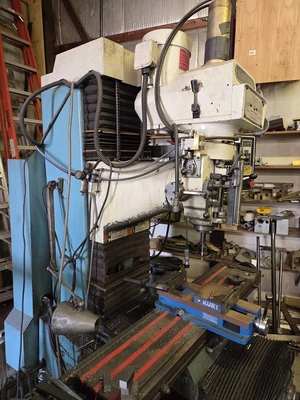

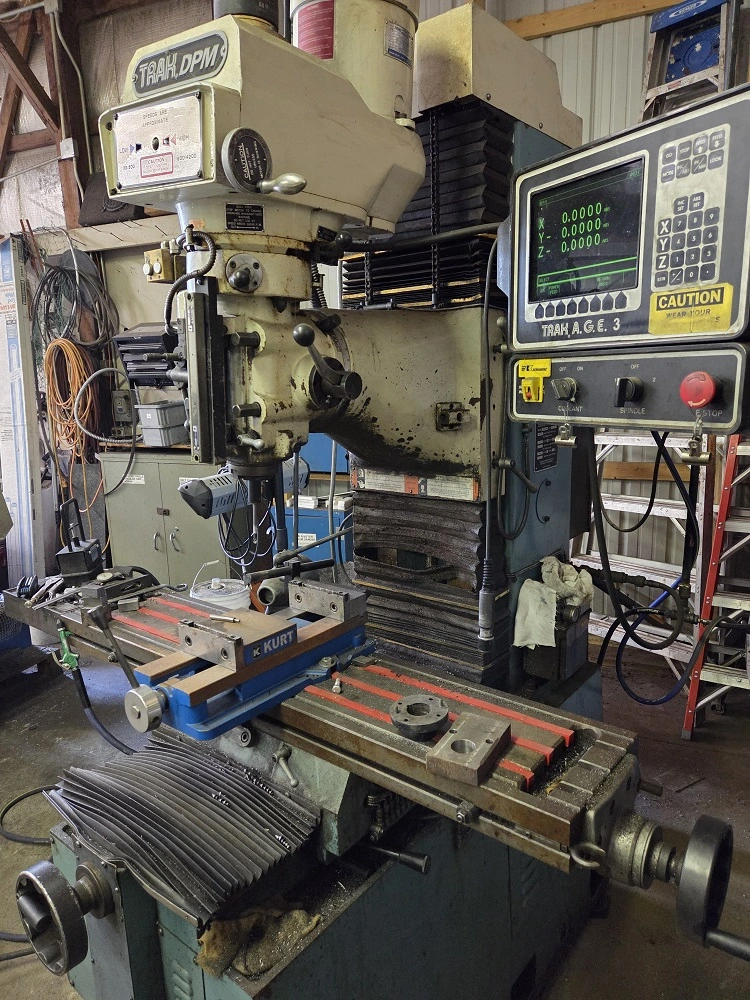

1998 SOUTHWESTERN INDUSTRIES TRAK DPM

AGE 3, 31.17.21", 4200 RPM, #40, Handwheels, Auto Lubrication

X-Axis (Table Travel): 31"
Y-Axis (Saddle Travel): 17"
Z-Axis (Head Travel): 21"
Table Size: 50" x 10"
Spindle Speed: 70 - 4200 RPM
Spindle Taper: CAT 40
Spindle Motor: 5 HP
Max Table Capacity: 1320 lbs.
Machine Dimensions (L x W x H): 70" x 72" x 89"
Machine Weight: 4070 lbs.
Quill Diameter: 3.93"
Quill Travel: 5"
Spindle Center to Column Face: 19.25"
Spindle Nose to Table Top: 0 - 21"

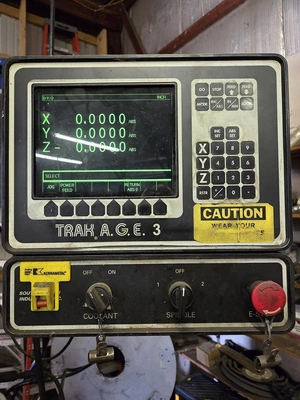

PROTOTRAK A.G.E. 3 CNC CONTROL
9" Monochrome CRT
Power Draw Bar
Manual / Electronic Handwheels
Worklight
Automatic Lubrication
Hardened & Ground Ways
