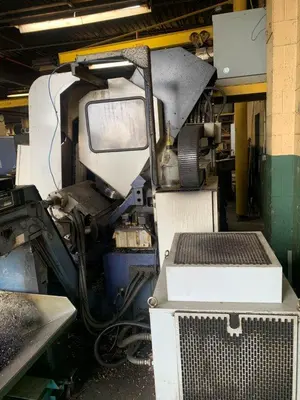

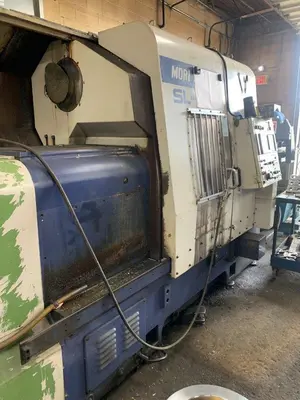

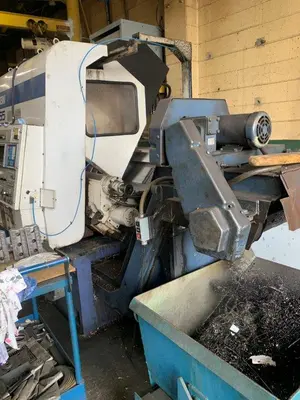

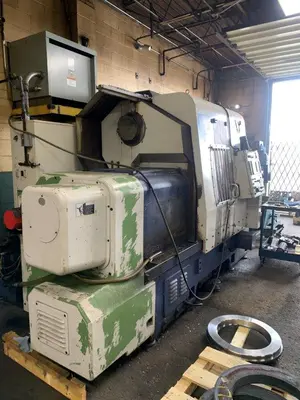

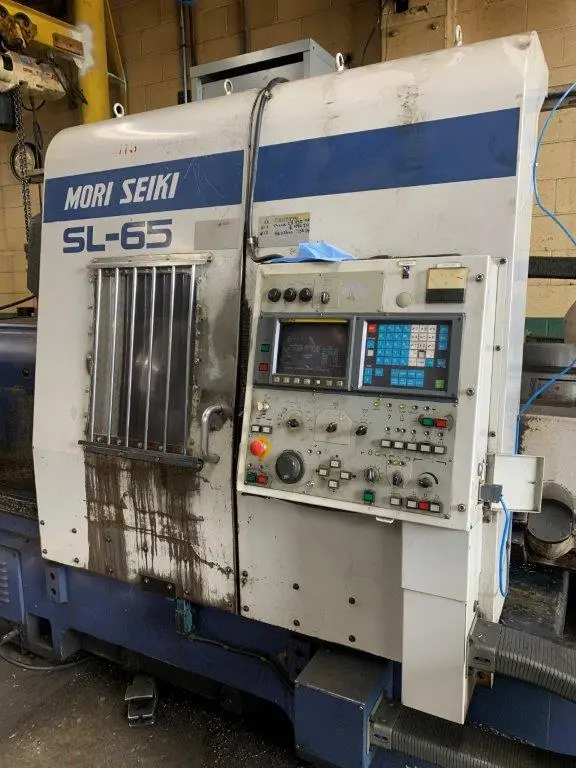

1993 MORI SEIKI SL-65B

Fanuc 0T, 4.75" Bar, 24" Chuck, 50 HP, 1010 RPM, 12 Tools, Tailstock, Chip Conveyor, Gearbox, Box Ways

Chuck Size: 24"
Max Diameter Bar Capacity: 4.75"
Max Swing Over Bed/Front Cover: 35" / 27.6"
Spindle Motor: 50 / 40 HP
Spindle Speed: 4 - 1010 RPM
Spindle Nose: A2-11
Spindle Bore: 6.6"
Tools: 12
Rapid Traverse Rates (X & Y / Z): 197 / 315 IPM
X-Axis Travel: 17.1"
Z-Axis Travel: 33.9"
Turret Index (Single Step / Full): 2.9 / 5.7 Seconds
Machine Weight: 20,000 lbs.
Max Turning Diameter: 32.2"
Max Turning Length: 31.1"
Spindle Torque: 2242 ft. lbs.
Tailstock Taper: MT#4

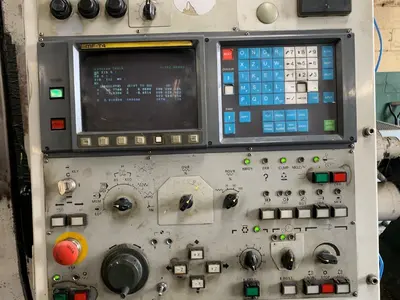

MORIC MF-T4 (FANUC 0T) CNC CONTROL
9" Monochrome CRT
24" Hydraulic Chuck
Tow-Along Tailstock
Chip Conveyor (Side Exit)
Two Gear Range Headstock
Slant Bed Box Way Construction
