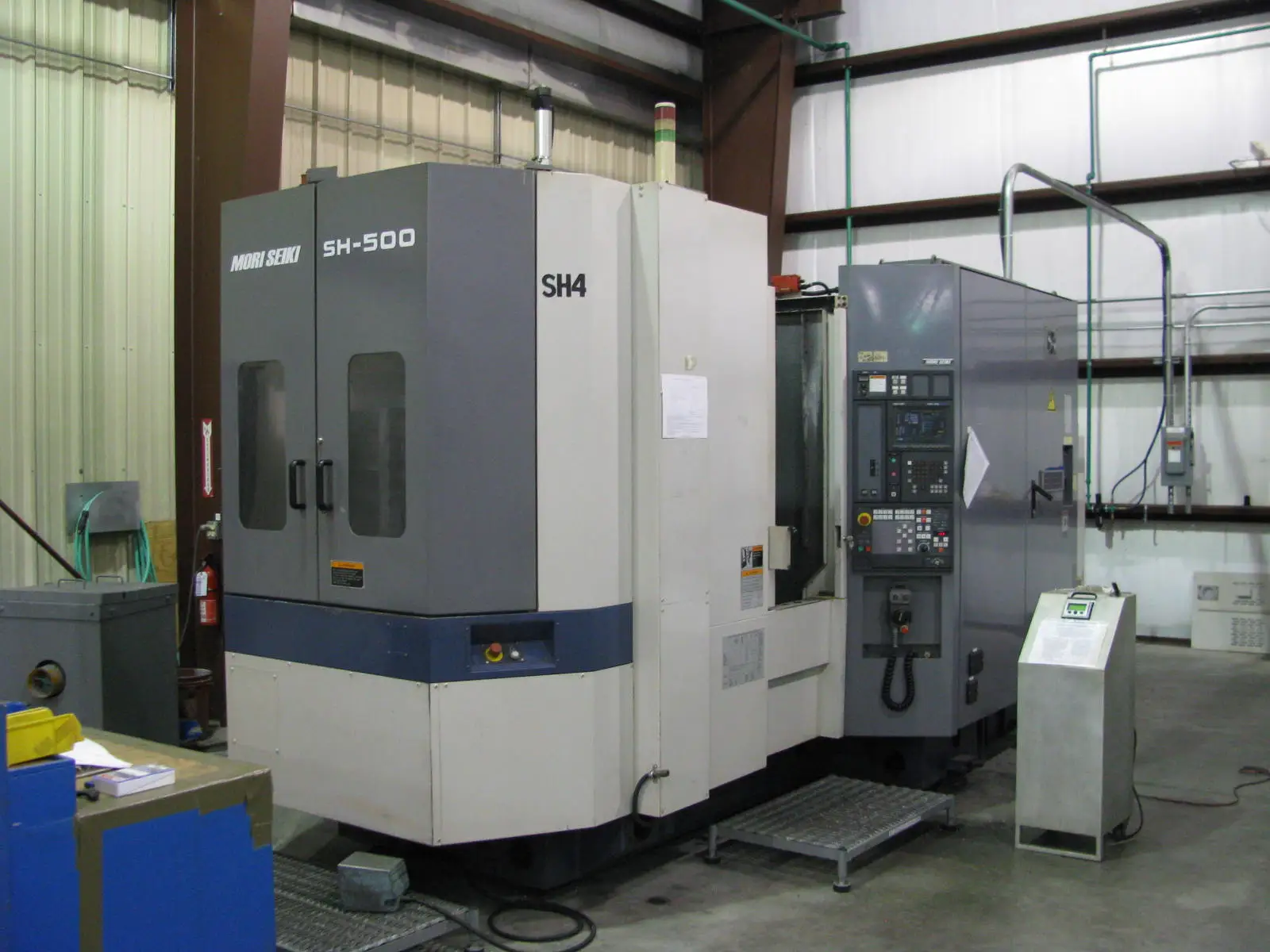

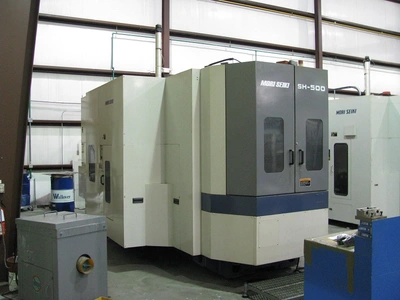

1999 MORI SEIKI SH-500 / 40

Fanuc 18iMA, 19.7" Plts, 25.24.26", 1 Degree Index, 12000 RPM, Cat 40, 20HP, 60 Tools, CTS, Chip

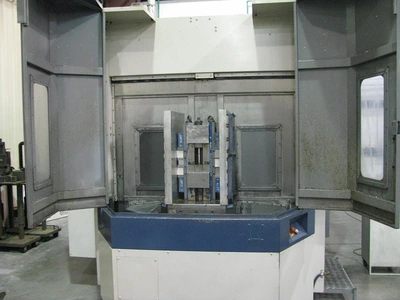

Pallet Load Capacity: 1100 lbs.
Pallet Size: 19.69" (2)
X-Axis: 24.8"
Y-Axis: 23.62"
Z-Axis: 25.59"
Pallet Index: 1 Degree
Spindle Speed: 12,000 RPM
Spindle Taper: CAT 40
Spindle Motor: 20 HP
Spindle Nose to Table Center: 5.9" - 31.5"
Tools: 60
Rapid Traverse Rates: 1259 IPM
Tool Change Time (T - T / C - C): 1.3 / 4.0 Seconds
Max Tool Diameter: 3.93" / 5.9"
Max Tool Length: 14.17"
Max Tool Weight: 26.4 lbs.
Machine Dimensions (L x W x H): 114.2" x 179.1" x 134.9"
Machine Weight: 30,000
Spindle Torque: 150.45 ft. lbs.

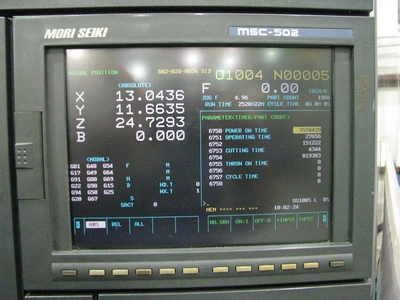

MORIC MSC-502 (FANUC 18iMA) CNC CONTROL
10.4" Color LCD
PC/MCIA Interface
12.000 RPM
1 Degree Index
60 Tool Magazine
Coolant Thru Spindle
Rigid Tapping
Shower Coolant

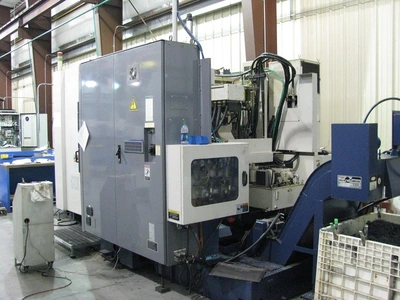

Chip Conveyor (Left Rear Exit)
