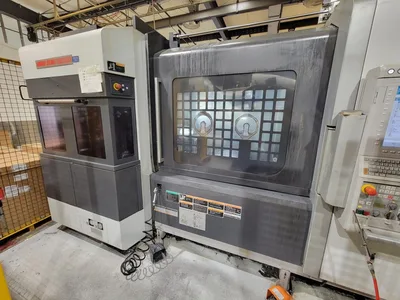

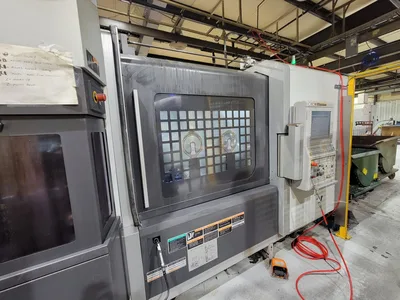

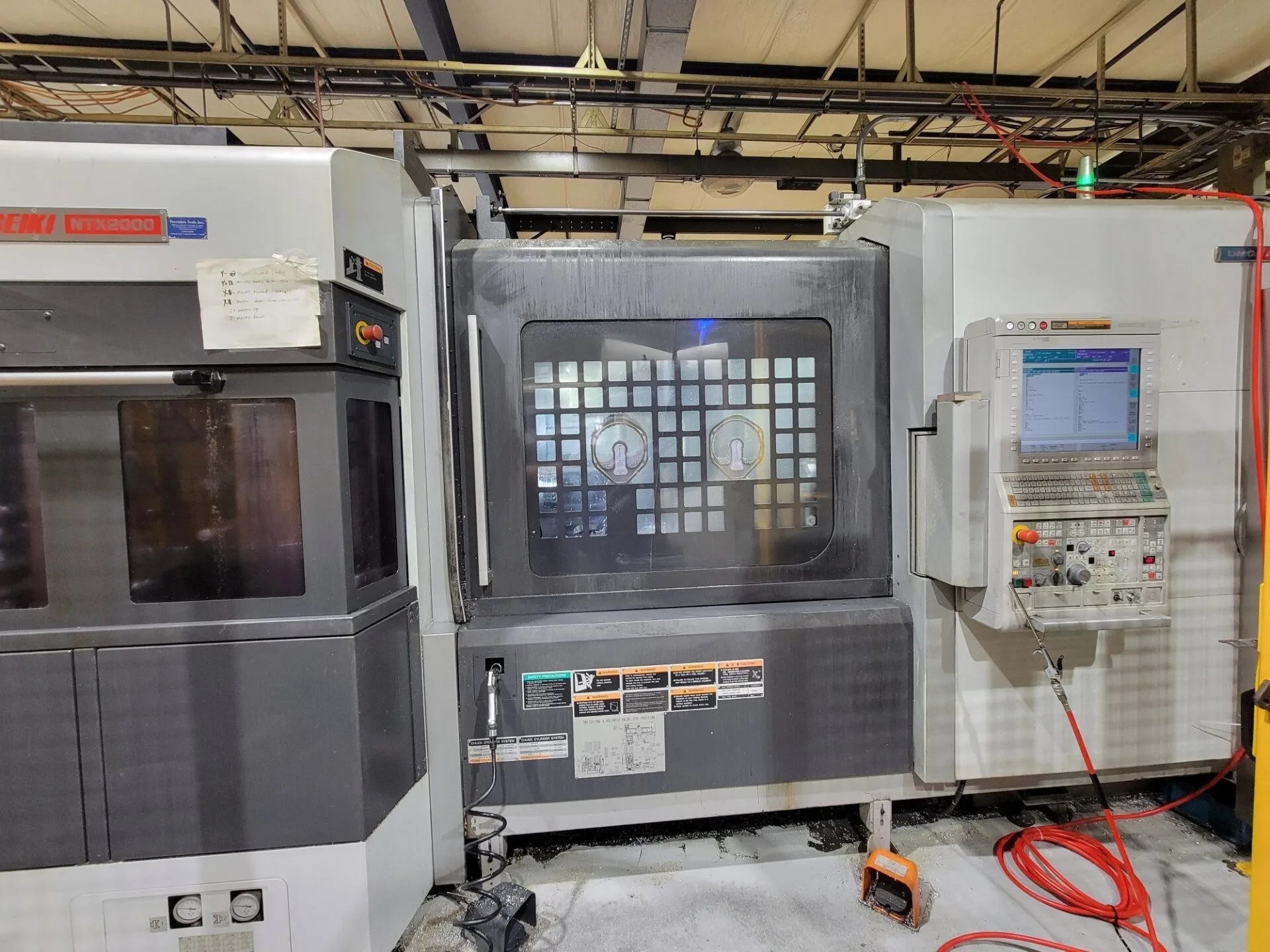

2012 DMG MORI SEIKI NTX-2000/1500SZM
Overview
Description
Fanuc 31iB5, 2.5" Bar, (2) 10" Chks, 26" Dia, 61" Length, 5000 RPM, 30HP, 76 Tools, Live Tool Turret, Tool Presetter, Chip
Specifications
Chuck Size: 10" (2)
Max Diameter Bar Capacity: 2.5"
Max Swing Over Bed: 25.9"
Max Machining Length: 60.6"
Spindle Motor (L & R): 30 / 14.7 HP
Spindle Speed (L & R): 5000 RPM
Spindle Nose (L & R): A2-6
Spindle Bore (L & R): 2.9"
Tools: 76
Milling Motor: 24.7 / 15 HP
Rapid Traverse Rates: 1574 IPM
X-Axis Travel: 19.5"
Z-Axis Travel: 61.4" + 8.5"
Y-Axis Travel: +/- 4.9"
C-Axis Index: .0001 Degrees
B-Axis Index: .0001 Degrees
B-Axis Travel: +/- 120 Degrees
Machine Dimensions (L x W x H): 160.6" x 117" x 103.2"
Machine Weight: 34,716 LBS
Lower Turret Tools: 10
Max Tool Diameter: 2.76" / 4.92"
Max Tool Length: 11.8"
Max Tool Weight: 17.6 lbs.
Max Turning Diameter (Std / B-Axis @ 90 Deg): 24" / 25.9"
Spindle Torque: 264 ft. lbs.
Tool Change Time: 1.125 Seconds
X2-Axis Travel: 6.3"
Z2-Axis Travel: 55.2"
Equipped With

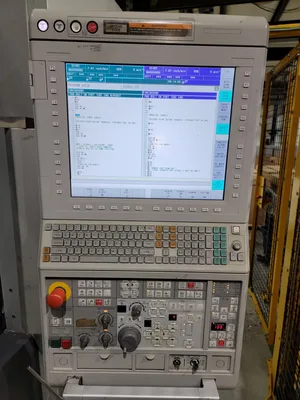

MSX-711IV (FANUC 31iB5) CNC Control

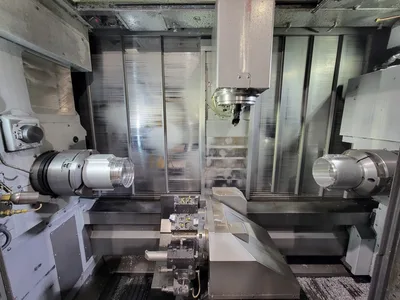

Identical Opposed Spindles with Upper Tool B-Axis Milling Spindle
Lower Turret with Live Tooling
(2) 10" Hydraulic 3-Jaw Chucks
Tool Presetter
In-Machine Optical Workpiece Measuring System
Renishaw OMP60 Spindle Probe
76 Tool Magazine (Capto C6)
Thru-Spindle Coolant
Robot Interface
8 MB Program Storage
Ethernet
Nano Smoothing
TCP
AICC 2
10 External M-Codes
Coordinate Rotation
Auto Door
LNS Turbo Chip Conveyor (Right Side Exit)
Three Color Tower Light
Mfg Date March 2012
