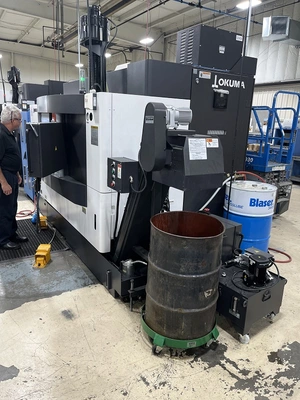

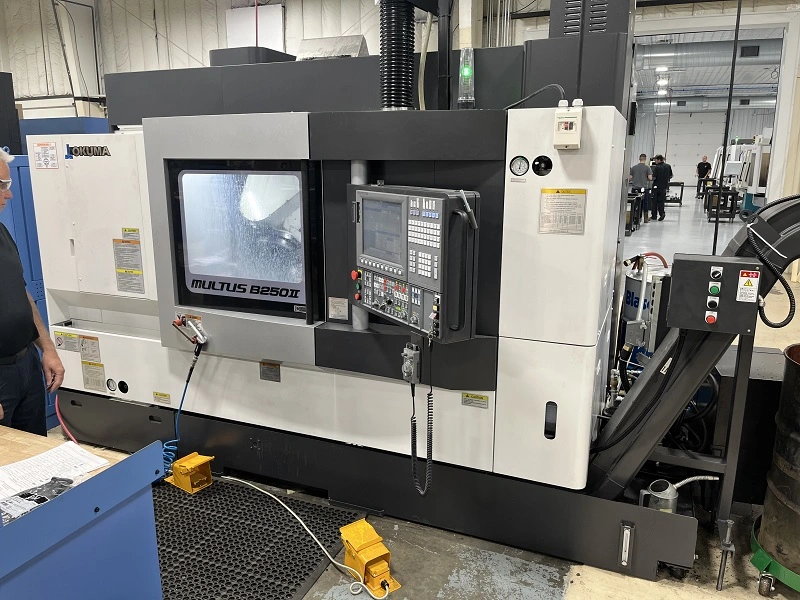

2023 OKUMA MULTUS B250II-1SW/750

OSP-P300SA-H, 2.6" Bar, 8" Chuck, 5000 RPM, 30 HP, H1 Spindle, Y-Axis, Sub Spindle, Big Bore, Touchsetter, Chip Conveyor, Pristine

Chuck Size: 8"
Max Diameter Bar Capacity: 2.6"
Spindle Motor: 30 / 20 HP
Spindle Speed: 5000 RPM
Spindle Nose: A2-6
Spindle Bore: 3.15"
Tools: 60
Sub Spindle Chuck Size: 6"
Sub Spindle Motor: 15 / 10 HP
Sub Spindle Nose: 140 mm Flat
Sub Spindle Speed: 6000 RPM
Rapid Traverse Rates: (X & Z / Y / W) 1575 / 1023 / 787 ipm
X-Axis Travel: 19.69"
Z-Axis Travel: 31.5"
Y-Axis: 7.87"
C-Axis Index (Left & Right Spindles): .001 Degrees
Distance Between Spindles: 40.55"
H1 Index: 0.001 Degrees
H1 Spindle Speed: 50 - 12000 RPM
H1 Swivel: 225 Degrees
Max Tool Diameter: 3.54" / 5.12"
Max Tool Length: 7.87"
Max Tool Weight: 8.8 lbs.
Max Turning Diameter: 23.62"
W-Axis Travel (Sub Spindle): 31.89"

OKUMA OSP-P200SA-H CNC Control
12.1" Color TFT
USB Port
H1 Upper Tool Spindle
Programmable Sub Spindle
Royal Quick Grip 52 Accu-Length Chuck
Kitagawa 6” B206 Chuck Right
Spindle Motor Upgrade 30 HP Left
60 Tool Magazine (Capto C6)
Auto Gauging Renishaw RMP600 RMI-Q Capto C6
Renishaw Inspection Plus Software with GUI - Lathe
Y-Axis Gauging with Slope Gauging
Z-Axis Auto Zero Offset Function Both Spindles
C-Axis Auto Zero Offset Function Both Spindles
Touchsetter Manual
Touch Sensor Gauging Interface Renishaw RMI-Q
Lathe Tool Index Function Multi Edge
Chip Conveyor Right Discharge Hinge High 750
Negative Tool Radius Compensation
C-Axis Torque Skip Function Both Spindles
Multi-Tap Transformer
Remote Jog Handle
Three Color Tower Light
B-Axis 0.001 Degrees
HiG Control
PFC II
B-Axis Compensation
(10) Sets Work Coordinates
(500) Sets Tool Offsets
Lathe Tool Index
Servo Link NC and Spindle
One Touch IGF Advanced
Tape Data In / Out
Home Position B
Plane Conversion
Profile Generation
Synchronized Tapping
Helical Cutting
Slant Cutting
Home Position
Spindle Fluctuate
NC Torque Limiter
GM Code Macro
Center Compensation
Lap 4
Nose Radius 2B
User Task 2
Expanded Auto Chamfer
Arc Thread Cutting
Collision Avoidance System
Programming Help
3D Animation
Animation
C Zero Offset
Y Gauging
Optical Sensor
Pitch Error Compensation
Tool Life Management
Tool Wear Compensation
Tool Offset System
Inch/Metric Switchable
Cycle Time Calculation
NC Work Counter
Cycle Time R. New
NC Work Monitor
Cycle Time Check
Mac Man
DNC T-1
Hi-Cut Pro
Thermal Compensation L2
Spindle Orientation
M-Axis Orient
Spindle Max IL
Coordinate Conversion
Coordinate Calculate
Program Message
Custom-API
OSP-API
Use Tool Disposal
Machining Mode
Nose-R Direction Change
Base Operating Screen
Tool Mac Information
Offset Base Fix
Y-Mode Touch Setter
Axis Active Stop
Variable Lost Motion
Servo Navi L
Rapid Feed Speed Set
Work Weight Set
C-Axis Manual Coordinate
C-Axis Torque Skip
SDF Separate NC
SDF Separate SP
MFU
Spindle Collision Detection
Rotary Notch Fil
Cycle Mode Set
Short Rapid Droop
Gather Aging
Machine Diagnostics
Eco Suite
OSP Suite
Thermal Compensation OilCon
Mac Time Short
Spindle out Monitor
Suite Without Widget
Remaining Time Display
Eco Suite Plus
Chuck Grasp Confirmation
Oil Cooler Alarm A
Ex Brake Release
Spindle Orientation Electric
First Spindle Oil Cooler
Second Spindle Oil Cooler
Coolant Through Spindle
M-Axis Orientation
B-Axis Position LOMP
ATC Type H
Mechanical Lock Door 1
Override Special
Load Monitor
Cycle Time Re.New
Thru and Measure Air
Air Pressure Detection
Program Stop Special
Oil Level Detection
Thru Airblow IL
B-Panel
OSP Chip Convere
High Pressure Coolant Unit 3
C-Axis Brake Torque Limiter
First Spindle C Gain Cut
Second Spindle C Gain Cut
PH Type B
Spindle Diagnostic
Manufacture Date February 2023

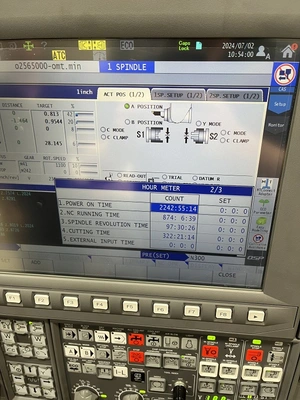

2242 Power On Time
874 NC Running Time
97 Spindle Revolution Time
322 Cutting Time
