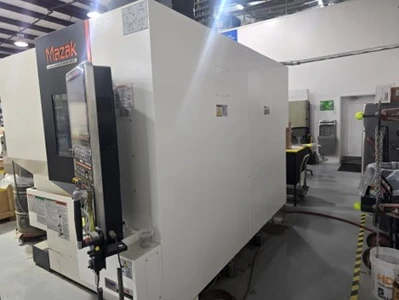

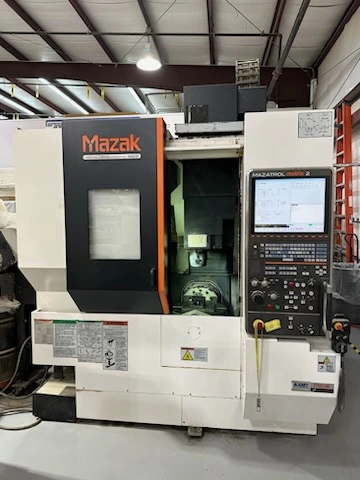

2014 MAZAK VCU-500A 5X

MATRIX 2 CNC CONTROL, 5-AXIS, #40, 12,000 RPM, TSC, 30 TOOLS, PROBES, CHIP

X-Axis: 21.85"
Y-Axis: 19.88"
Z-Axis: 20.07"
B-Axis: +/- 110 Deg
C-Axis: +/- 360 Deg
Spindle Speed: 12,000 RPM
Spindle Taper: CAT 40
Spindle Motor: 25 HP
Tools: 30
Rapid Traverse Rates: 945 IPM
Max Tool Diameter: 3.15" / 4.92"
Max Tool Length: 10.23"
Max Workpiece Size (Dia. / Hight): 19.68" x 12"
Max Workpiece Weight: 441 LBS
Machine Dimensions (L x W x H): 118.5" x 90" x 118"
Machine Weight: 11,000 lbs.
Spindle Nose to Table Top: 4.53" - 24.61"

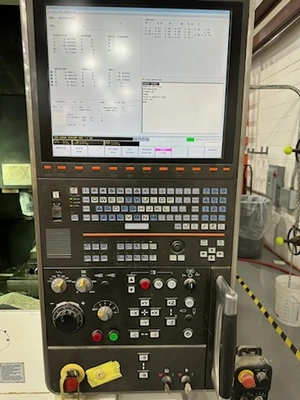

MAZATROL MATRIX 2 CNC CONTROL
19" Color TFT

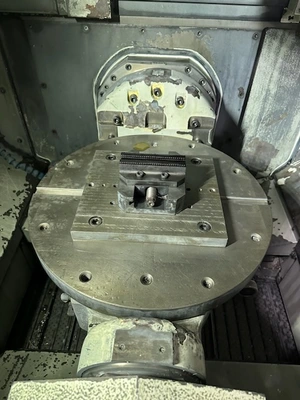

Integral Trunnion Rotary Tilt 5-Axis Table
Dual Probing Kit Renishaw RMP600 / RTS-AA
Hi-Pressure Coolant Thru Spindle (213 PSI)
12,000 RPM Spindle Speed
30 Position Tool Magazine
EIA/ISO Input
Ethernet
USB
Data I/O
User Macro
Mazak Tapping / Boring Tornado
Synchronized Tapping
Inverse Time Feed
Automatic Tool-Length Measurement
Sequence Number Comparison
Stop Function
Tilted Working Plane
Workpiece Coordinate System
Thread Cutting
Polar Coordinate Input
Direct Entry of Drawing Positions
EIA Pattern Cycle
MAZACC-2D Shape Compensation Software
MAZACC-3D High Speed Software Package
High Smoothing Control
Tool Radius Compensation
Work Setting Error Compensation
Absolute Encoder System
Operator Door Interlock
Remote Manual Pulse Generator
LNS Turbo Micro-Hinge 250 Chip Conveyor (Left Side Exit)
Manufacture Date June 2014
22 Power On Time
14,204 Auto Operation Time
0 Auto Cut Time
9932 Total Cut Time
22,396 Total Time
