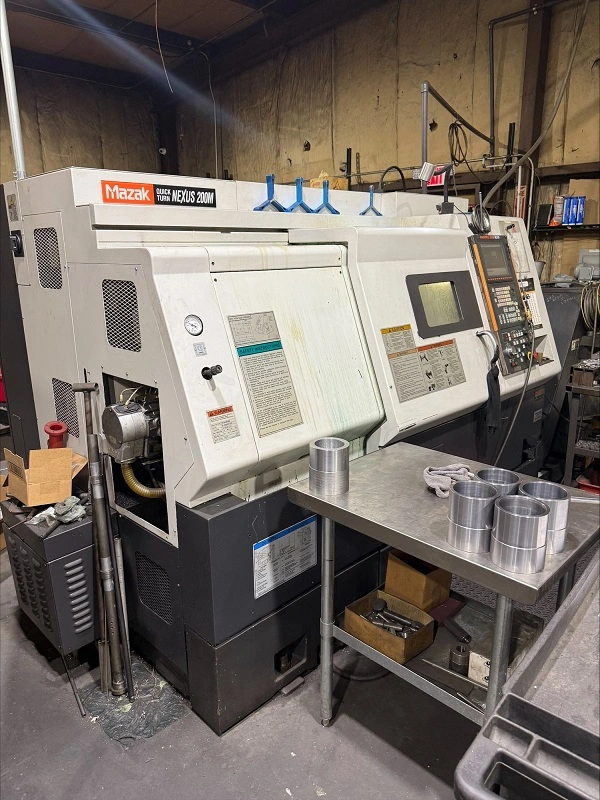

2004 MAZAK QUICK TURN NEXUS 200M
Overview
Description
Fusion 640T Nexus, 2" Bar, 8" Chuck, 12 Tools, 35 HP, 5000 RPM, Live Tooling, Tailstock, Tool Eye
Specifications
Chuck Size: 8"
Max Diameter Bar Capacity: 2"
Max Swing Over Bed / Carriage: 26.5" / 14.0"
Max Machining Length: 21.29"
Spindle Motor: 35 / 30 HP
Spindle Speed: 35 - 5000 RPM
Spindle Nose: A2-6
Spindle Bore: 3"

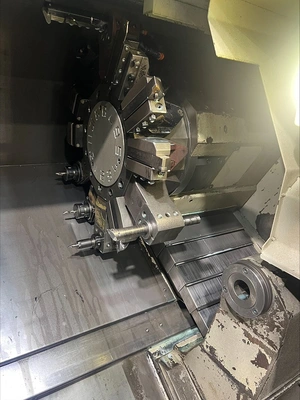

Tools: 12
Milling Motor: 7.5 HP
Milling Speed: 25 - 4500 RPM
Rapid Traverse Rates (X / Z): 1181 / 1299 IPM
X-Axis Travel: 9.05"
Z-Axis Travel: 22.63"
C-Axis Index: .001 Degrees
Turret Index (Single Step / Full): 0.2 / 0.6 Seconds
Machine Dimensions (L x W x H): 106.81" x 73.23" x 72.44"
Machine Weight: 10,000 lbs.
Max Turning Diameter (Max / Std): 14.75" / 10.87"
Spindle Torque: 258 ft. lbs.
Tailstock Taper: MT#5
Tool Change Time (Single / Full Step): 0.2 / 0.6 Seconds
Equipped With

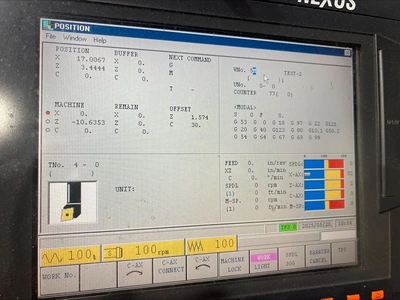

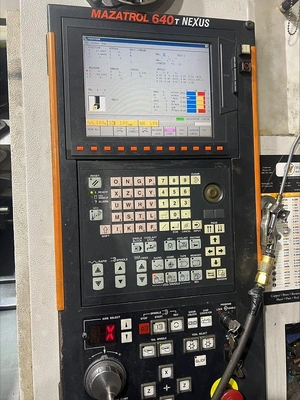

MAZATROL 640T Nexus CNC Control
12" Color LCD
PC/MCIA Interface
Conversational Programming

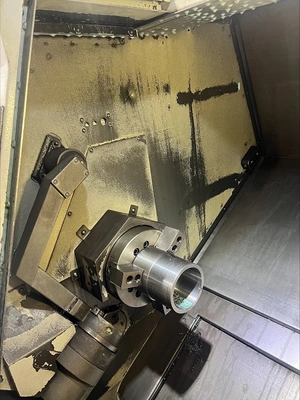

8" Hydraulic Chuck
C-Axis Live Tooling Capability
Chip Conveyor (Side Exit)
Programmable Tool Eye
Manual Tailstock with Hydraulic Quill
Color Graphic Display
Tool Life Management
(2) Live Holders
(4) Boring Bar Holders
(4) OD Wedge Blocks
Manufacture Date November 2004

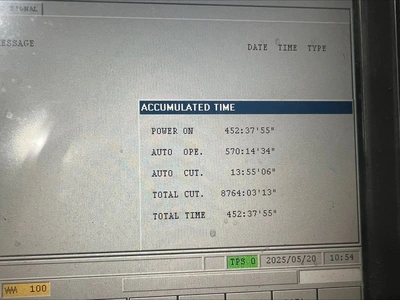

452 Power On Time
570 Auto Operation Time
13 Auto Cut Time
8764 Total Cut Time
452 Total Time
