2022 OKUMA MULTUS B250II-1SW/750 ARMROID

OSP-P300SA-H, 2.6" Bar, 8" Chuck, 5000 RPM, 30 HP, H1 Spindle, Y-Axis, Sub Spindle, Armroid A201 Robot, (6) Stations, Touchsetter, Chip Conveyor, Pristine

Chuck Size: 8"
Max Diameter Bar Capacity: 2.6"
Spindle Motor: 30 / 20 HP
Spindle Speed: 5000 RPM
Spindle Nose: A2-6
Spindle Bore: 3.15"
Tools: 60
Sub Spindle Chuck Size: 6"
Sub Spindle Motor: 15 / 10 HP
Sub Spindle Nose: 140 mm Flat
Sub Spindle Speed: 6000 RPM
Rapid Traverse Rates: (X & Z / Y / W) 1575 / 1023 / 787 ipm
X-Axis Travel: 19.69"
Z-Axis Travel: 31.5"
Y-Axis: 7.87"
C-Axis Index (Left & Right Spindles): .001 Degrees
Distance Between Spindles: 40.55"
H1 Index: 0.001 Degrees
H1 Spindle Speed: 50 - 12000 RPM
H1 Swivel: 225 Degrees
Max Tool Diameter: 3.54" / 5.12"
Max Tool Length: 7.87"
Max Tool Weight: 8.8 lbs.
Max Turning Diameter: 23.62"
W-Axis Travel (Sub Spindle): 31.89"

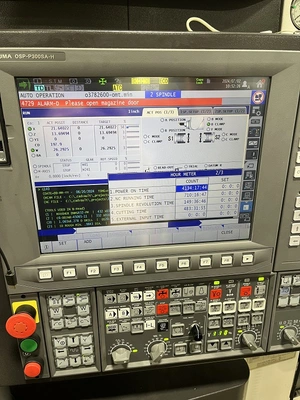

OKUMA OSP-P300SA-H CNC Control
12.1" Color TFT
USB Port
H1 Upper Tool Spindle
Programmable Sub Spindle
Kitagawa 8” BB208 Hydraulic Chuck Left
Kitagawa 6” B206 Hydraulic Chuck Right
NC B-Axis with Contouring (0.001 Degrees)

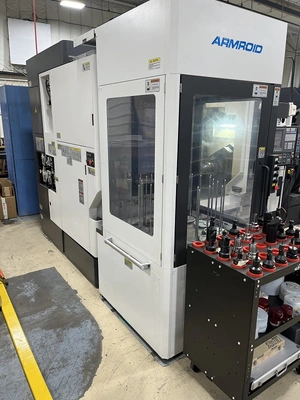

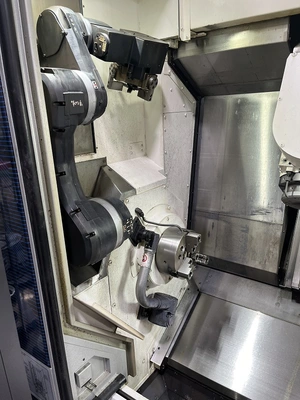

Armroid A201 Robot 3-Jaw Spec
Work Stocker 6 Station Lift Up Type
End Effector Stocker 3 Station
End Effector Work Support Roller
5-Axis Machining Kit
High Precision C-Axis Both Spindles
Spindle Motor Upgrade 30 HP Left
60 Tool Magazine (Capto C6)
Auto Gauging Renishaw RMP600 RMI-Q Capto C6
Renishaw Inspection Plus Software with GUI - Lathe
Y-Axis Gauging with Slope Gauging
Z-Axis Auto Zero Offset Function Both Spindles
C-Axis Auto Zero Offset Function Both Spindles
Touchsetter Auto Touch Sensor Gauging Interface Renishaw RMI-Q
Lathe Tool Index Function Multi Edge 12 Position

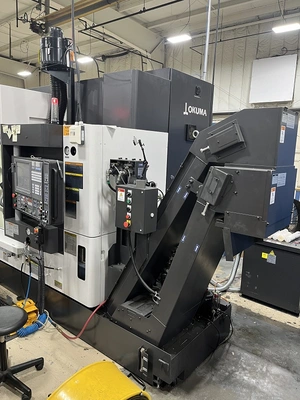

Chip Conveyor Right Discharge Drum Filter High 750
C-Axis Torque Skip Function Both Spindles
Constant Surface Speed for Y-Axis
Additional Light OKUMA Logo
Coolant Splash Gun
Lubrication Monitor B-2
User Task III
10 MB Program Cap
Three Color Tower Light
Lathe Tool Index
Lathe Tool THD Clamp
Tool Clamp Output Hold
HI-G Control
PFC II
(10) Sets Work Coordinates
(500) Sets Tool Offsets
One Touch IGF Advanced
Tape Data In / Out
Home Position B
Plane Conversion
Profile Generation
Synchronized Tapping
Helical Cutting
Slant Cutting
Home Position
Spindle Fluctuate
NC Torque Limiter
GM Code Macro
Center Compensation
Tool Center Control
Super-NURBS Hi
Super Hi-NC
Super-NURBS Rac
Inverse Time Feed
G00 Linear Feed
B-Axis Interpolation
Turret Position Clamp
0.0001M Control
Lap 4
Nose Radius 2B
User Task 3
Expanded Auto Chamfer
Arc Thread Cutting
C Zero Offset
Y Gauging
Optical Sensor
Pitch Error Compensation
Tool Life Management
Tool Wear Compensation
Tool Offset System
Inch / Metric Switchable
Cycle Time Calculation
NC Work Counter
Cycel Time R New
NC Work Monitor
Cycle Time Check
Load Monitor
Mac Man
DNC T-1
DNC DT
Hi-Cut Pro
Thermal Compensation L2
Spindle Orientation
M-Axis Orient
Spindle Max IL
Coordinate Conversion
Coordinate Calculate
Program Message
Custom-API
Use Tool Display
Machining Mode
Nose-R Direction Change
Base Operating System
Tool Mac Information
Offset Base Fix
Axis Active Stop
Variable Lost Motion
Servo Navi L
CE Marking
CE Marking Stop
New Operation Panel
Servo Link NC
Servo Link Spindle
Not New R Spec
Collision Avoidance System
Program Help
Help
3D Animation
Animation
Y-Mode Touch Setter
3D Coordinate Conversion
Hi-Speed Restart
Sup VL Dip Reg
Robot Dandori Display
Cycle Mode Set
Short Rapid Droop
EES Motor
Con Back Spindle
Super Easy Set
Tool Direction
Tool Direction Compensation
TCPC Machine Co
TCPC Sub Spindle
Super Prof Gene
Rapid Feed Speed Set
Work Weight Set
C-Axis Manual Coordinate
SDF Separate NC
SDF Separate SP
MFU
Spindle Collision Detection
Rotary Notch Fil
Gather Aging
Machine Diagnostics
Eco Suite
Eco Suite Plus
OSP Suite
Thermal Compensation OilCon
Mac Time Short
Spindle Out Monitor
Suite Without Widget
Remaining Time Display
Chuck Grasp Confirmation
Y-Axis Turning
Easy Operation Panel
Multi Operation Panel
EOP Animation Scale-Up
Base Zero Z V Measure
Road TCP
Adjustable Path Align
Position Smoothing
Coolant Level Check
Safety Tape SW
Chuck IL RLS
2 Chuck PDL 1SP
2 Chuck PDL 2SP
Oil Cooler Alarm A
Ex Brake Release
Spindle Orientation Electric
First Spindle Oil Cooler
Second Spindle Oil Cooler
Coolant Through Spindle
M-Axis Orientation
B-Axis Position LOMP
ATC Type H
Mechanical Lock Door 1
Override Special
Load Monitor
Air Pressure Detection
Program Stop Special
Oil Level Detection
Thru Airblow IL
B-Panel
OSP Chip Convere
High Pressure Coolant Unit 3
C-Axis Brake Torque Limiter
Coolant L/M Change
Touch Setter
Touch Setter Motor
Touch Sensor
Optical Sensor
Door IL S
Auto Door
DnC-B
Chip Conveyor Check
Portable PH
B-Axis Turret
Turret Type H1
TR Pendulum Control
B-Axis Interpolation
Slant-Y Axis
MG Door Mechanical Lock
NC Turret with Brake
New CEMK
Thermal Oil Cooler
EE Manual Change
Armroid Client
EES Type-B
Armroid CO Hand
First Spindle C Gain Cut
Second Spindle C Gain Cut
PH Type B
Spindle Diagnostics
Manufacture Date May 2022
New Replacement Cost $731,151
4134 Power On Time
710 NC Running Time
149 Spindle Revolution Time
483 Cutting Time
