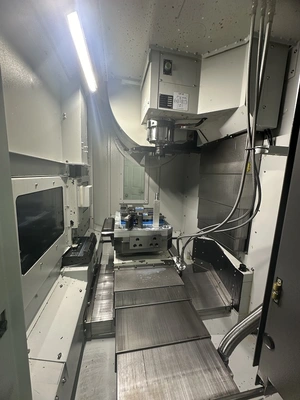

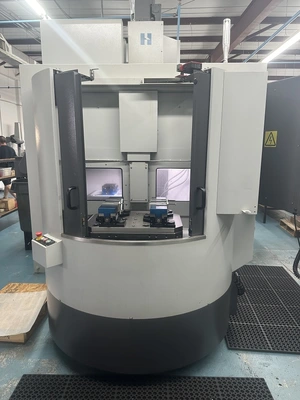

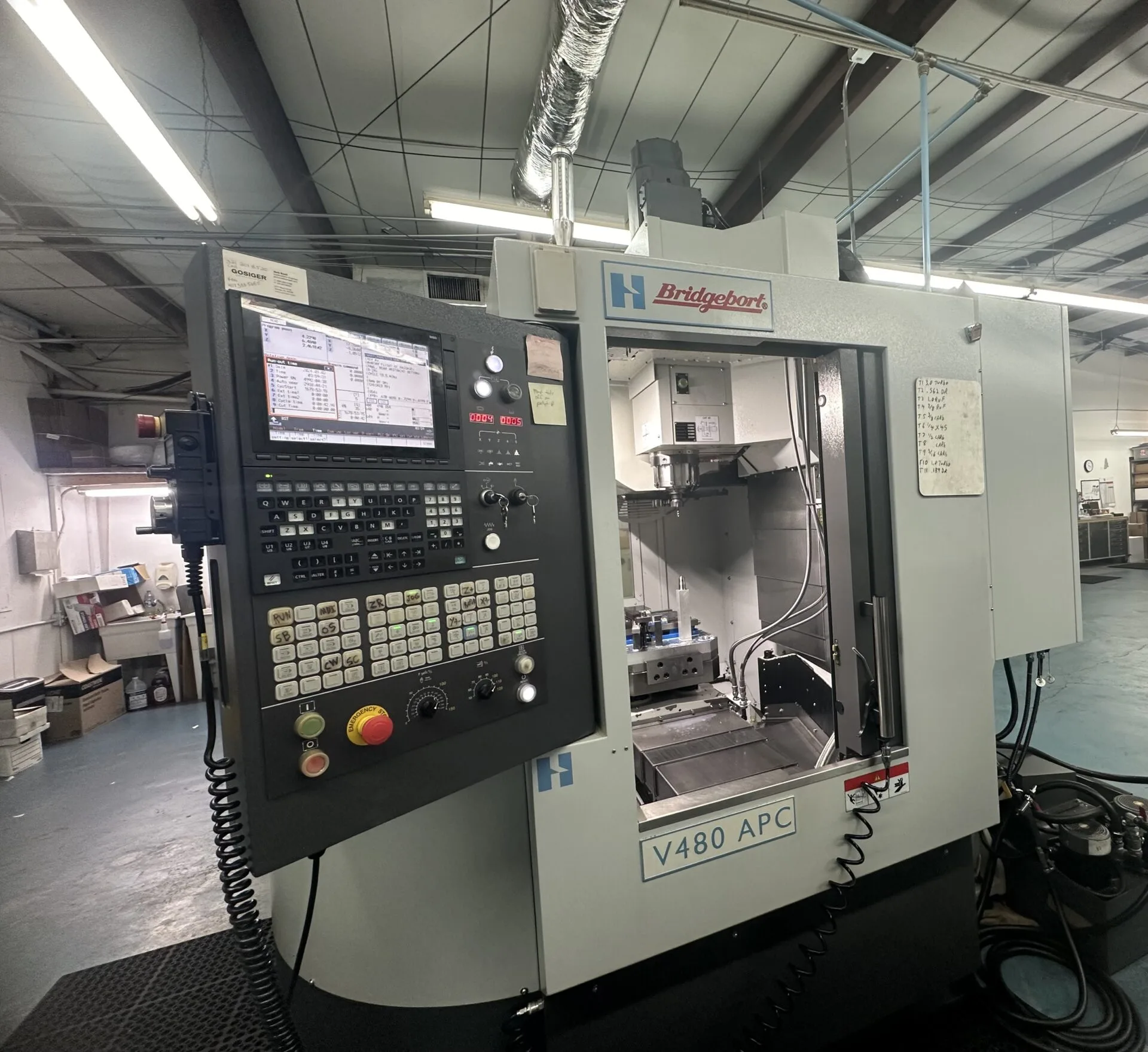

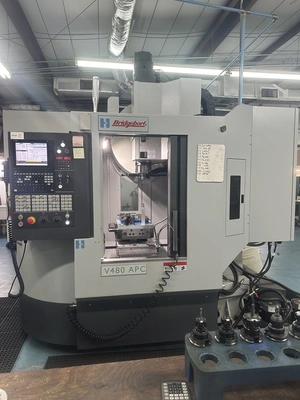

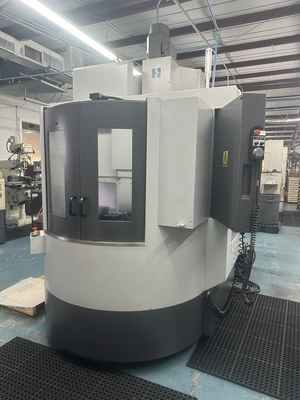

2020 HARDINGE V480 APC

Mitsubishi M80 CNC Control, (2) 23.6" X 15.8" Pallets, #40, 10,000 RPM, Chip

X-Axis Travel: 18.9"
Y-Axis Travel: 15.75"
Z-Axis Travel: 16.9"
Table Size: 23.6" x 15.8" (2)
Spindle Speed: 10,000 RPM
Spindle Taper: CAT 40
Spindle Motor: 10 / 7.5 HP
Tools: 30
Rapid Traverse Rates: 1417 IPM
Max Tool Diameter: 2.95"
Max Tool Length: 7.28"
Machine Dimensions (L x W x H): 70.86" x 109.37" x 87.63"
Machine Weight: 9833 LBS
APC Change Time: 8-10 Seconds
Spindle Nose to Table Top: 8.85" - 25.7"

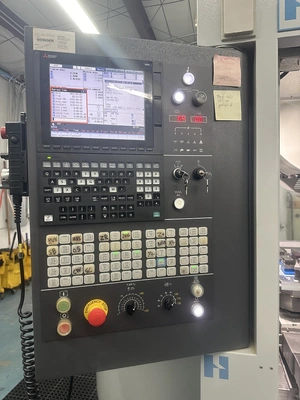

MITSUBISHI M80 CNC Control

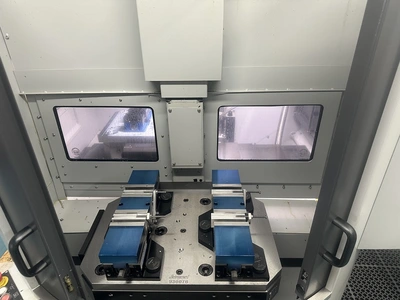

Spin Type Automatic Pallet Changer
30 Position Side Mount Automatic Tool Changer
Remote Jog Handle
Chip Flush System
Manual Chip Wash Gun
Thru Spindle Coolant Interface
4th Axis Interface
Hinge Type Chip Conveyor
4992 Power On Hours
2938 Auto Operation Hours
1678 Cycle Start Hours
