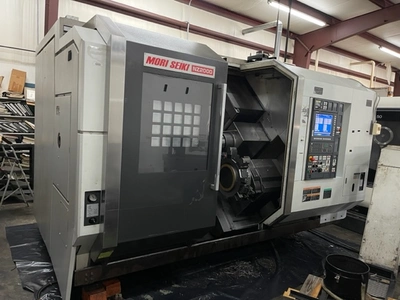

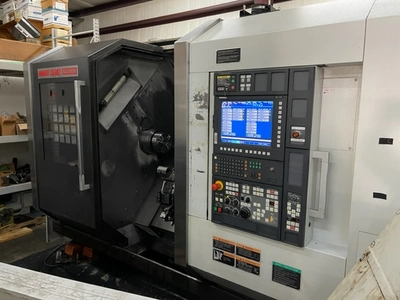

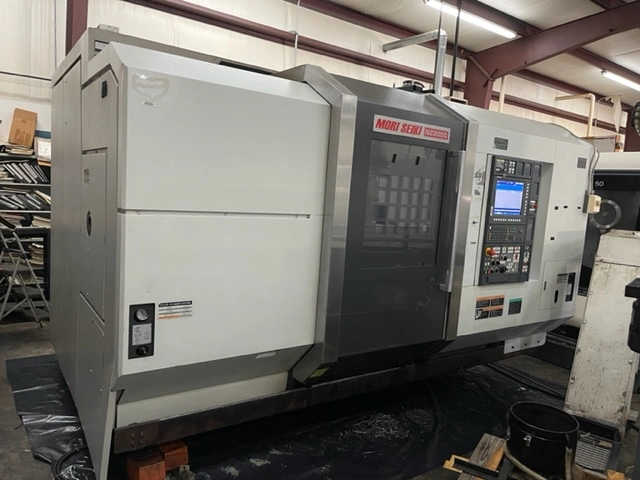

2008 MORI SEIKI NZ-2000T2Y

MSX-701, 2.5" Bar, (2) 8" Chucks, 5000 RPM, 16/16 Tools, 33HP, Upper & Lower Turrets, Twin Opposed Spindles, Y-Axis, Chip

Chuck Size: 8" (2)
Max Diameter Bar Capacity: 2.5"
Max Swing Over Bed: 31.5"
Turning Diameter (Max / Std): 12.5" / 7.9"
Max Machining Length: 31.9"
Spindle Motor (L & R): 33.3 / 29.3 HP
Spindle Speed (L & R): 5000 RPM
Spindle Nose (L & R): A2-6
Spindle Bore (L & R): 2.9"
Tools: 16 x 2 (All Live)
Milling Motor: 10 HP
Milling Speed: 6000 RPM
Sub Spindle Travel: 36.2"
Rapid Traverse Rates (X / Z): 1181 / 1968 IPM
X-Axis Travel (Upper & Lower Turrets): 8.3"
Z-Axis Travel (Upper & Lower Turrets): 31.9"
Y-Axis Travel: 4.3"
C-Axis Index (Left & Right Spindles): .001 Degrees
Machine Dimensions (L x W x H): 154.7" x 145" x 91.3"
Machine Weight: 18,000 lbs.
Distance Between Spindles: 44.4"

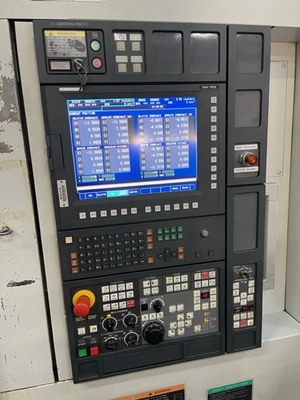

MORIC MSX-701 III CNC CONTROL
15" Color TFT

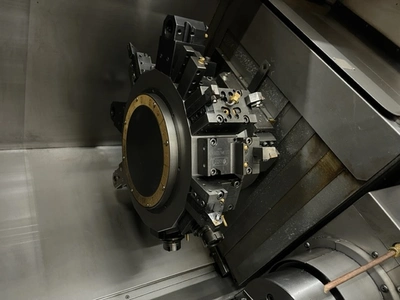

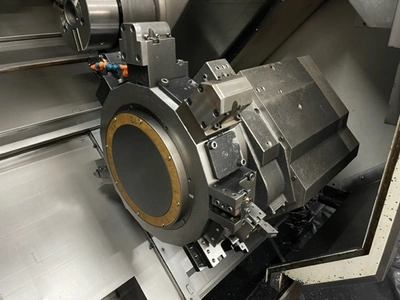

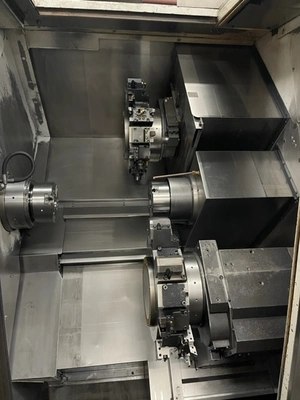

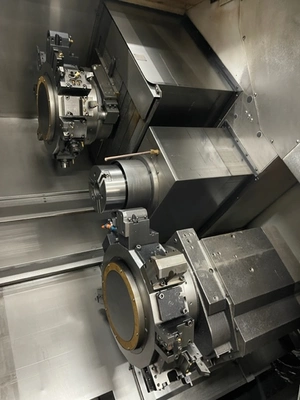

Upper & Lower Turrets with Twin Opposed Spindles

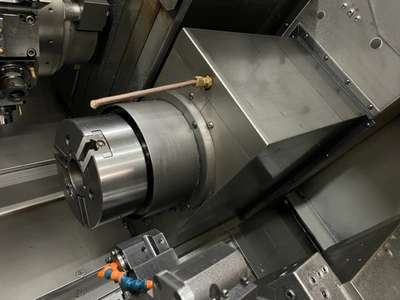

8" Hydraulic Chucks on Left and Right Spindles
Y-Axis Live Tooling in Upper Turret
Live Tooling on Lower Turret
CAPPS Conversational Programming

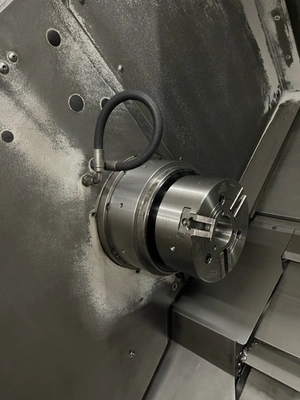

8" Hydraulic Chuck for Left and Right Spindle
High Pressure Coolant
Chip Conveyor (Side Exit)
(7) Face Live Holders
(2) OD Live Holders
(8) Boring Bar Holders
(8) Turning Holders
(4) Double Turning Holders
(1) Double Boring Bar Holder
Manufacture Date September 2008

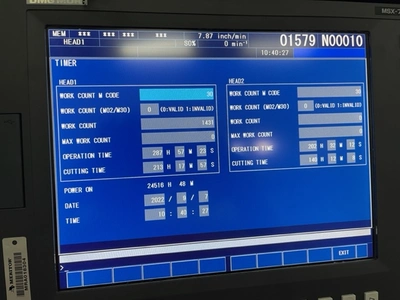

24,516 Power On Time
287 Operation Time
213 Cutting Time
