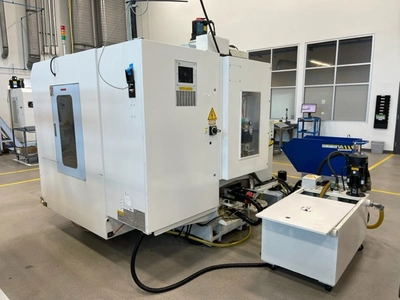

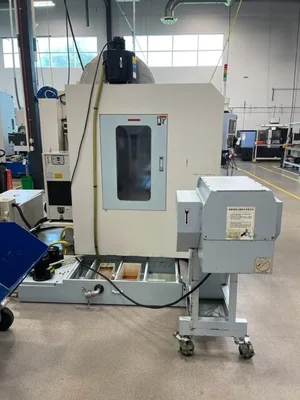

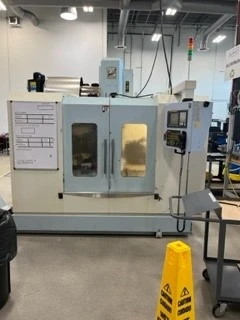

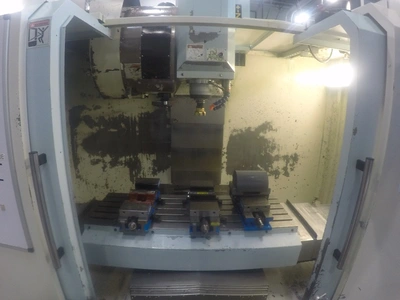

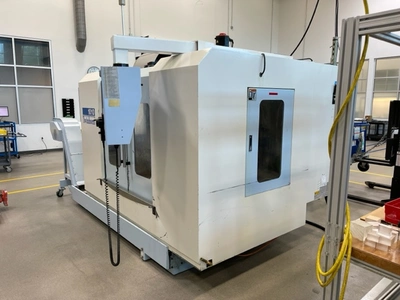

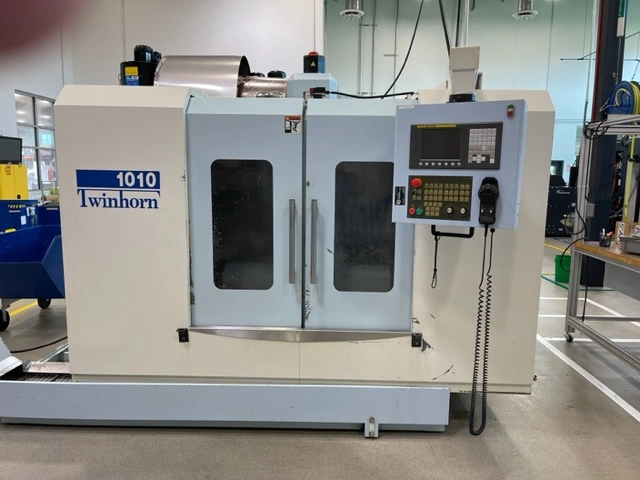

2010 TWINHORN VH-1010

Fanuc 0i-MD, 40.20.20", 8000 RPM, 30 SMTC, 20 HP, Cat 40, TSC, Fourth Axis, Box Ways, Chip Conveyor, Mist Collector

X-Axis: 39.76"
Y-Axis: 19.7"
Z-Axis: 20.47"

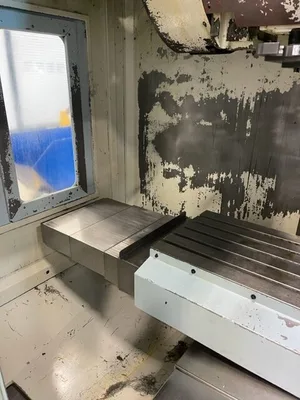

Table Size: 47.24" x 17.71"
Spindle Speed: 8000 RPM
Spindle Taper: CAT 40
Spindle Motor: 20 / 15 HP AC
Tools: 30
Table Load Capacity: 1320 lbs.
Rapid Traverse Rates: 787 IPM
Max Tool Diameter: 3.23" / 4.92"
Max Tool Length: 11.8"
Max Tool Weight: 15.4 lbs.
Machine Dimensions (L x D x H): 117" x 91" x 97"
Machine Weight: 12,000 lbs.
Spindle Nose to Table Top: 4.72 - 25.6"

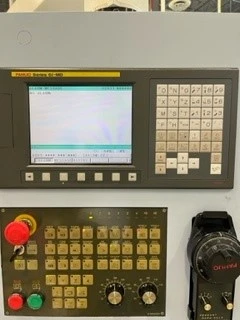

FANUC 0i-MD CNC Control
10.4" Color LCD
USB Port
Through Spindle Coolant (250 psi)
Chip Conveyor (Front Left Exit Hinge Type)
30 Position Side Mount Tool Changer

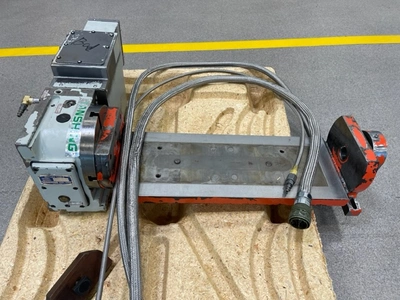

Tanshing VRNC-210 Fourth Axis Rotary Table
Horizontal Fixture Plate with Bearing Support

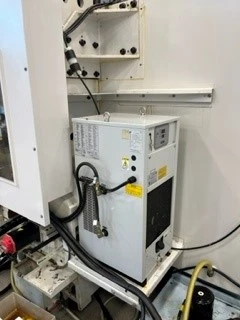

Spindle Chiller Unit
Rigid Tapping
Remote Jog Handle
Base Coolant Wash System
Three Color Tower Light
Auto Power Off
Spindle Air Blast
Mist Collector
Two Speed Gearbox
Heavy Duty Box Way Construction
Manufacture Date June 2010
