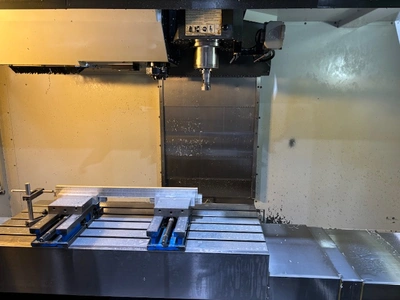

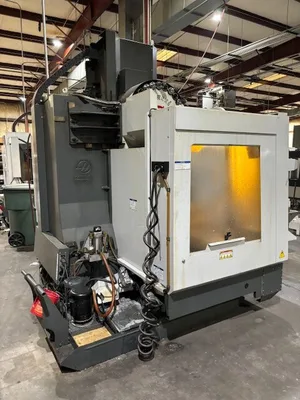

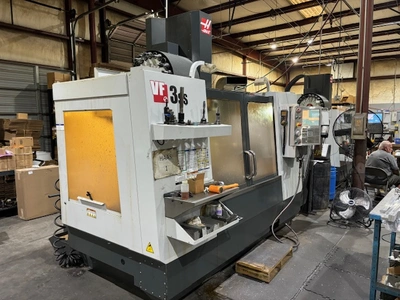

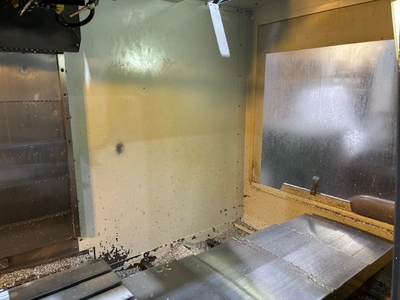

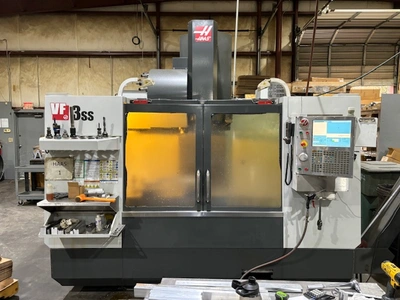

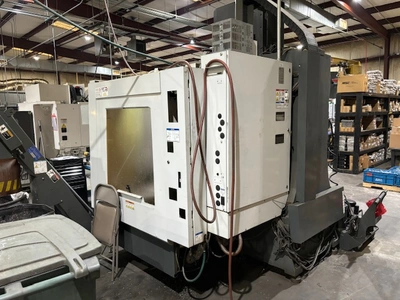

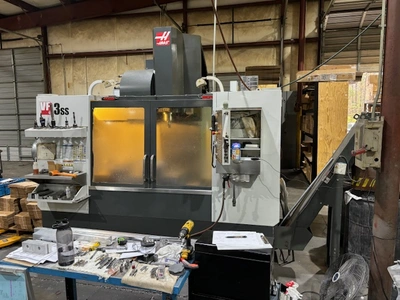

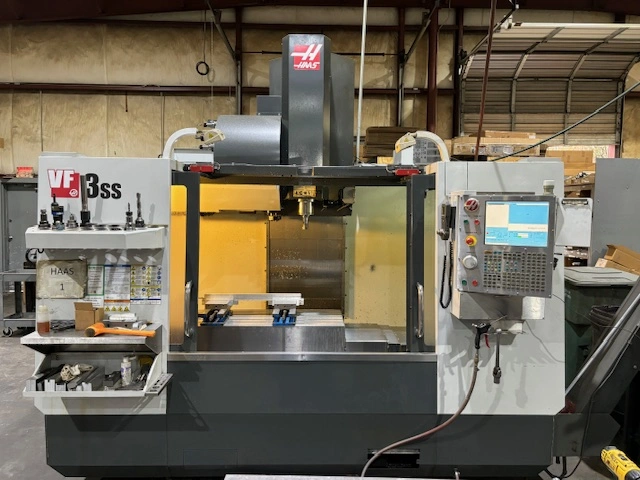

2011 HAAS VF-3SS

40.26.25", 12,000 RPM, Cat 40, 24 SMTC, 30 HP, TSC 300 psi, Programmable Coolant, High Speed Machining, Chip Conveyor

X-Axis: 40"
Y-Axis: 20.0"
Z-Axis: 25"

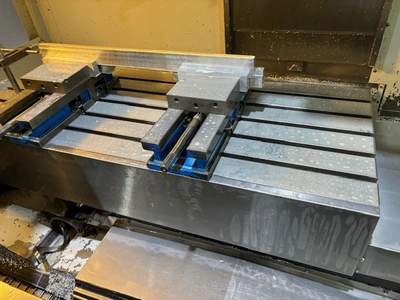

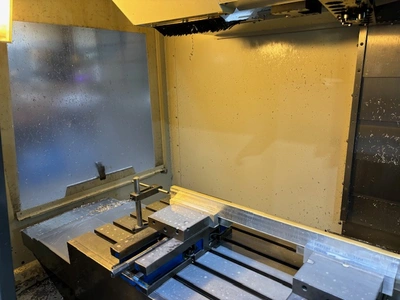

Table Size: 48" x 18"
Table Size: 54" x 25"
Spindle Speed: 12,000 RPM
Spindle Taper: CAT 40
Spindle Motor: 30 HP
Tools: 24
Table Load Capacity: 1750 lbs.
Rapid Traverse Rates: 1400 IPM
Max Tool Diameter: 2.5" / 5"
Max Tool Length: 13"
Max Tool Weight: 12 lbs.
Machine Dimensions (L x W x H): 156" x 102" x 125"
Machine Weight: 12,000 lbs.
Spindle Nose To Table Top: 4.5" to 29.5"

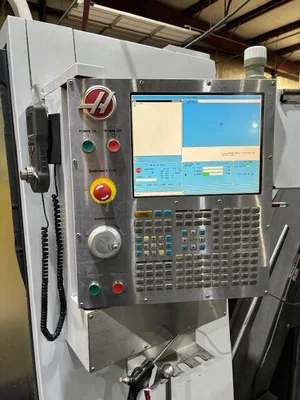

HAAS CNC Control
12" Color LCD
USB Port
Through Spindle Coolant (300 psi)
24 Position Side Mount Tool Changer

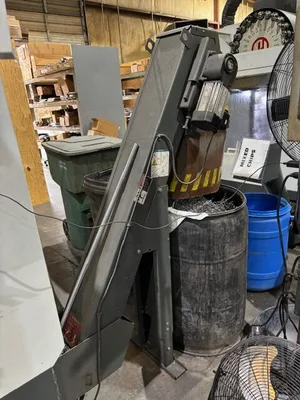

Multi-Auger Chip Conveyor
12000 RPM Spindle Speed
Programmable Coolant Nozzles
High Speed Machining
Remote Jog Handle
High Intensity Lighting
Rigid Tapping
55 Gallon Coolant Tank
Green Work Indicator Light
Tool Shelves
Manufacture Date May 2011
