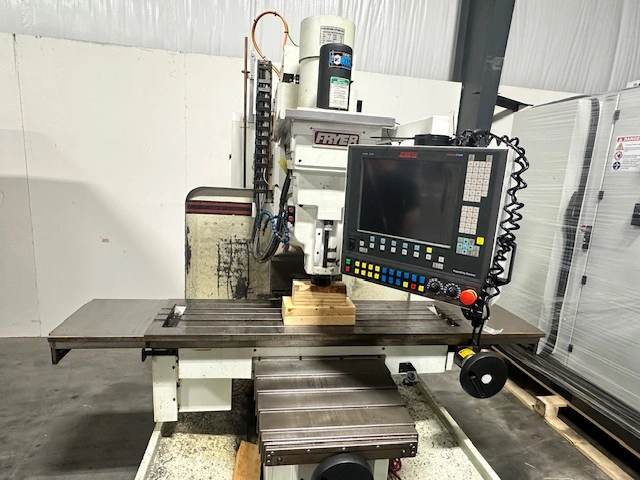

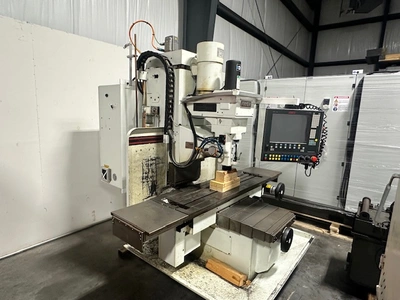

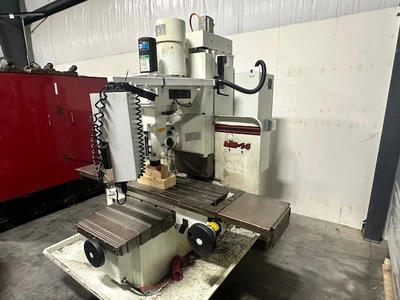

2012 FRYER MB-14Q

Siemens 840D, 40.20.21 CNC Bed Mill, CAT 40, 4500 RPM, 2 Speed Gearbox, 90 Degree Tilt, 6" Quill, CNC & Manual Mode

B-Axis (Head Swivel): +/- 90 Degrees
Machine Dimensions (L x W x H): 113" x 76" x 96"
Machine Weight: 6000 lbs.
Quill Diameter: 4.125"
Quill Travel: 6"
Rapid Traverse Rate: 400 IPM
Spindle Motor: 10 HP
Spindle Nose to Table Top: 5" - 26"
Spindle Speed: 4500 RPM
Spindle Taper: CAT 40
Spindle Torque (High / Low): 35 ft. lbs. / 238 ft. lbs.
Table Load: 2450 lbs.
Table Size (L x W): 54" x 16"
X-Axis Travel: 40"
Y-Axis Travel: 20"
Z-Axis Travel: 21"

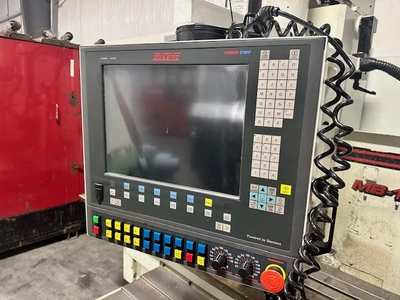

FRYER TOUCH 2100 (SIEMENS 840D) CNC CONTROL
CNC and Manual Mode
Kurt Power Draw Bar
6" Quill
90 Degree Head Tilt
2 Speed Gearbox
Flood Coolant

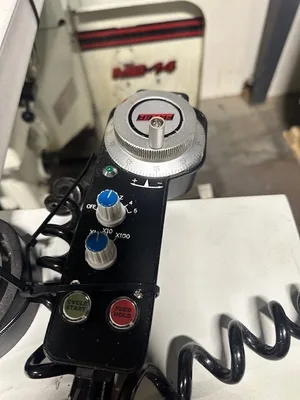

Remote Jog Handle
Manufacture Date August 2012
