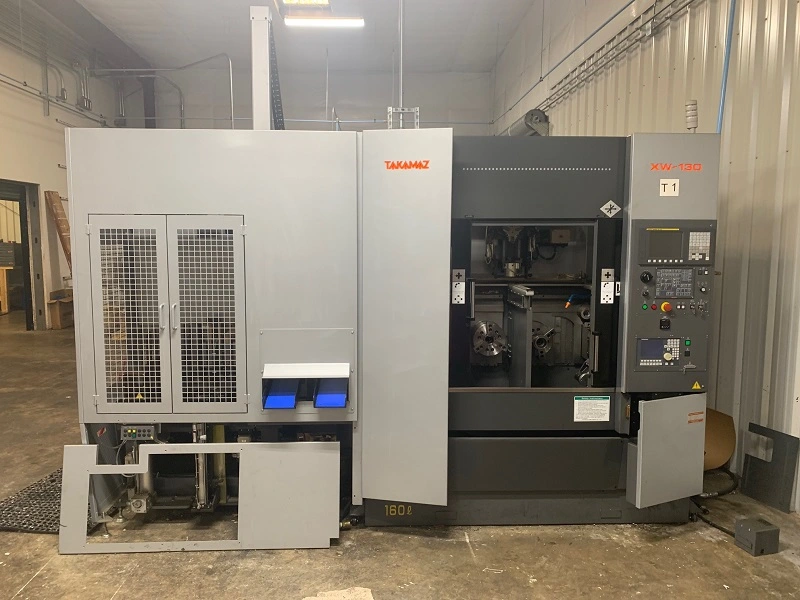

2015 TAKAMAZ XW-130

FANUC 0iTD, 8" Chucks (2), 4000 RPM, 15 HP, 8 Tools (2), 10 Station Stocker, Part Turnover, Chip Conveyor

Chuck Size: 8" (2)
Spindle Motor: 15 / 10 HP (2)
Spindle Speed: 4000 RPM
Spindle Nose (L & R): A2-6
Tools: 8 (2)
Rapid Traverse Rates: 945 IPM
X-Axis Travel: 5.91"
Z-Axis Travel: 6.3"
Machine Weight: 12.250 lbs.
Loader Max Diameter: 5.9"
Loader Max Weight: 6.6 lbs x 2
Loader Rapid Traverse (X Y Z): 1400 / 700 / 500 ipm
Max Turning Diameter: 11"
Max Turning Length: 6.1"
Spindle Bearing ID: 3.93"

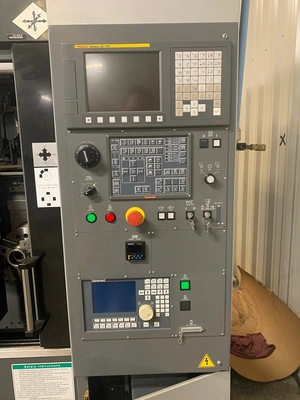

FANUC 0i-TD CNC Control
10.4" Color LCD
USB Port

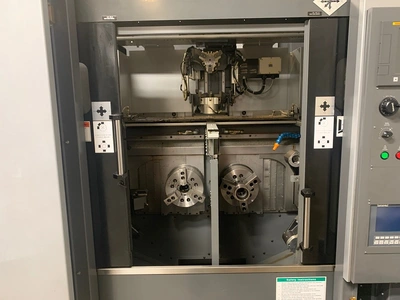

Twin Adjacent Spindles & Turrets
GTH150 Gantry Loader with Dedicated L Hand (OP 10/10 or 10/20)

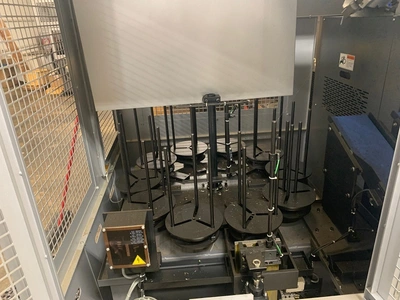

10 Station Rotary Stocker (IN / OUT)
Part Turnover Station
(2) 8" Kitagawa B208 Hydraulic Chucks
(2) 8 Position Turrets
Spindle Chiller Unit
Thread Cutting Device
Air Blow Device
Three Color Tower Light
Chip Conveyor (Hinge Type Rear Exit)
(4) Boring Bar Holders
(4) Turning Holders
Trochoid Pump (350 psi)
Coolant Through Spindle Flushing
Manufacture Date December 2015
1255 Power On Time
160 Operating Time
320 Cutting Time
