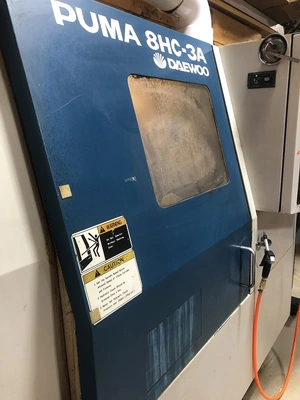

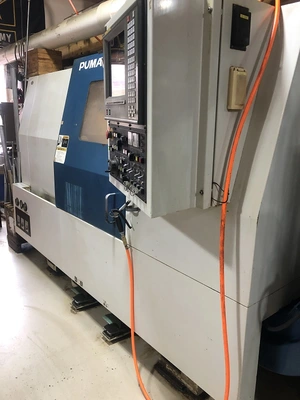

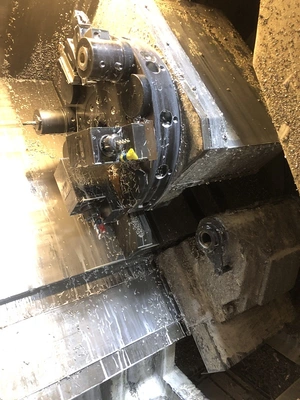

1995 DAEWOO PUMA 8HC-3A

Fanuc 16T, 2" Bar, 8" Chuck, 4000 RPM, 12 Tools, 20 HP, Live Tooling, Chip Conveyor, Tailstock, (2) Collet Chucks, Loaded with Tooling

Chuck Size: 8"
Max Diameter Bar Capacity: 2"
Max Swing Over Bed / Carriage / Cover: 26.8" / 20.1" / 17.5"
Max Swing Over Bed: 19.68"
Max Machining Length: 20.7"
Spindle Motor: 25 / 20 HP
Spindle Speed: 40 - 4000 RPM
Spindle Nose: A2-6
Spindle Bore: 2.4"
Tools: 12
Rapid Traverse Rates (X / Z): 472 / 630 IPM
X-Axis Travel: 8.3"
Z-Axis Travel: 21.65"
Machine Weight: 9900 lbs.
Live Tool Motor: 5 HP
Live Tool Speed: 3000 RPM
Max Turning Diameter: 14.8"
Tailstock Taper: MT#4

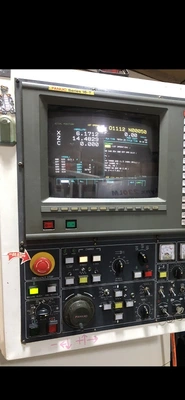

FANUC 16T CNC Control
14" Color CRT

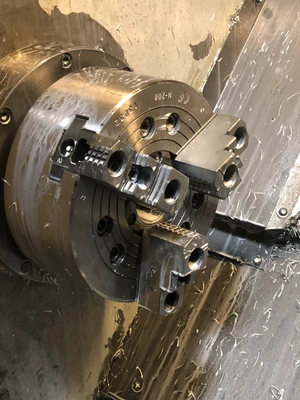

8" Hydraulic Chuck

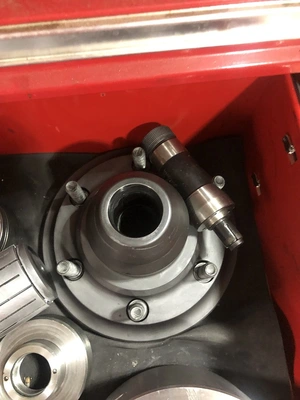

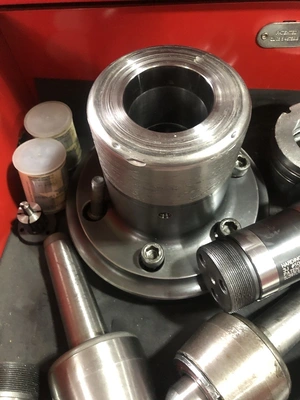

3J and 5C Collet Chucks
Live Tooling Capability
Programmable Tailstock

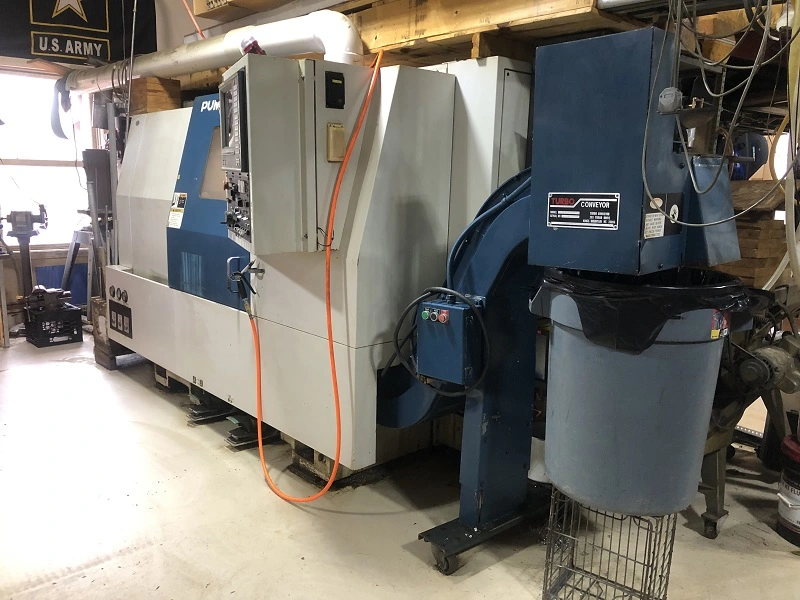

Turbo Chip Conveyor (Hinge Type Side Exit)
(3) OD Live Holders
(3) Face Live Holders
(6) Boring Bar Holders
(9) Turning Holders
(1) Facing Holder
Manufacture Date May 1995

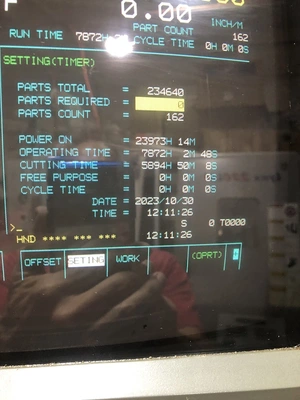

23,973 Power On Time
7872 Operating Time
5894 Cutting Time
Slant Bed Box Way Construction
