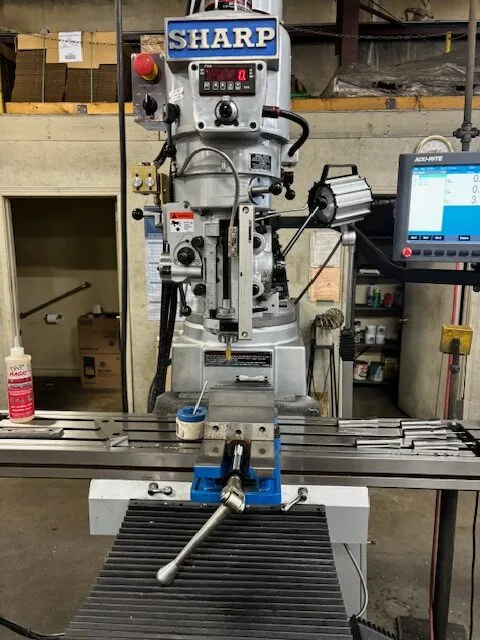

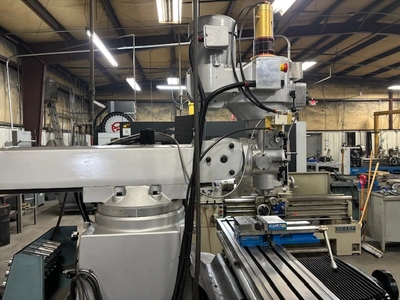

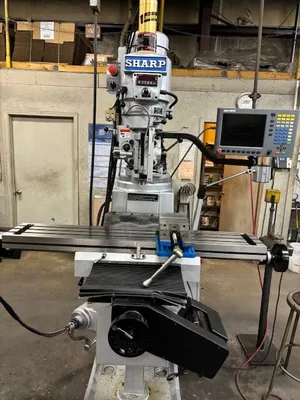

Acu-Rite Millpwr G2 CNC Control, 2-Axis CNC, 3.5" Quill, 31.15.5, R8 Spindle Taper, 4500 RPM, 90 Degree Tilt
X-Axis Travel: 31"
Y-Axis Travel: 15.5"
Z-Axis Travel: 5"
Table Size: 54" x 10"
Spindle Speed: 4500 RPM
Spindle Taper: R8
Spindle Motor: 3 HP
Machine Weight: 2860 LBS
Dimensions (L x W): 84.96" x 79.92"
Head Tilt (L / R): 90 Deg.
Head Tilt (Up / Down): 45 Deg.
Knee Travel: 15.3"
Quill Diameter: 3.5"
Ram Travel: 18.5"
Spindle Center to Column: 9.8" - 28.3"
Spindle Nose to Table Top: 1.6" - 16.9"

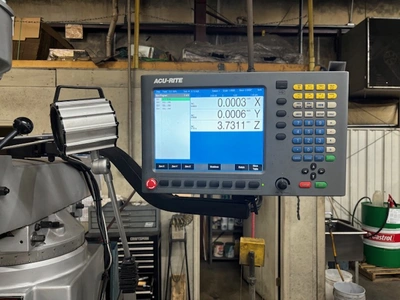

ACU-RITE MILLPWR G2 CNC CONTROL
10" Color LCD Screen
USB Interface
RS232 Interface
2-Axis (X & Y) CNC Control
2-Axis Ball Screws and Servo Drives
3-Axis Digital Readout
Safety Handwheels
Auto Lube System
Cross Way Cover
Halogen Work Light

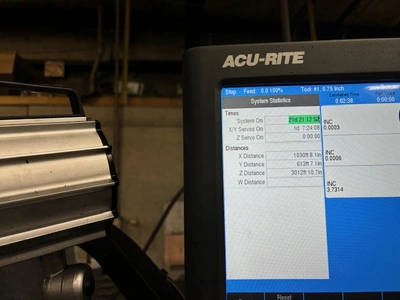

21d 21:12:52 System On Time
1d 7:24:08 Servo On Time
