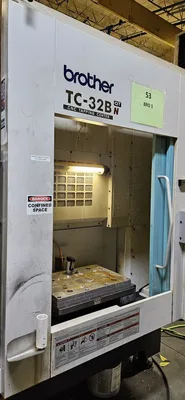

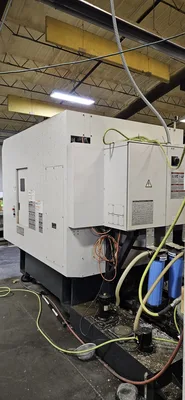

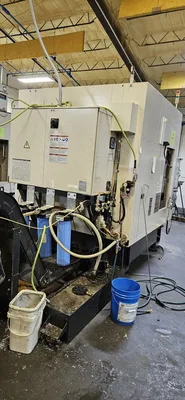

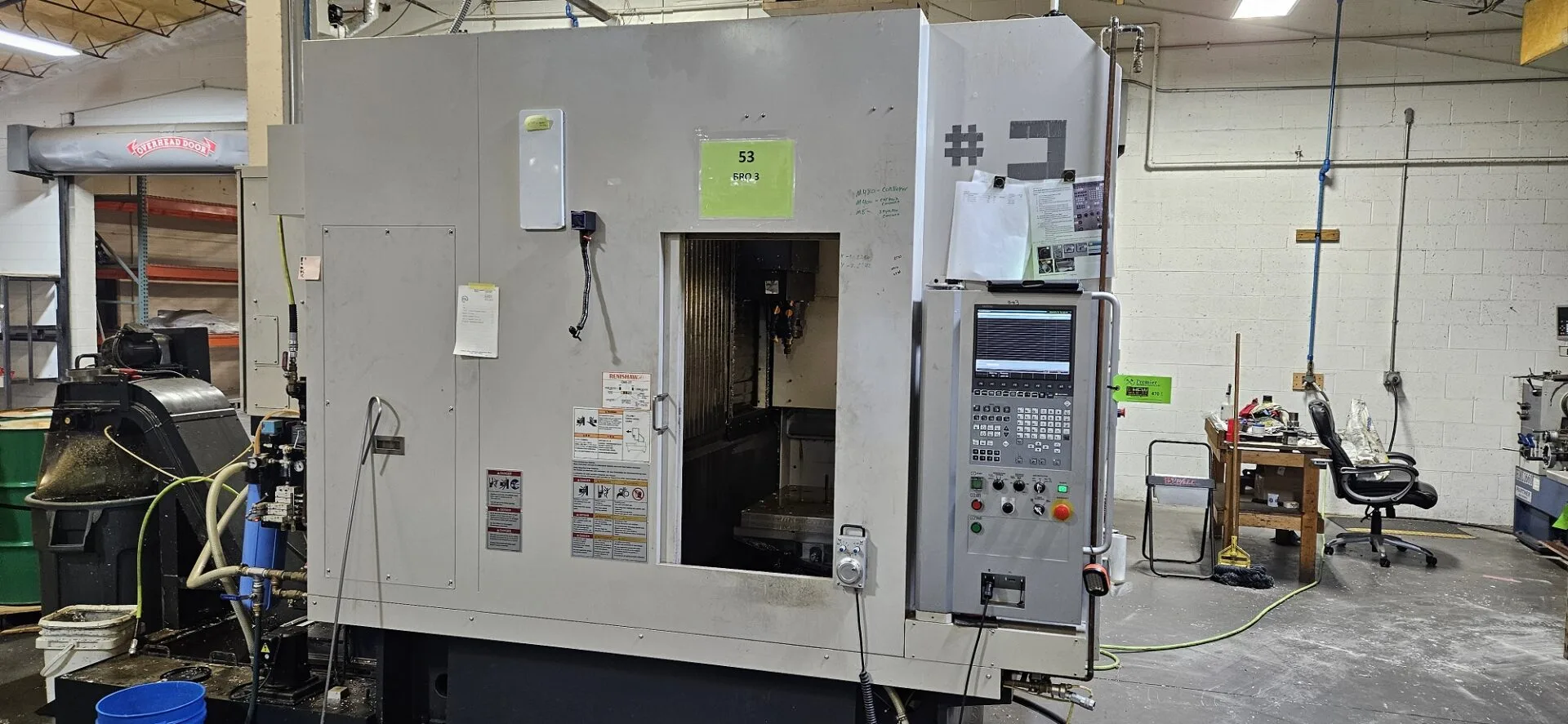

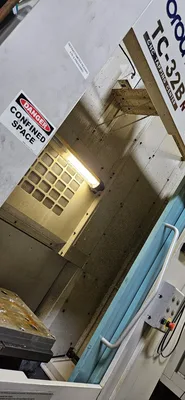

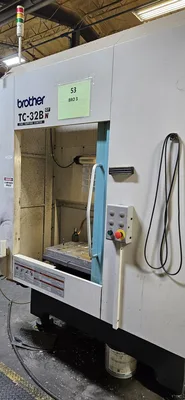

2008 BROTHER TC-32B QTN

CNC-A00, 22.16.16", 16000 RPM, BT30, 26 Tools, 10HP, Probes

X-Axis: 21.7"
Y-Axis: 15.7"
Z-Axis: 16.3"
Table Size: 23.6" x 16.7" (2)
Spindle Speed: 16,000 RPM
Spindle Taper: BT 30
Spindle Motor: 10 / 7.3 HP
Tools: 26
Table Load Capacity: 441 lbs. x 2
Rapid Traverse Rates: 2756 IPM
Max Tool Diameter: 4.92"
Max Tool Length: 7.9"
Max Tool Weight: 7.7 lbs.
Machine Weight: 9920 lbs.
Pallet Change Time: 3.4 Seconds
Spindle Nose to Table Top: 7.9" - 24.2"
Tool Change Time (T - T / C - C): 0.9 / 2.0 Seconds

BROTHER CNC-A00 CONTROL
12.1" Color LCD
Conversational or G-Code Programming
Auto Two Pallet Changer (Spin Type)
Renishaw Tool and Touch Probe
(26) Position Side Mount Tool Changer
Remote Manual Pulse Generator
Three Color Tower Light

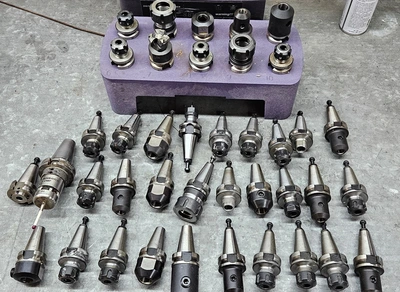

Approximately 40 BT30 Tool Holders
Chip Conveyor
Manufacture Date September 2008
